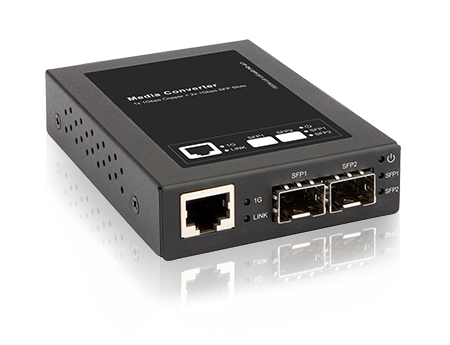

1-Port 1G Media Converter – 1GBase-T(1) to 1GBase-X SFP(2) (LC, MM/SM)



The 1 x 10/100/1000Base-T(X) to 2 x 1000Base-SX/LX SFP Slots Media Converter provides reliable and flexible Gigabit Ethernet conversion between copper and fiber networks. It features one 10/100/1000Base-T Gigabit Ethernet port and two SFP slots supporting either multimode or single-mode fiber modules, compliant with IEEE 802.3ab and IEEE 802.3z standards. The device supports RJ-45 to SFP and SFP to SFP conversion modes, with the copper port offering full-duplex operation, auto-negotiation, and Auto-MDI/MDI-X for seamless integration. Designed for advanced network performance, it has a compact, fanless metal housing, robust power protection, and certified safety compliance for dependable operation in demanding environments.





  • Category: Media Converters
  • SKU: CMC-GC2F-XXXX
Download to PDF

Overview

Product Features

Connection Diagram

Downloads

The CMC-GC2F Gigabit Ethernet Media Converter enables flexible network extension by supporting two operation modes: conversion between 1Gbps copper Ethernet (RJ-45) and 1Gbps fiber via SFP slot, or conversion between two SFP fiber interfaces (SFP to SFP). It complies with IEEE 802.3ab and IEEE 802.3z standards, supports auto-negotiation, VLAN tagging, Jumbo Frames up to 16KB, and Link Fault Pass-Through (LFP) for improved diagnostics. Designed with a compact, fanless metal housing and low power consumption (3W), it offers reliable performance with built-in surge and ESD protection. Certified by CE, FCC, and UKCA, it ensures stable operation in various deployment scenarios.CMC-GC2F-XXXX

Key Features

·       Compliant with IEEE 802.3ab 1000BaseT and IEEE 802.3z 1000BaseSX/LX standards

·       1 x 10/100/1000Base-T RJ45 port and 2 x SFP slots for Gigabit links

·       Supports multimode and single-mode SFP modules

·       Supports RJ-45 to SFP and SFP to SFP operation modes

·       TP port supports full-duplex, auto-negotiation, and Auto-MDI/MDI-X

·       Link Fault Pass-Through (LFP) support for improved diagnostics

·       Supports VLAN tagging and Jumbo Frames up to 16KB

·       Compact, fanless metal design for silent and durable operation

·       Built-in surge and ESD protection

·       CE, FCC, UKCA certified for safety and compliance




·       Gigabit Ethernet conversion between 10/100/1000Base-T and 1000Base-SX/LX fiber

·       Dual interface support: One 10/100/1000Base-T RJ45 port and two SFP slots for Gigabit links

·       Two Operation Modes: RJ-45 to SFP or SFP to SFP

·       Supports IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-SX/LX standards

·       Two SFP slots support either multimode or single-mode SFP modules

·       TP port supports Full-Duplex, Auto-Negotiation, Auto-MDI/MDI-X, and IEEE 802.3x Flow Control

·       Link Fault Pass-Through (LFP) support for improved network diagnostics

·       DIP switch for enabling/disabling forwarding mode and LFP function

·       Fanless, compact metal housing for silent operation and long-term durability

·       Reliable power input design with built-in protection mechanisms

·       Compliant with IEEE 802.3 standards and certified for safety and performance

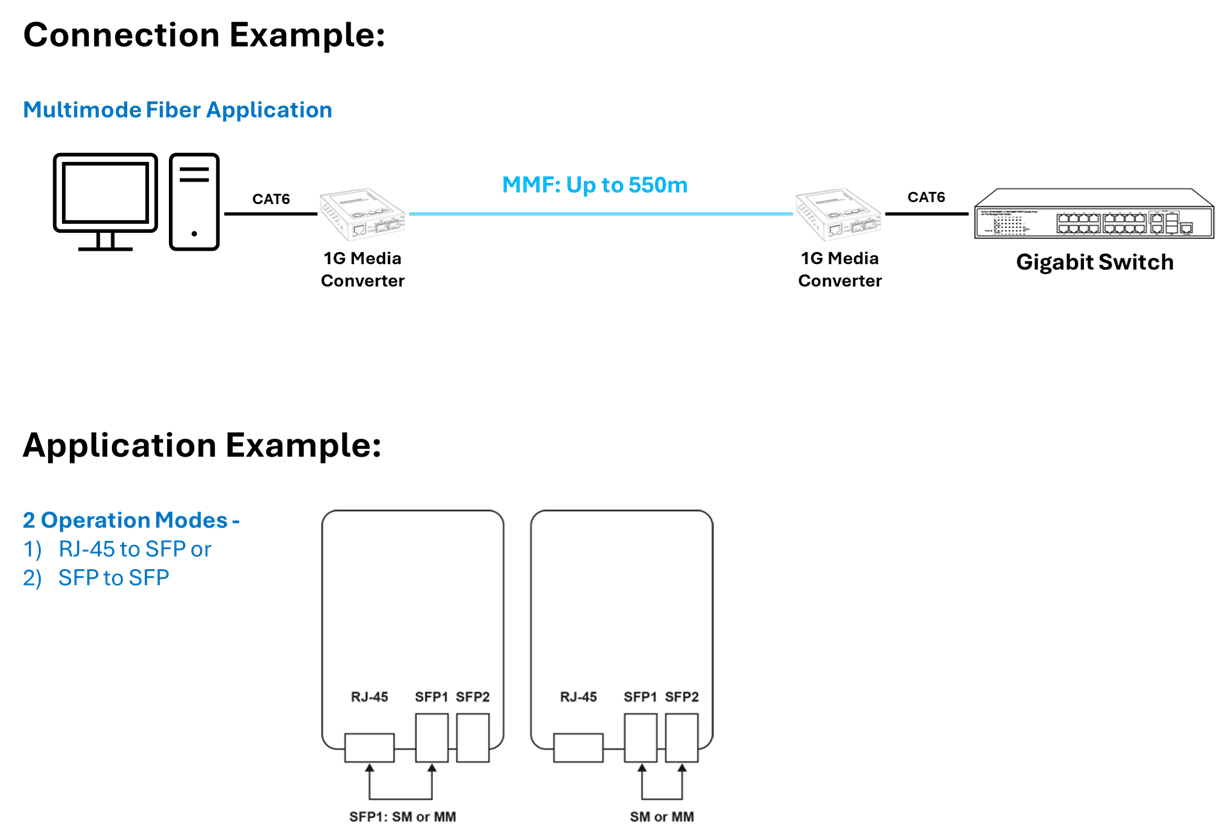

CMC-GC2F-XXXX Connection Example


Datasheet

CMC-GC2F-XXXX(图1)CMC-GC2F-XXXX, 1G Media Converter Datasheet Rev1.1 PDF
