CMC-GTFX-SFP
INTRODUCTION
The CMC-GTFX Media Converter Series is a Gigabit Ethernet Media Converter that converts 1Gbps copper Ethernet to 1Gbps SFP fiber. It supports IEEE 802.3 standards, auto-negotiation, VLAN tagging, jumbo frames (up to 16KB), and Link Fault Pass-Through (LFP) for improved network reliability. Designed for flexibility, it features a fanless metal enclosure, low power consumption (2W), and multiple mounting options. With built-in surge and ESD protection, and CE, FCC, and UKCA certifications, the CMC-GTFX-SFP Gigabit Ethernet Media Converter ensures stable, high-speed connectivity in a wide range of environments.
Key Features
☑ Gigabit Ethernet Conversion
☑ Dual Interface Support
☑ Auto-Negotiation & MDI/MDI-X
☑ Advanced Network Performance
☑ Compact & Durable Design – Fanless metal
☑ Reliable Power & Protection
☑ Certified Safety & Compliance
· Gigabit Ethernet Conversion – Converts between 10/100/1000Base-T copper Ethernet and 1Gbps SFP fiber connections.
· Dual Interface Support – Includes one RJ45 copper port and one 1Gbps SFP slot for fiber uplink connectivity.
· Auto-Negotiation & MDI/MDI-X – Supports automatic speed negotiation and automatic cable detection for simplified setup.
· Stable Network Performance – Supports up to 16KB jumbo frames and a 384Kb packet buffer for efficient data handling.
· Compact Fanless Metal Design – Features a compact metal enclosure with fanless cooling for quiet operation and passive heat dissipation.
· Flexible Installation Options – Supports desktop deployment, optional wall mounting, and optional media converter chassis installation.
· Reliable Power & Protection – Operates on 5–12V DC input with low 2W power consumption, plus ESD and surge protection.
· Certified Safety & Compliance – Complies with CE, FCC, UKCA, and EN62368-1 standards, with support for IEEE 802.3 Ethernet standards.

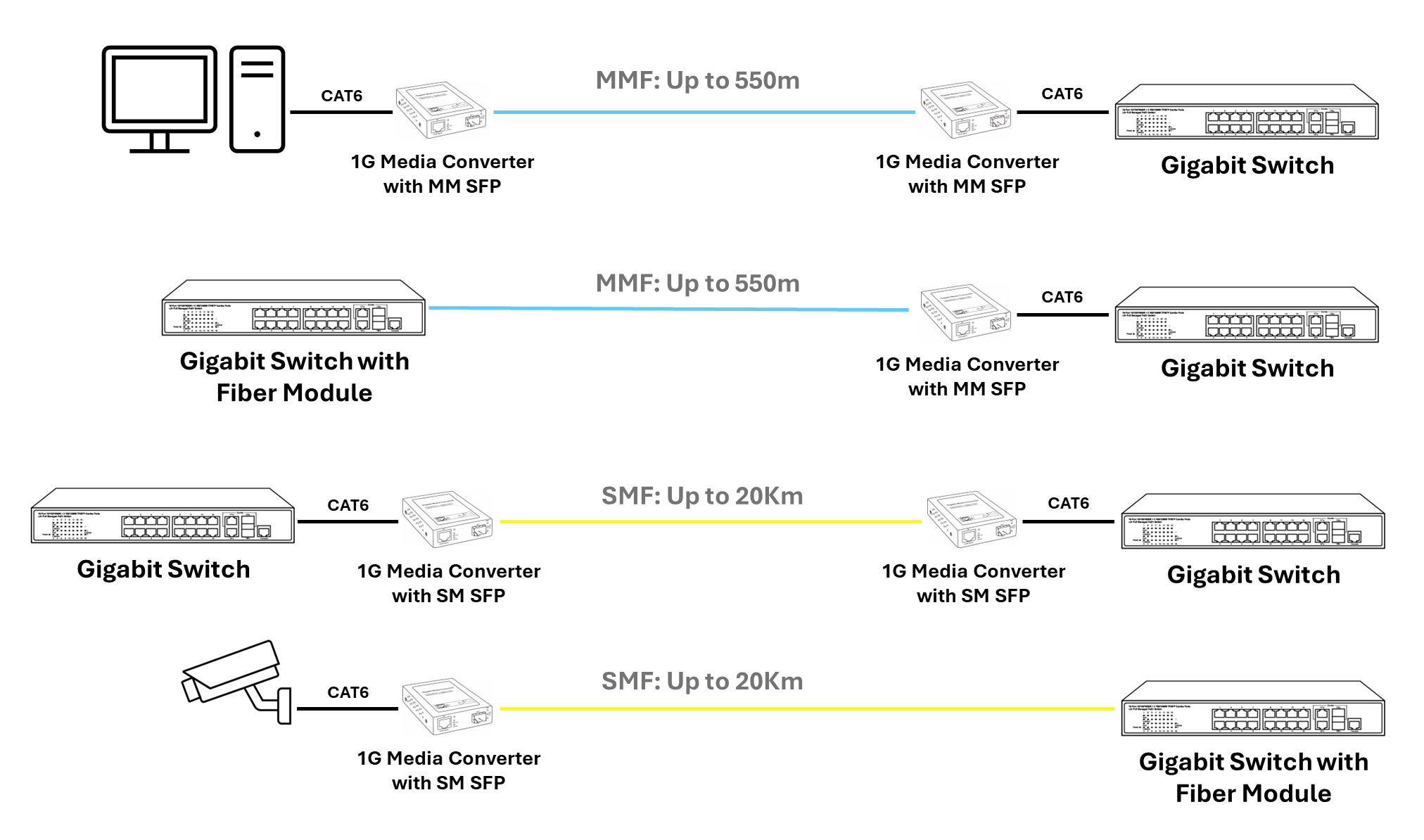

Application Examples
