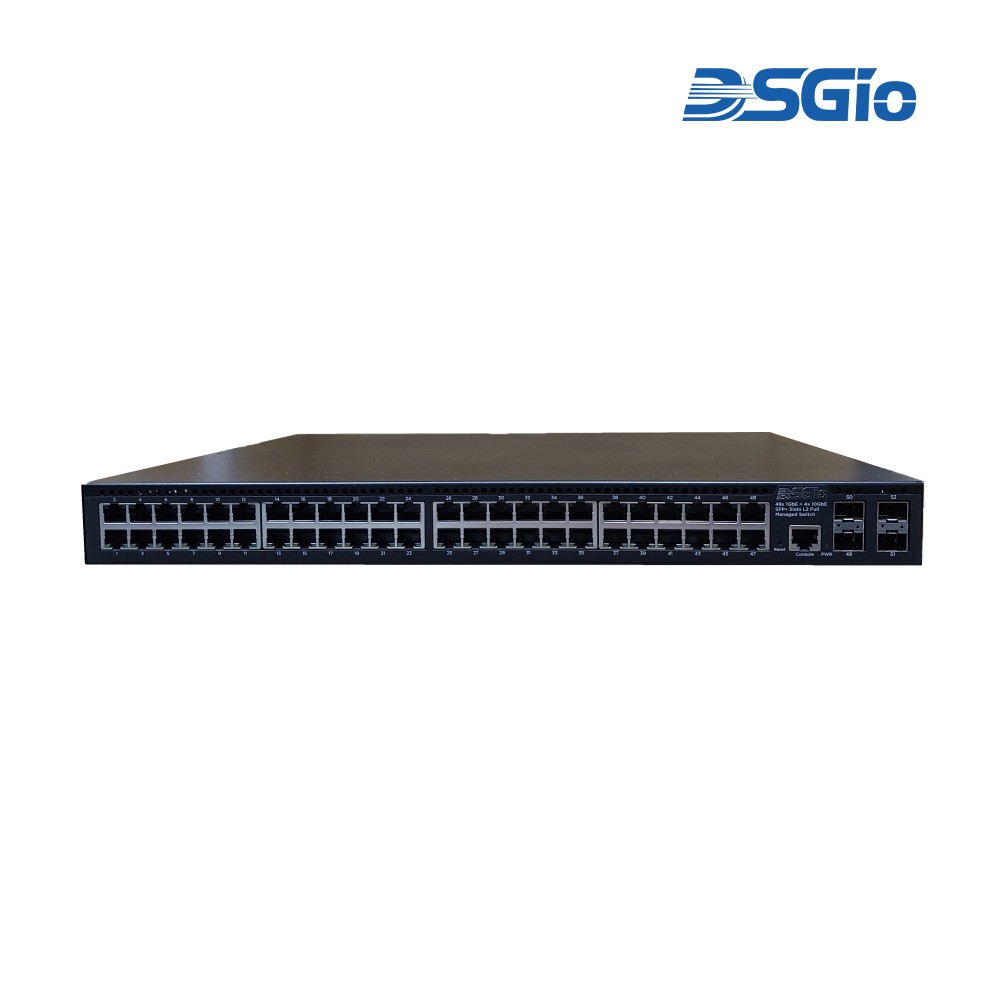

CMS-48410GF, L2+ Switch

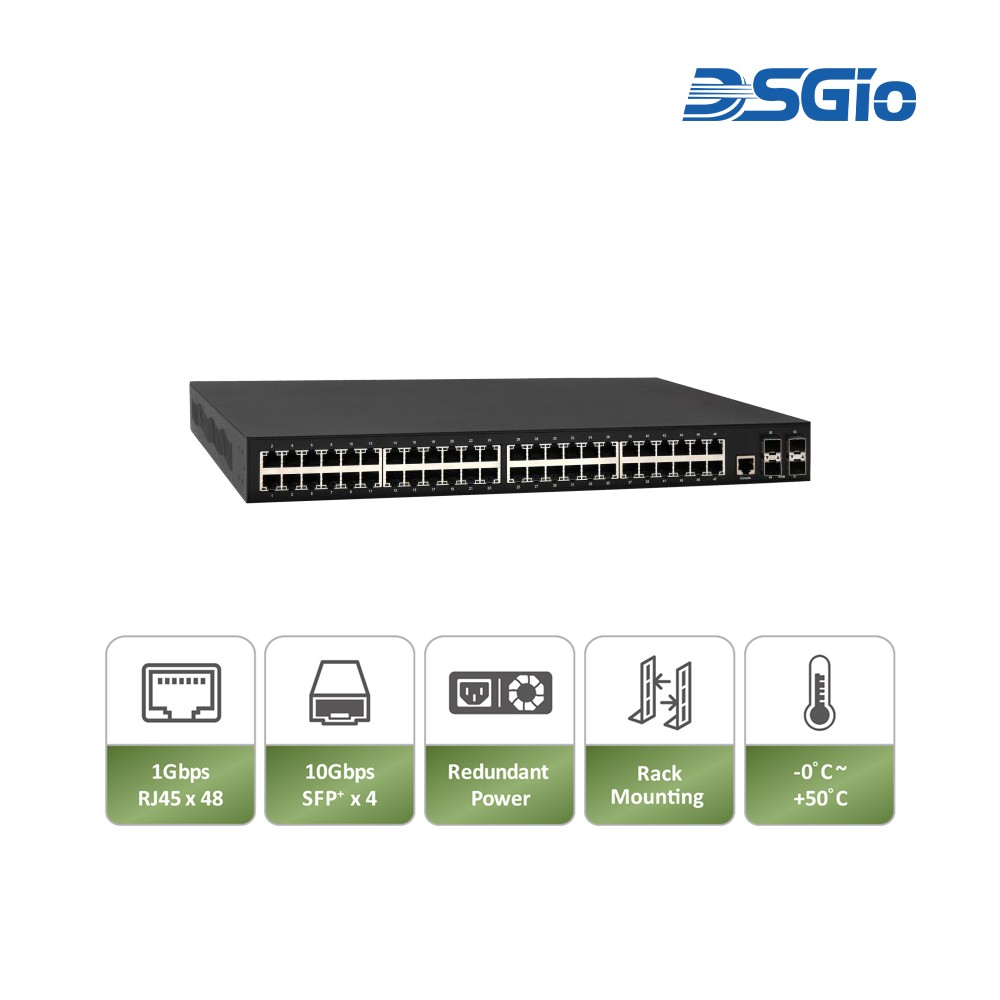

L2+ Managed Switch – 48 x 10/100/1000Mbps RJ45 + 4 x 1G/2.5G/10Gbps SFP+ Ports
( Available in Two Models: Single Internal Power Supply or Redundant Hot-Swappable Power Module )
The L2+ Managed Gigabit Ethernet Switch delivers high-performance networking with 48 × 10/100/1000Mbps RJ45 ports and 4 × 1G/2.5G/10G SFP+ uplinks for flexible, high-speed connectivity. Designed for enterprise-grade deployments, it features non-blocking switching, advanced Layer 2+ management (MSTP, LACP, LLDP, sFlow, 802.1X, RADIUS, TACACS+, ACL), and robust security including IP Source Guard and Port Security. Comprehensive multicast capabilities (IGMP Snooping v1/v2/v3, Proxy, Querier, MVR, MLD Snooping v1/v2) ensure optimized video and data distribution, while DHCP Server/Relay/Snooping and Voice VLAN simplify network provisioning. The 802.3az Energy Efficient Ethernet standard reduces power consumption without compromising performance.
CMS Non-PoE Series:
Flyer - CMS L2+ Managed Ethernet Switch Product Family v1.0 PDF
- Category: L2+ Managed Switches
- SKU: CMS-48410GF or CMS-48410GF-XXX
INTRODUCTION
The DSGio CMS-48410GF L2+ managed switch is engineered for medium- to large-scale network deployments, delivering a high-bandwidth, non-blocking switch fabric for low-latency, high-speed data transmission. It features multi-rate SFP+ uplinks for scalable network expansion and supports link aggregation to increase throughput. IEEE-compliant design ensures uninterrupted service for connected IP devices, while advanced Layer 2+ management, including VLAN, QoS, and robust security, optimises network segmentation and traffic prioritization. The 19-inch rack-mountable chassis enables seamless integration into enterprise and data center environments.
SPECIFICATIONS
Interface | ||
10M/100M/1000Mbps RJ45 Ports | 48 | |
1G/2.5G/10Gbps SFP+ Slots | 4 | |
RJ45 Console Port for CLI Management | 1 | |
System Performance | ||
Packet Buffer | 32Mb | |
MAC Address Table Size | 32K | |
Jumbo Frame | 10K | |
Switching Capacity | 176Gbps | |
Forwarding Rate (64-byte) | 130.944Mpps | |
L2 Features | ||
Auto-Negotiation | ● | |
Auto MDI/MDI-X | ● | |
Flow Control (Duplex) | 802.3x (Full) | ● |
Back-Pressure (Half) | ● | |
Spanning Tree | IEEE 802.1D (STP) | ● |
IEEE 802.1w (RSTP) | ● | |
IEEE 802.1s (MSTP) | ● | |
VLAN | VLAN Group | 4096 |
Tagged Based | ● | |
Port-Based | ● | |
Q-in-Q | ● | |
Voice VLAN | Voice VLAN with OUI | |
MAC-based / Protocol-based / IP Subnet-based VLAN | ● | |
Link Aggregation | IEEE 802.3ad with LACP | ● |
Static Trunk | ● | |
Max. Static Aggregation Group | 26 | |
Max. Port per Static Agg. Group | 16 | |
IGMP Snooping | IGMP Snooping v1/v2/v3 | Supports 1024 IGMP Groups |
IGMP Static Multicast Addresses | Supports 1024 Static Multicast Addresses | |
IPv6 MLD Snooping | Supports 1024 MLD Groups | |
MLD Static Multicast Addresses | Supports 1024 Static Multicast Addresses | |
Querier, Immediate Leave | ● | |
Storm Control (Broadcast / Multicast / Unknown Unicast) | ● | |
Loop Protection | ● | |
QoS Features | ||
Number of Priority Queue | 8 Queues/Port | |
Rate Limiting | Ingress | Yes, 1 KBps/1pps |
Egress | Yes, 1 KBps/1pps | |
DiffServ (RFC2474 Remarking) | ● | |
Scheduling (WRR, Strict, Hybrid) | ● | |
CoS | IEEE 802.1p | ● |
IP ToS Precedence, IP DSCP | ● | |
Security | ||
Management System User Name / Password Protection | ● | |
User Privilege | Set User Privilege up to 15 Level | |
Port Security (MAC-based) | ● | |
IEEE 802.1x Port-based Access Control | ● | |
ACL (L2/L3/L4) | ● | |
IP Source Guard | ● | |
RADIUS (Authentication, Authorisation, Accounting) | ● | |
TACACS+ | ● | |
HTTP & SSL (Secure Web) | ● | |
SSH v2.0 (Secured Telnet Session) | ● | |
MAC / IP Filter | ● | |
DHCP Snooping (DHCP Protection) | ● | |
Port Isolation | ● | |
BPDU Guard | ● | |
STP Root Guard / Edge Safe Guard / Restricted Role | ● | |
Dynamic ARP Protection | ● | |
Management | ||
Command Line Interface (CLI) | ● | |
Web Based Management | ● | |
Telnet | ● | |
Access Management Filtering | SNMP/Web/SSH/Telnet | |
Firmware Upgrade via HTTP | ● | |
Dual Firmware Images | ● | |
Configuration Download / Upload | ● | |
SNMP (v1/v2c/v3) | ● | |
RMON (1, 2, 3 & 9 Groups) | ● | |
DHCP (Server / Client / Relay / Option 82 / Snooping) | ● | |
System Event / Error Log | ● | |
TFTP (Trivial File Transfer Protocol) | ● | |
NTP / LLDP | ● | |
Cable Diagnostics | ● | |
IPv6 Configuration | ● | |
Port Mirroring | ● | |
Virtual Stacking | ● | |
Physical Characteristics | ||
Dimension (W x H x D) | Internal PSU: 440 x 44 x 331 mm Redundant PSU: 440 x 44 x 383 mm With PSU Handle & Latch Button: 440 x 44 x 410 mm | |
Reset Button | N/A | |
LED | Power, Link/ACT. | |
Cooling | Fan Cooling | |
Enclosure | Metal | |
Installation | Desktop / Rack Mount | |
Weight | Refer to PSU Bundled Configuration Table | |
System Power Requirements | ||
System Power Input | 100 - 240V ~ | |
System Power Consumption | 45W | |
Power Supply Information | ||
Internal Power Supply | Input: 100-240 V~, 47-63Hz, 1.5A Max. | |
Output: 12V DC / 5.4A (65W Max.) | ||
Redundant Power Supply | Input: 100-240 V~, 47-63Hz, 2-1A Max. | |
Output: 12V DC / 5A (60W Max.) | ||
Environment Limits | ||
Operating Temperature | 0 ~ 50°C | |
Storage Temperature | -20 ~ 80°C | |
Operating Humidity | Max. 90% RH (Non-condensing) | |
Storage Humidity | Max. 90% RH (Non-condensing) | |
Protection and Alarms | ||
ESD | DC Contact 4KV, Air 8KV | |
Surge | AC Line to Line 1KV, Line to Ground 2KV | |
Certifications | ||
Electromagnetic Emissions (EMC) | CE, FCC, UKCA Class A | |
Standard | ||
IEEE 802.3 – 10Base-T | ● | |
IEEE 802.3u – 100Base-TX | ● | |
IEEE 802.3ab – 1000Base-T | ● | |
IEEE 802.3z – 1000Base-SX/LX | ● | |
IEEE 802.3ae – 10GBase (SFP+) | ● | |
IEEE 802.3az – Energy Efficient Ethernet (EEE) | ● | |
IEEE 802.3x – Flow Control | ● | |
IEEE 802.3ad – Link Aggregation Control Protocol (LACP) | ● | |
IEEE 802.1Q – VLAN Tagging | ● | |
IEEE 802.1v – Protocol-Based VLAN | ● | |
IEEE 802.1p – Class of Service (CoS) | ● | |
IEEE 802.1D – Spanning Tree Protocol (STP) | ● | |
IEEE 802.1w – Rapid Spanning Tree Protocol (RSTP) | ● | |
IEEE 802.1s – Multiple Spanning Tree Protocol (MSTP) | ● | |
IEEE 802.1AB – Link Layer Discovery Protocol (LLDP) | ● | |
IEEE 802.1X – Port-Based Network Access Control | ● | |
ITU-T G.8032/Y.1344 – Ethernet Ring Protection Switching (ERPS) | ● | |
IEEE 1588v2 - Precision Time Protocol (PTP) | OPTIONAL | |
· IP Source Guard and Port Security
· Non-blocking Switching Architecture
· Layer 2+ Fully Managed Features, including MSTP, LACP, LLDP, sFlow, 802.1X, RADIUS, TACACS+, and ACLs
· Integrated DHCP Server, DHCP Relay, and DHCP Snooping
· Support for Voice VLAN
· Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption
· Multicast Support, including IGMP Snooping (v1/v2/v3), IGMP Proxy, IGMP Querier, MVR, and MLD Snooping (v1/v2)
Power Supply Unit Bundle Configuration
Model No. | Power Source Unit (PSU) | Weight | Dimension (W x H x D) |
CMS-48410GF | 1 (Internal Power Supply) | 4.0 Kg | 440 x 44 x 331 mm |

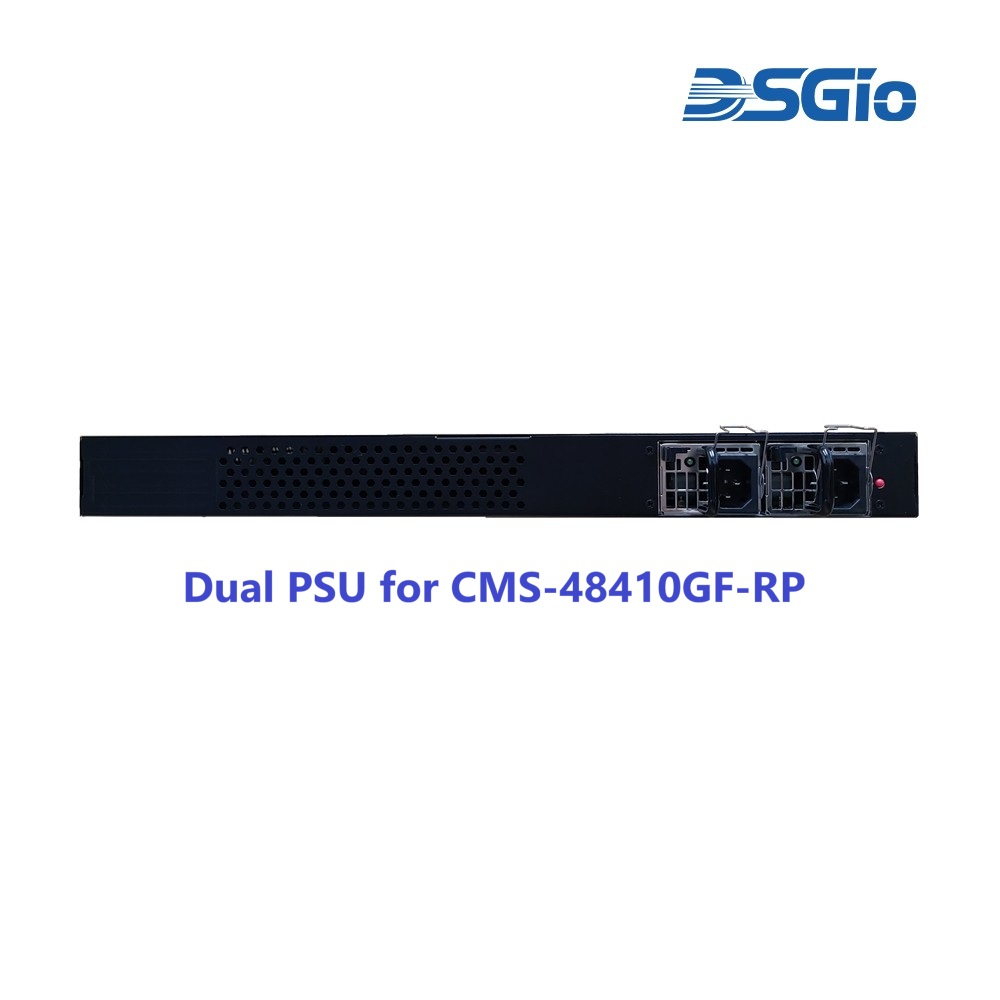

CMS-48410GF-RP | 2 (Hot-Swappable Power Module in Redundant Config.) | 4.3 Kg | 440 x 44 x 410 mm |
Model Name Abbreviation with RP denotes Redundant Power.
Note: The RP switch hardware design supports dual redundant power supplies. This feature is hardware-based and not user-configurable.
