KMS-U110, KM Switch
10 Ports KM (USB) Switch with USB HID, Hotkey Switching, and Mouse Roaming function
The KM (USB) Switch, KMS-U110, allows users to share one set of USB HID peripherals among 10 USB-connected computers. The real-time USB HID ports provide a seamless switching experience – users can move the mouse cursor across screen borders to select the desired PC, issue hotkey commands, or press a button to switch to the next or previous computer.
KMS Series:
KM (USB) Switch Product Family v1.0 PDF
- Category: KM (USB) Switches
- SKU: KMS-U110
The 10-Port KM (USB) Switch, KMS-U110, allows users to share one set of keyboard, mouse and USB HID peripherals among 10 USB-connected computers. The real-time USB HID ports provide an amazing switching experience by simply issuing hotkey commands or pressing one button to select the desired PC for access control.

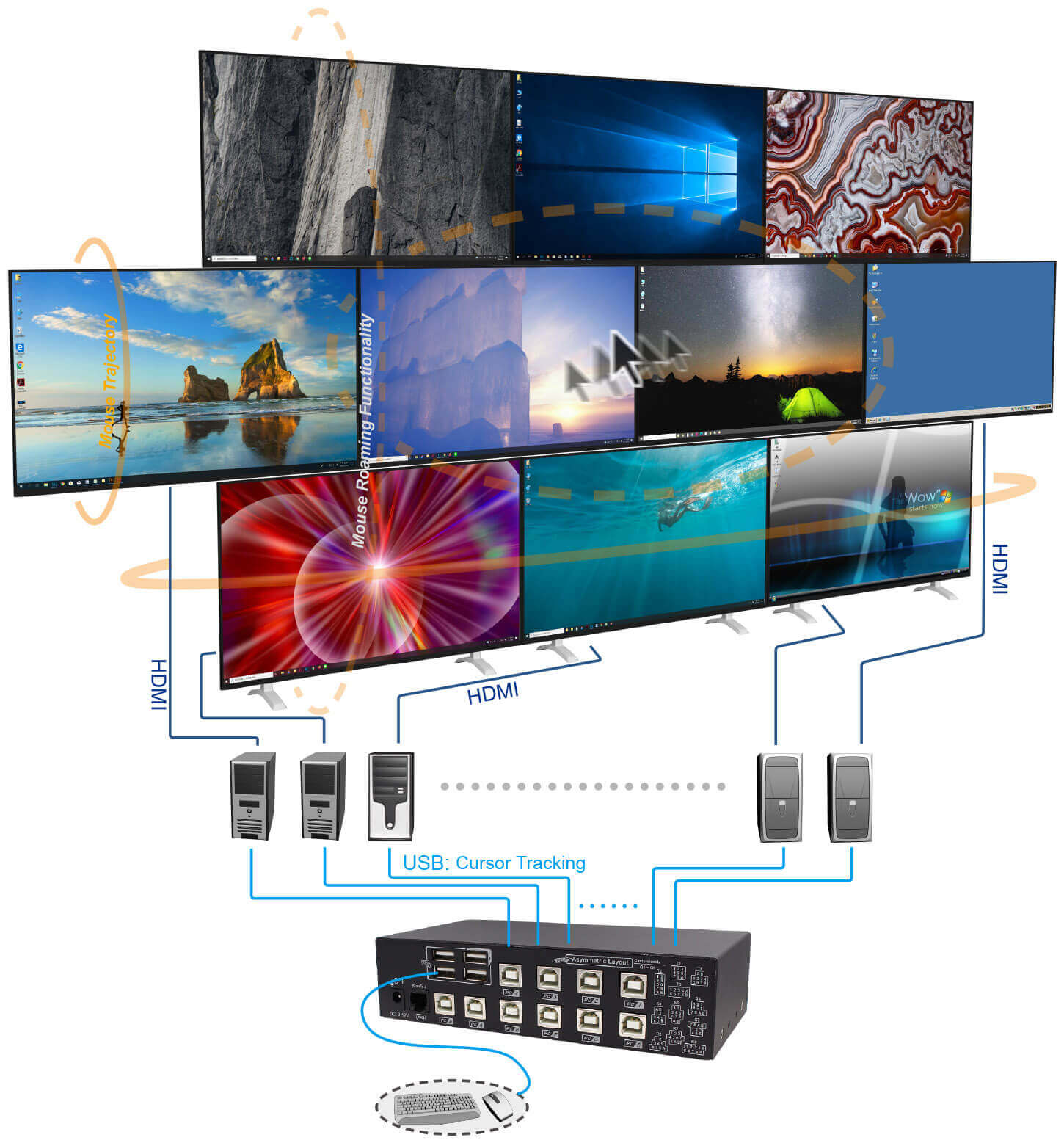

Mouse Roaming Functionality with Flexible Preset Screen Layout

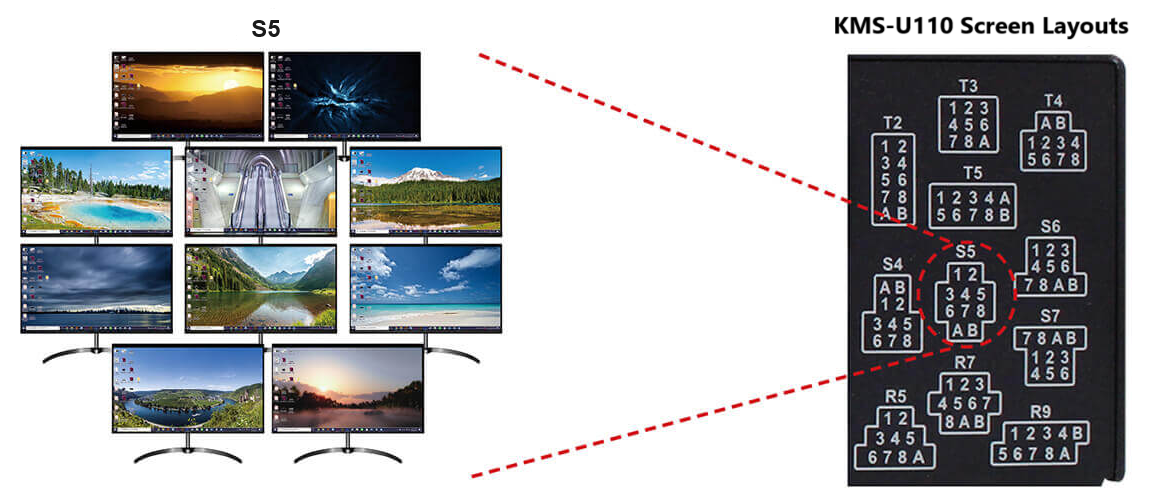

 | The KMS-U110 switch features Mouse Absolute Coordinate Technology, which calculates and aggregates the screen resolution of USB hosts and provides multiple preset video wall screen layouts to enable mouse roaming functionality. Thus, allowing seamless KM (keyboard and mouse) switching among PCs. The Mouse Roaming Switching Function allows users to switch between computers by moving the mouse cursor across screen borders, offering a more efficient and modern way of switching computers. Users can easily switch PC ports by moving the mouse cursor smoothly and seamlessly across the monitor borders. This allows the keyboard and mouse to switch to another PC without using hotkeys or pressing buttons. NOTE: Three modes with 11 preset screen layouts are available for video wall setup. The KM switch can auto-skip unconnected ports for extensive layout applications and cover more layouts.
|
The KM Switch with USB Hub supports not only keyboard and mouse operations but also the sharing of USB HID peripherals. The USB HID ports support Mouse Absolute Coordinate Technology, enabling seamless switching among PCs and adapting to all kinds of mouse resolutions. The KM Switch is a compact, pure hardware solution that is plug-and-play, requiring no driver or software installation. It supports most mainstream operating systems, including Windows, Mac, and Linux. This solution reduces redundant cables and promotes a neat working environment.
· Allows up to 10 computers to share 1 set of USB HID peripherals ( USB HID x 4 )
· Mouse Roaming functionality provides a seamless operation experience by simply moving the mouse cursor across screen borders to select the desired PC
· Flexible preset screen layouts suit various workstation designs
· Supports Keyboard and Mouse Plug-n-Play without Drivers
· Multiple Control Methods:

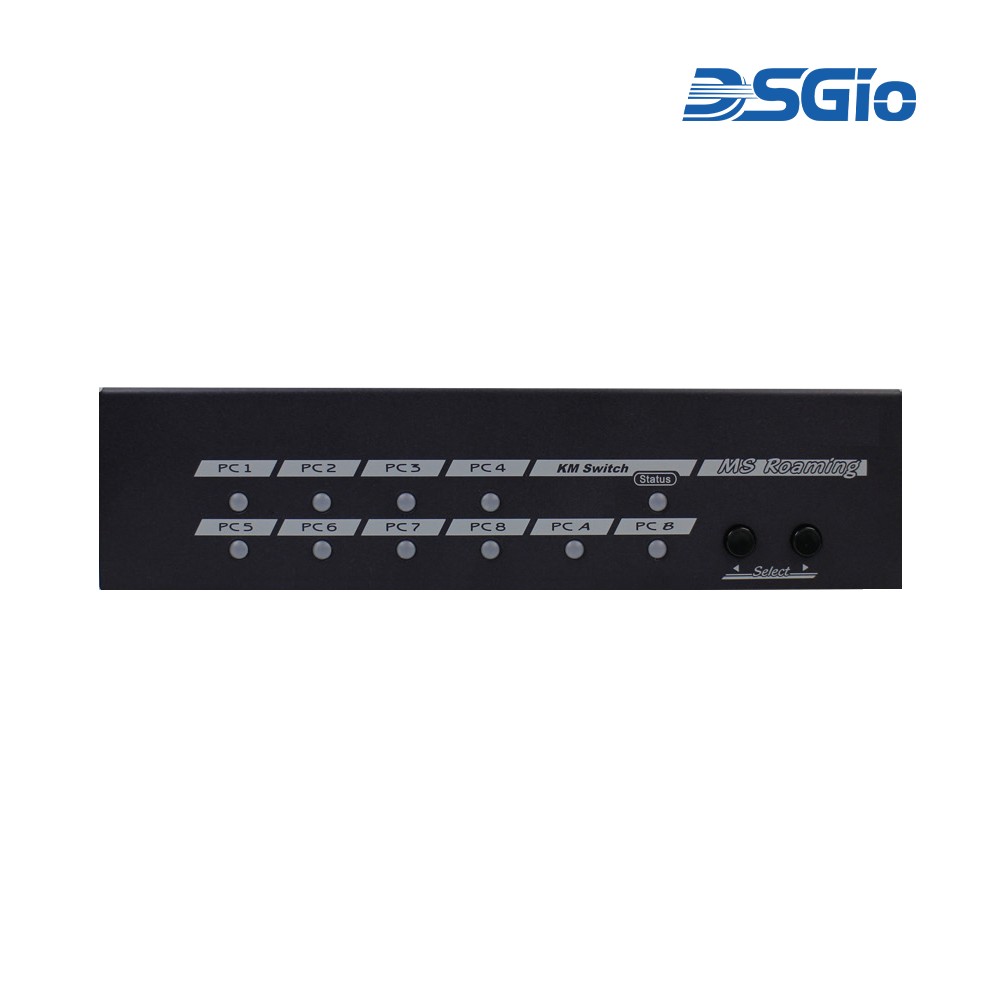

1. Front Panel Push Button Control
2. Mouse Roaming Control
3. Hotkey Control
· Roaming Function supports Windows and Linux, no software required
· Automatically skips unconnected ports for flexible layout applications and supports more layouts
· Allows usage of different versions of Windows simultaneously
· Grants access to the full processing power of 10 PCs simultaneously
· Mouse Absolute Coordinate Technology enables seamless switch among PCs and adapts to all kinds of mouse sensitivity (DPI resolution)

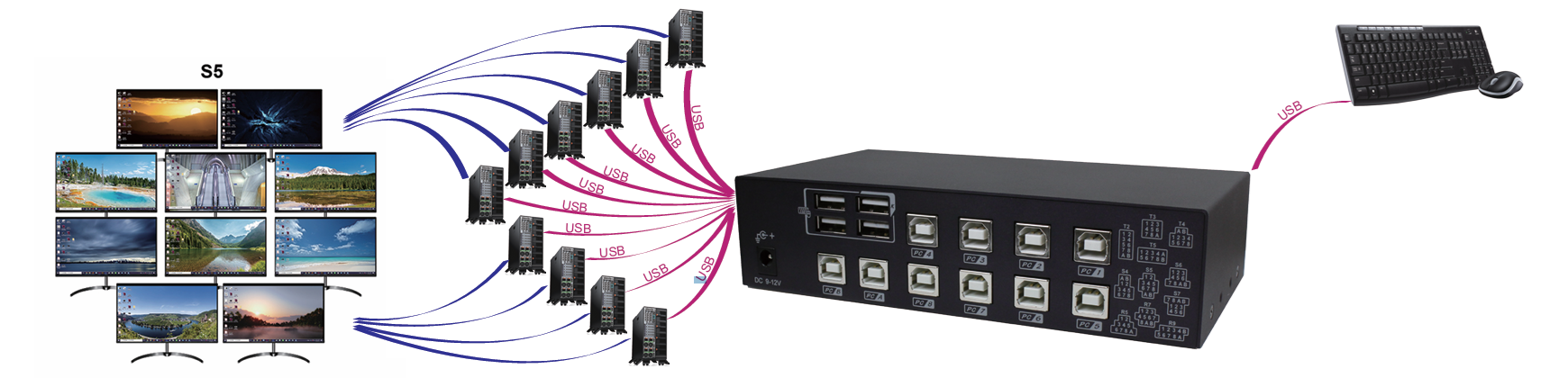

Connection Diagram

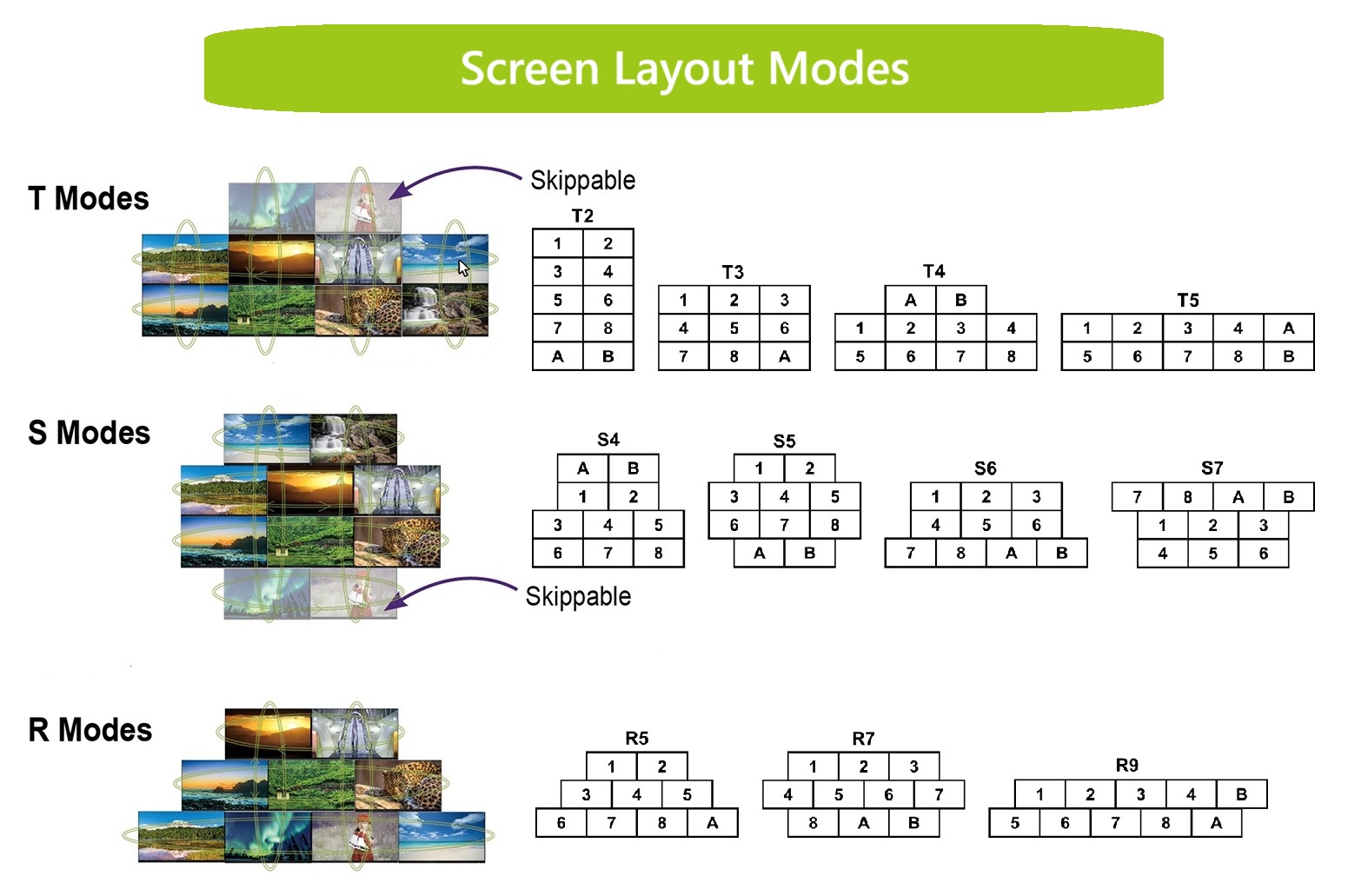

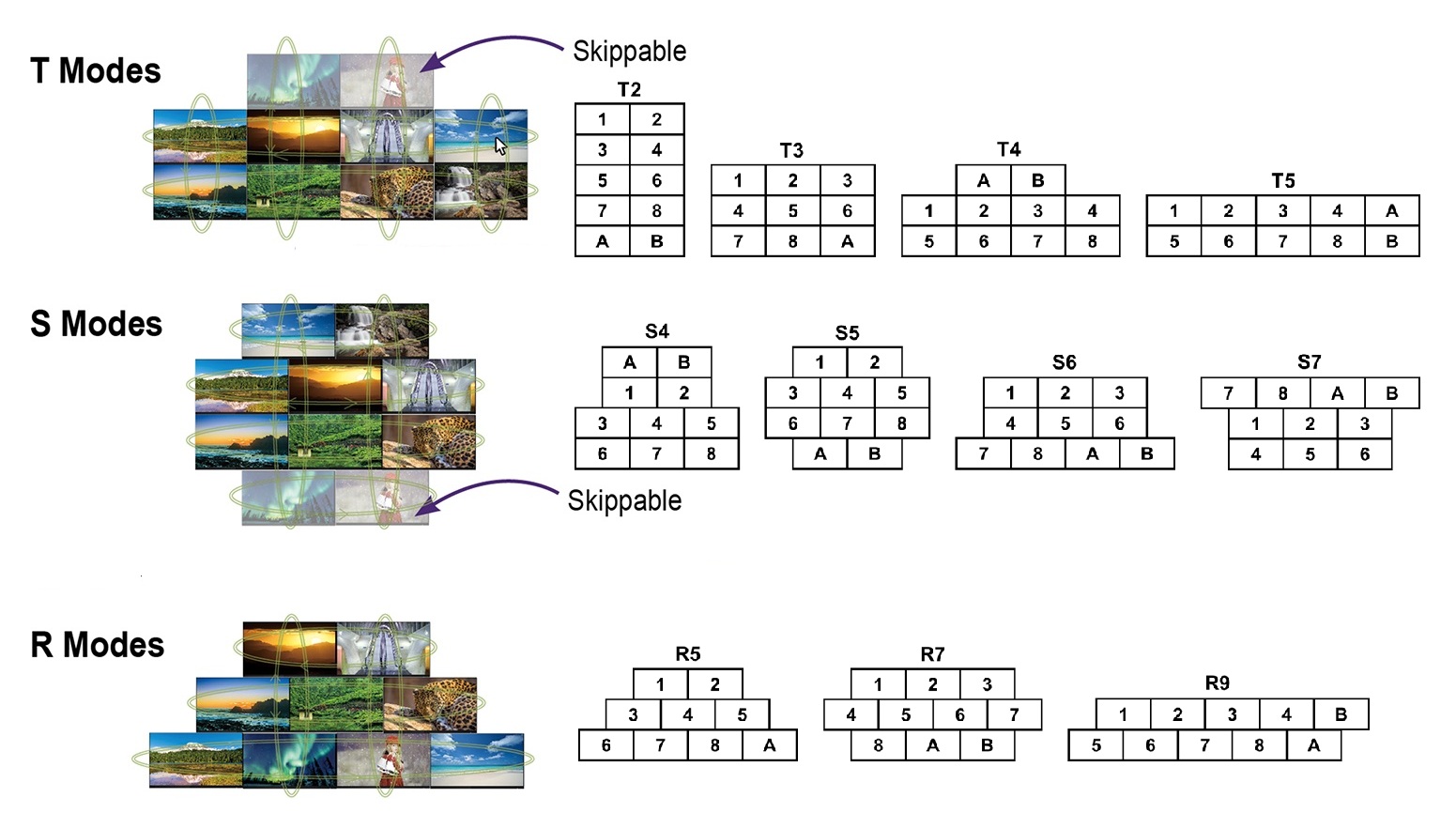

Screen Layout Modes
