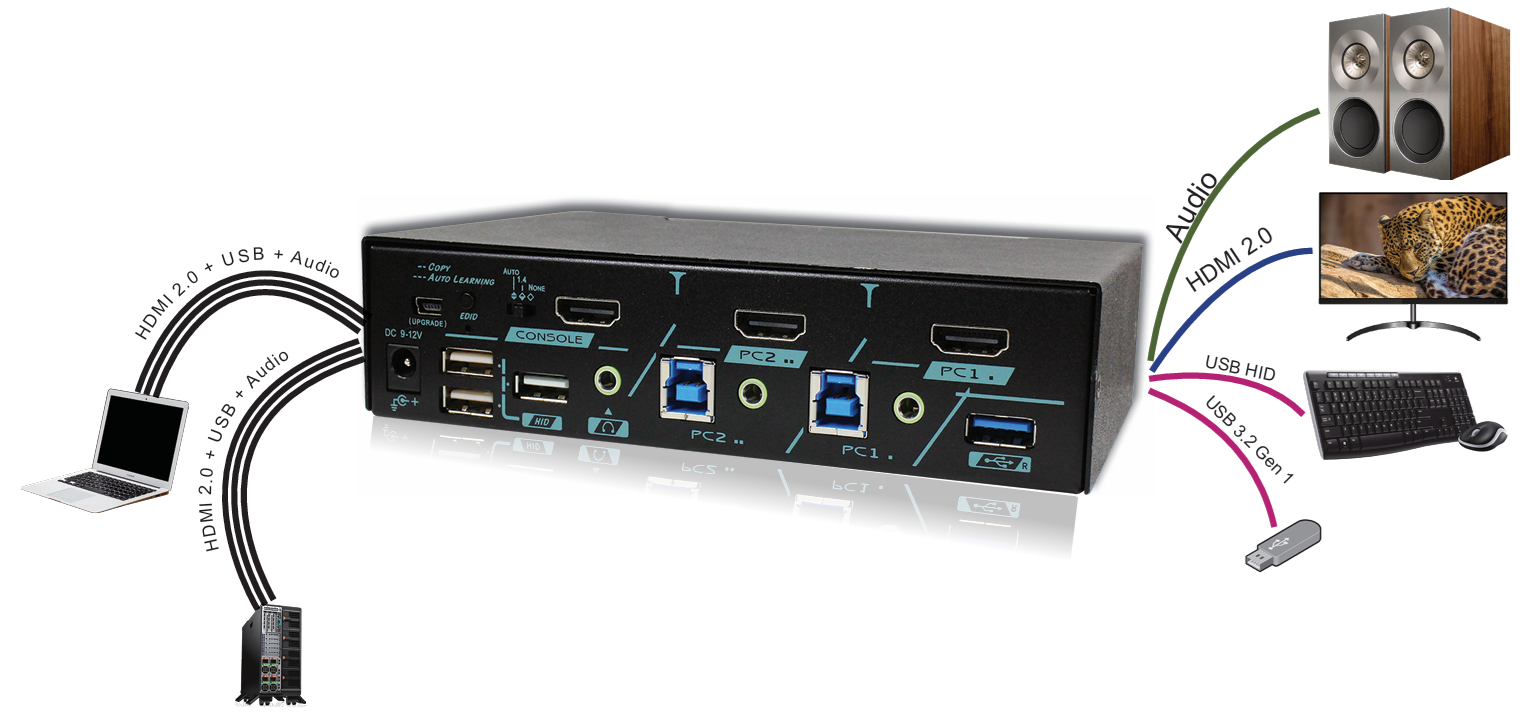

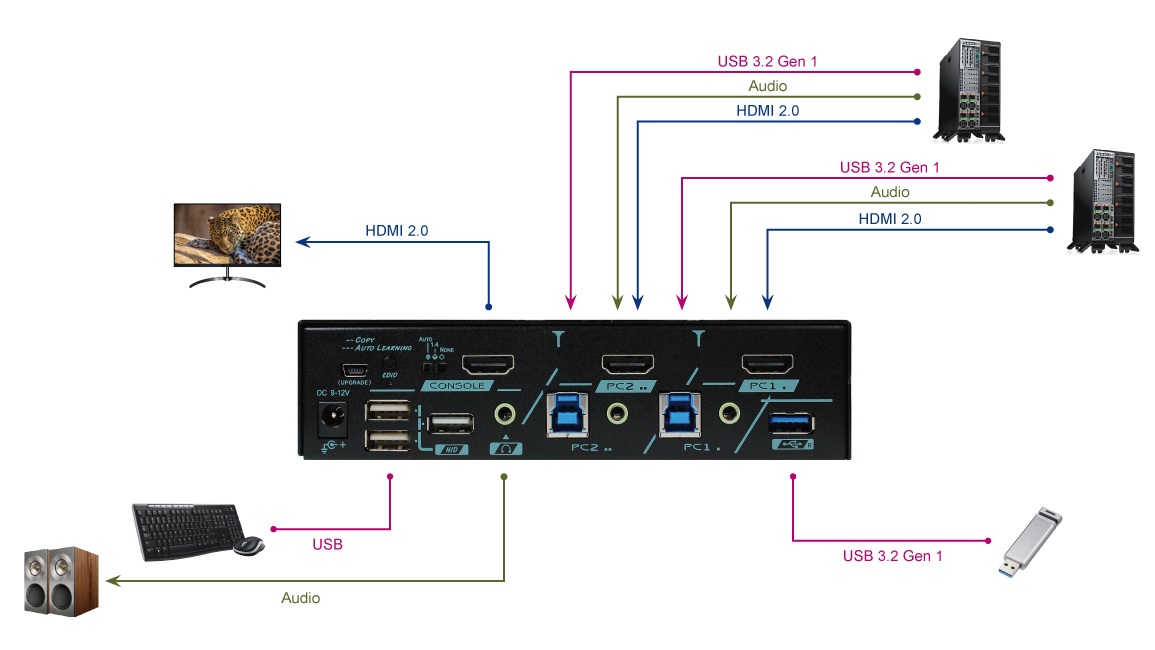

The DKS-4K2H-U30 is a 2-Port True 4K HDMI 2.0 KVM Switch with a built-in HDCP engine, allowing users to share one set of keyboard, mouse, monitor, and audio between two computers. Users can easily switch between sources by pressing a button or using a hotkey. Supporting resolutions up to 4K@60Hz (4:4:4), the unit’s advanced built-in HDCP engine eliminates screen misalignment during port switching and ensures high-quality video output, making it ideal for high-definition multimedia applications.

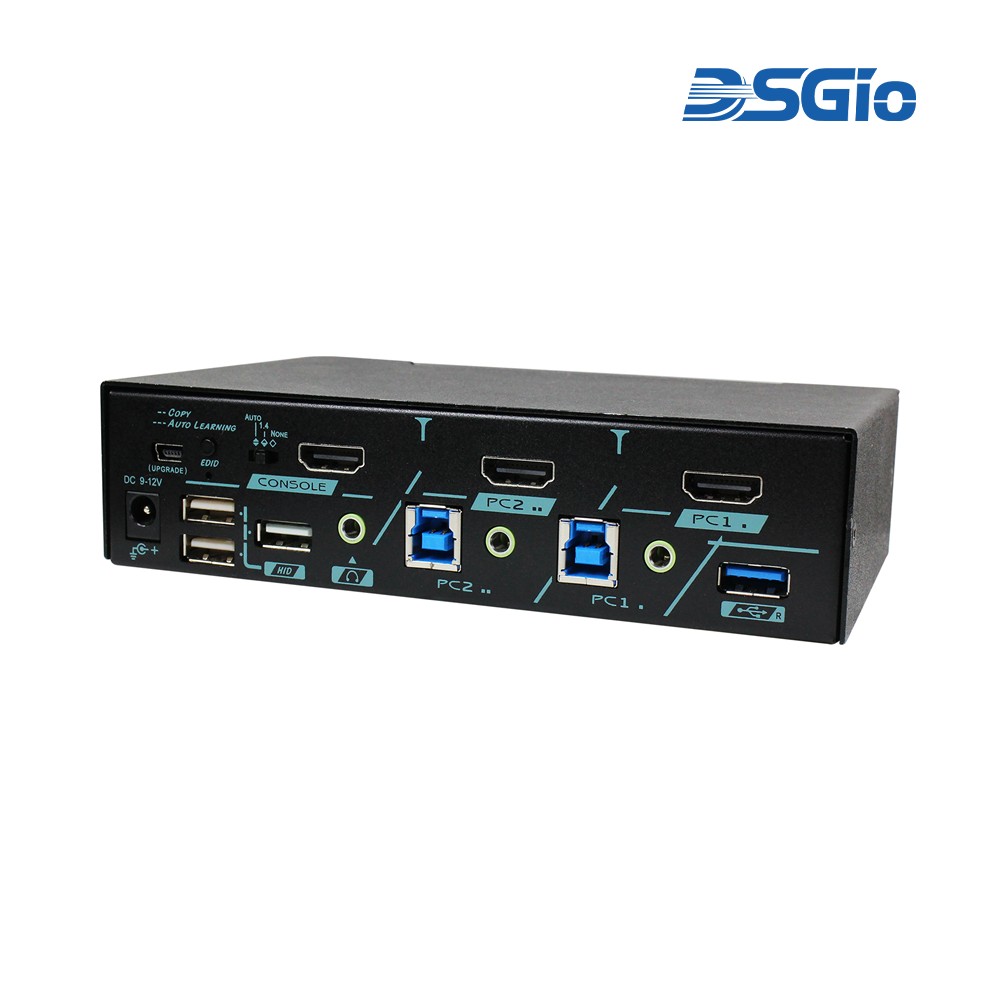

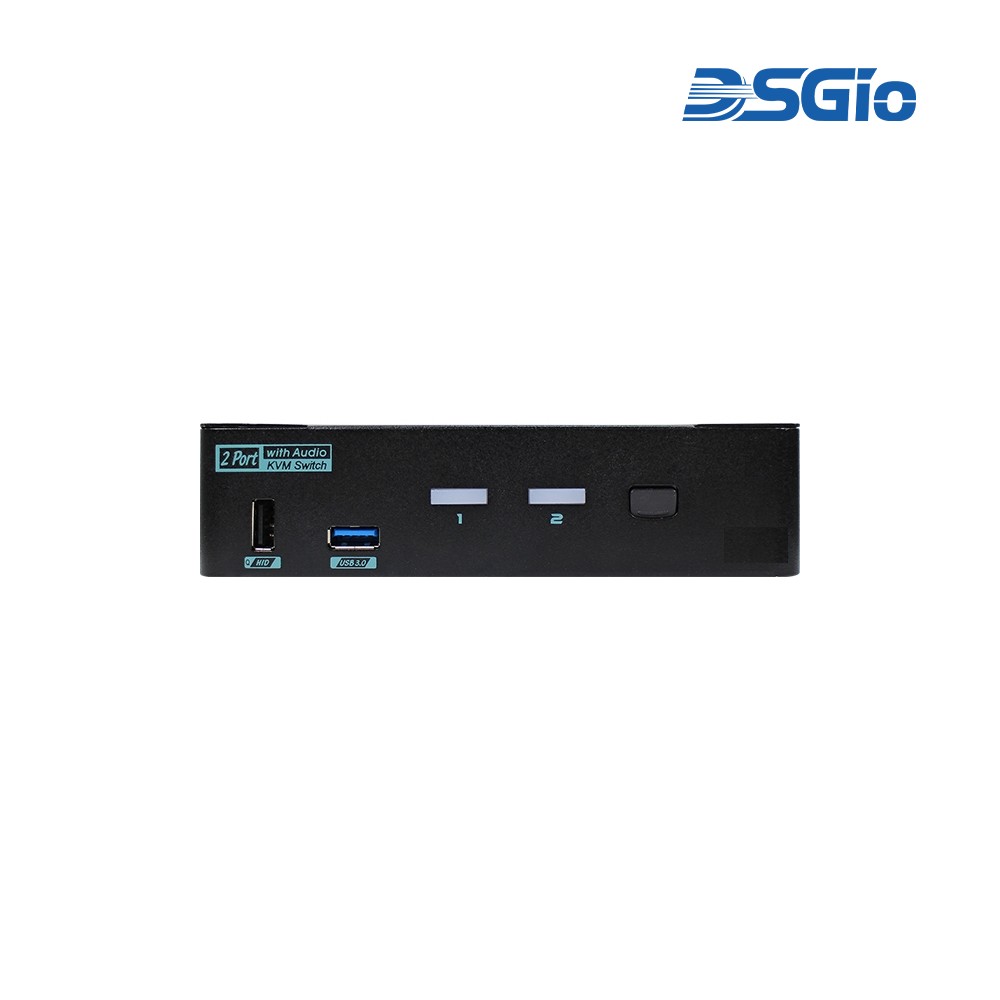

Designed with both front and rear USB 3.2 Gen 1 ports, the switch supports high-speed data transfer and flexible peripheral access, making it easy to connect permanent devices at the rear and temporary devices at the front. It enables seamless keyboard, mouse, and USB device sharing without the need for software or drivers, and a built-in buzzer provides audible confirmation of switching operations.

The unit also features an EDID Copy button, for manually copying or automatically learning EDID information from a connected monitor, ensuring optimal display compatibility and prevents output issues. In addition to HDMI video and USB functionality, the switch supports both 3.5 mm stereo analog audio and digital audio, delivering versatile connectivity for multimedia applications.

Special Design for HDCP Slide Switch

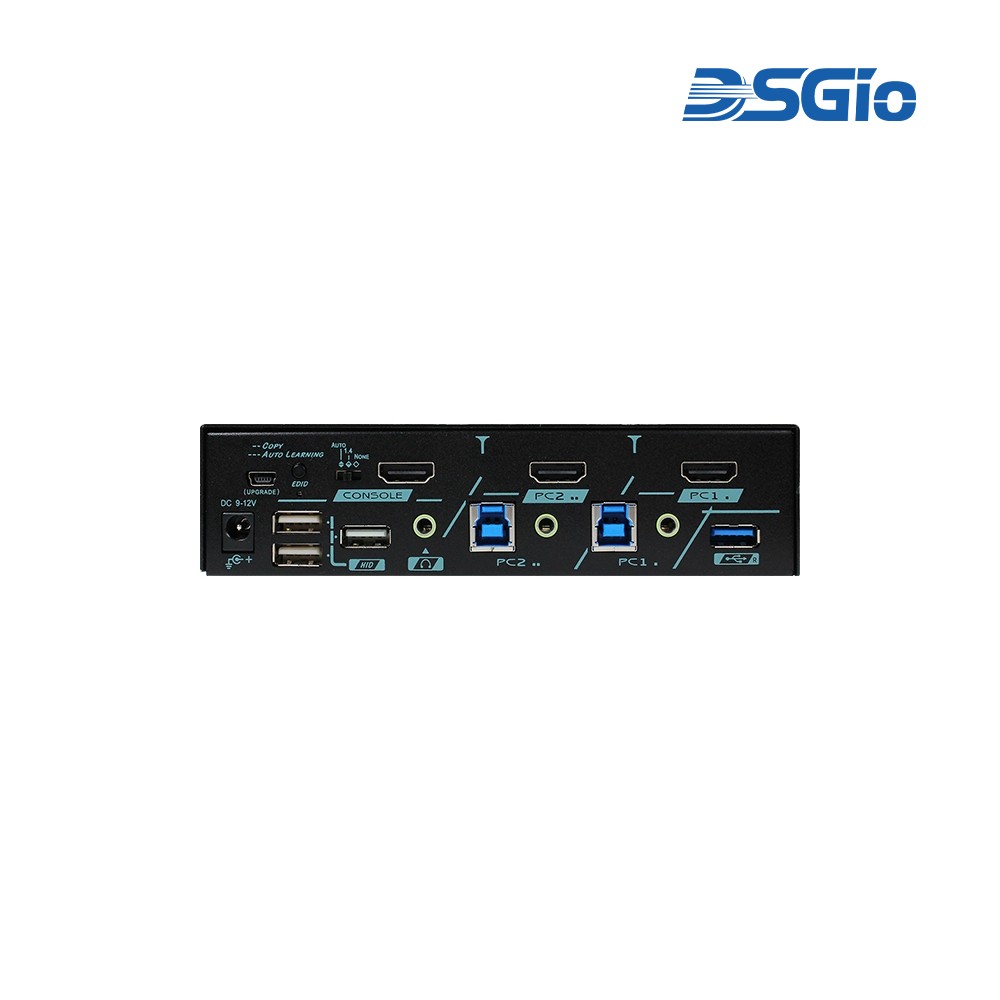

An exclusive HDCP slide switch on the rear panel let users select from three preset HDCP modes:

• Mode 1 (Auto)          – Allows HDCP 2.2 or HDCP 1.4 content pass-through (factory default)
• Mode 2 (HDCP 1.4) – Allows HDCP 1.4 content to be licensed
• Mode 3 (None)         – Allows non-HDCP content to be played
