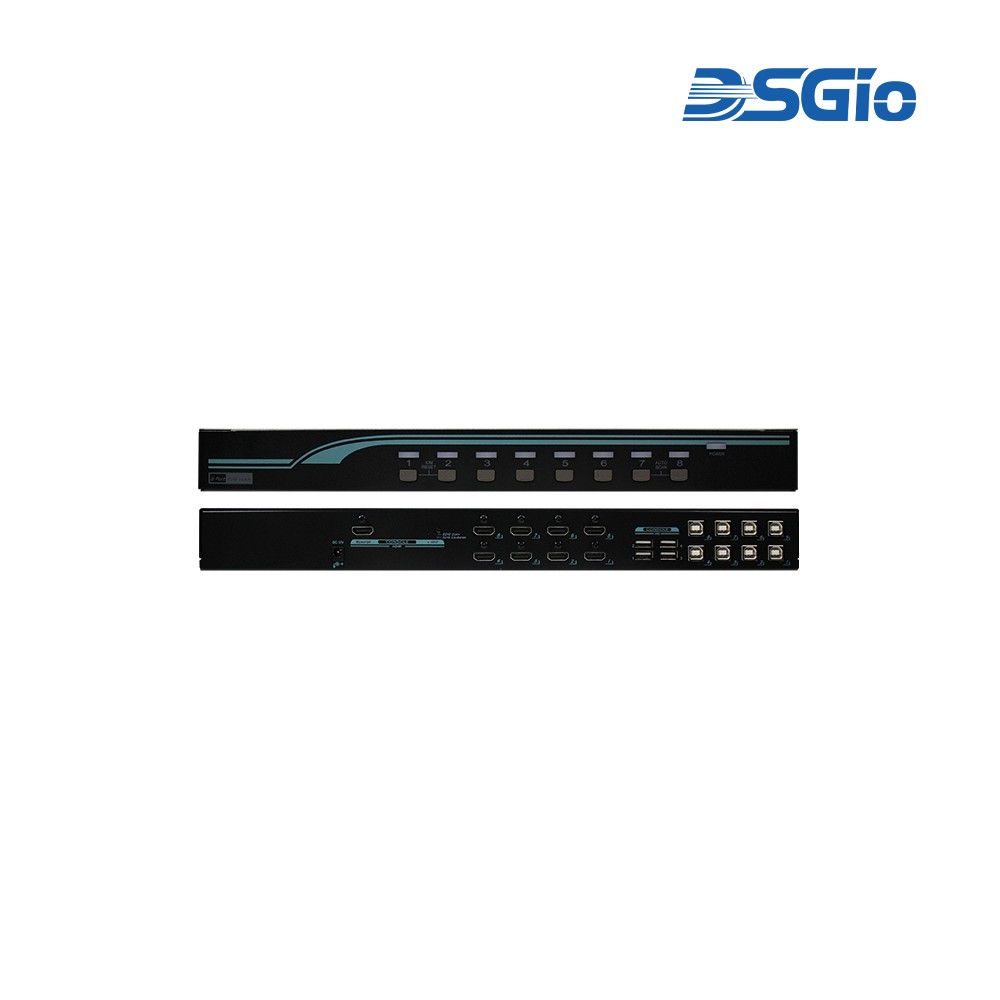

DKS-FH8H-U112

8-Port 4K30 HDMI KVM Switch with USB KM Synchronisation, Front Panel Push Button, Hotkey and Mouse-Switching Functionality

This 8-port 4K HDMI KVM switch provides centralized control of up to eight HDMI computers using a single HDMI display and supports the sharing of up to four USB HID peripherals. The unit offers three control methods, including front-panel push buttons, keyboard hotkeys, and mouse-based switching via programmable mouse buttons, and features an auto-scan mode with selectable scan intervals for sequential system monitoring. Integrated EDID copy and automatic EDID learning functions ensure proper resolution negotiation between source devices and the connected display. A built-in HDCP engine enables immediate port switching without video interruption or image realignment. The KVM operates as a pure hardware, plug-and-play system with no driver or software requirements and supports Windows and macOS host platforms. In addition, a mouse synchronization function allows simultaneous transmission of mouse actions and keyboard commands to all eight identical connected PCs, simplifying multi-system deployment, configuration, and recovery operations.

Category: KVM Switches
SKU: DKS-FH8H-U112

Contact Us Download to PDF

Overview

Product Features

Connection Diagram

Downloads

8 Ports 4K30 HDMI KVM Switch with USB KM Synchronisation, Front Panel Push Button, Hotkey and Mouse-Switching Control

The 8-port USB synchronous KVM switch is a compact, pure hardware, plug-and-play solution that requires no driver or software installation. The DKS-FH8H-U112 is equipped with four USB-HID ports, supports resolutions up to 4K at 30 Hz, provides EDID auto-learning and EDID copy functions, complies with the HDMI 1.4 standard, and supports Windows and macOS operating systems.

Port switching can be performed via the front-panel buttons, hotkey control, or the unique mouse-switching function, which allows PC switching by clicking the programmable buttons on the connected mouse.

The built-in keyboard and mouse synchronisation function can simultaneously send actions (mouse cursor movement) and commands (keystrokes and keyboard input) to all eight connected identical hardware computers. This function is ideal for batch computer system installation, debugging, and OS recovery performed concurrently. USB KM synchronisation provides an efficient method for installing Windows on multiple computers at the same time.

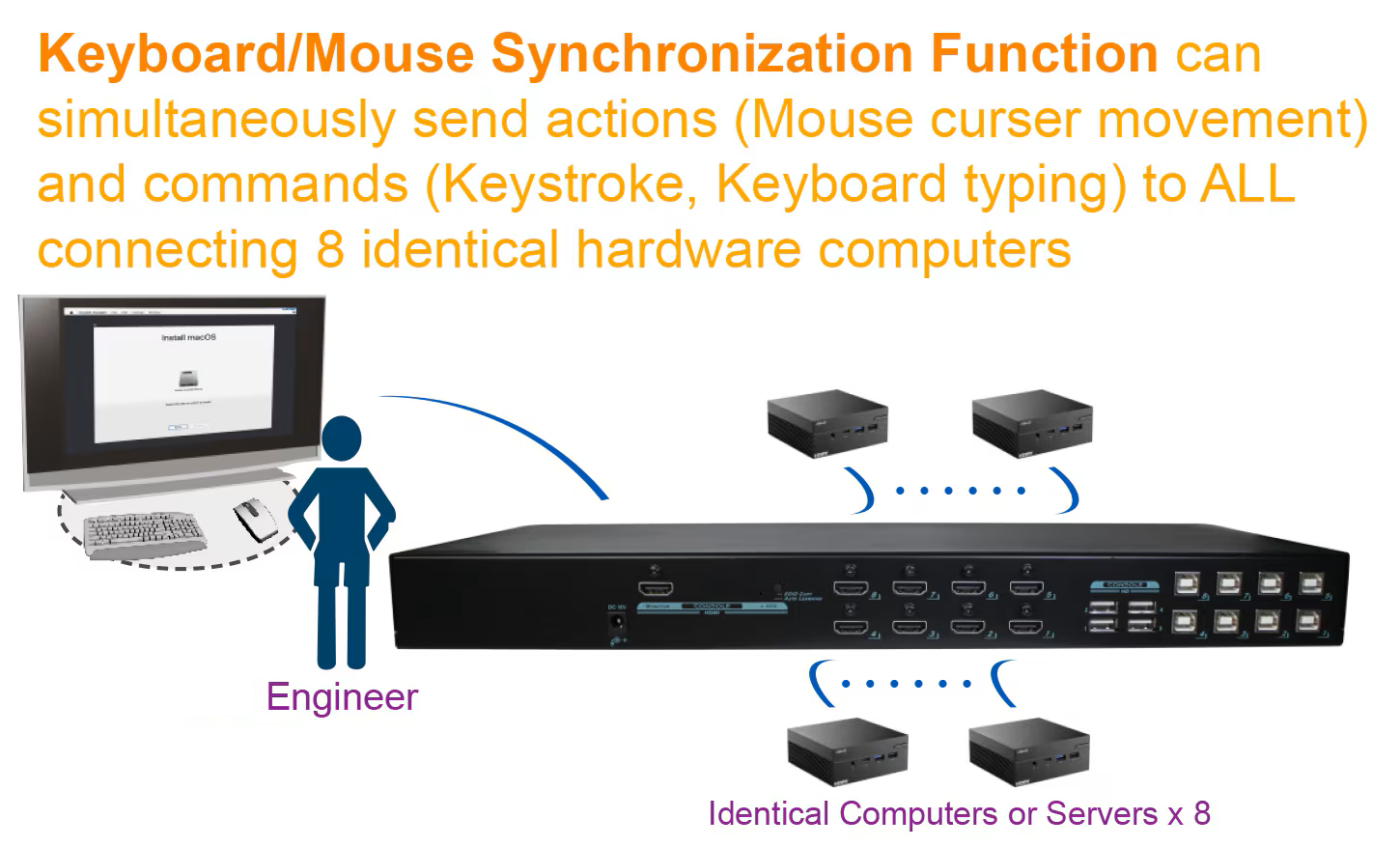

DKS-FH8H-U112 Application Diagram

· 8-Port 4K30 HDMI KVM Switch with 4 USB HID Peripheral Sharing

· Provides three control methods for the unit and connected PCs:

o Front-panel push buttons

o Hotkey control for easy computer access

o Mouse control mode enables switching via the programmable buttons on the connected mouse

· Selectable scan time intervals

· EDID copy and auto EDID learning functions to optimise display resolution for the application

· Built-in HDCP engine enables instant port switching, ensuring uninterrupted video playback with no image realignment after switching

· Plug-and-play system configuration with no software installation required

· Supports Windows and macOS host systems

· Mouse and Keyboard synchronisation function (Broadcast Mode):

o The KVM switch can simultaneously send actions (mouse movements) and commands (keyboard input) to all eight connected identical PCs, making it ideal for multi-computer system installation, configuration, and OS recovery.

Connection Diagram

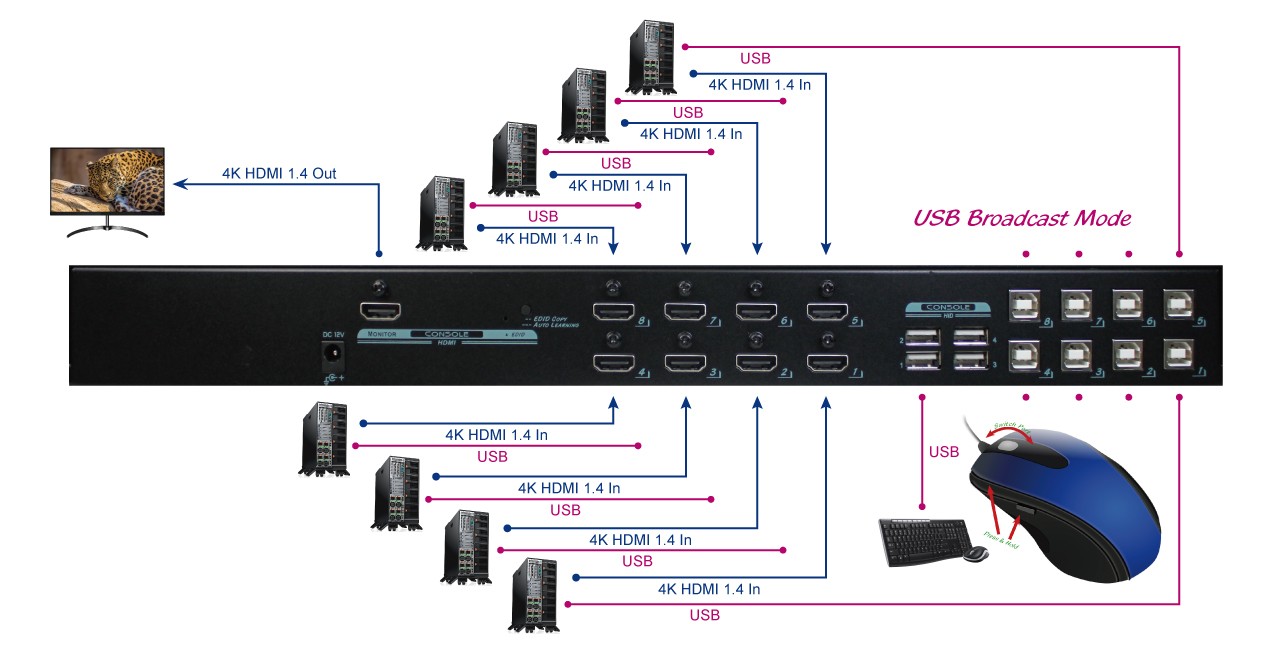

DKS-FH8H-U112 Connection Diagram
