C7A23-FRPVC-XXXBL
Introduction

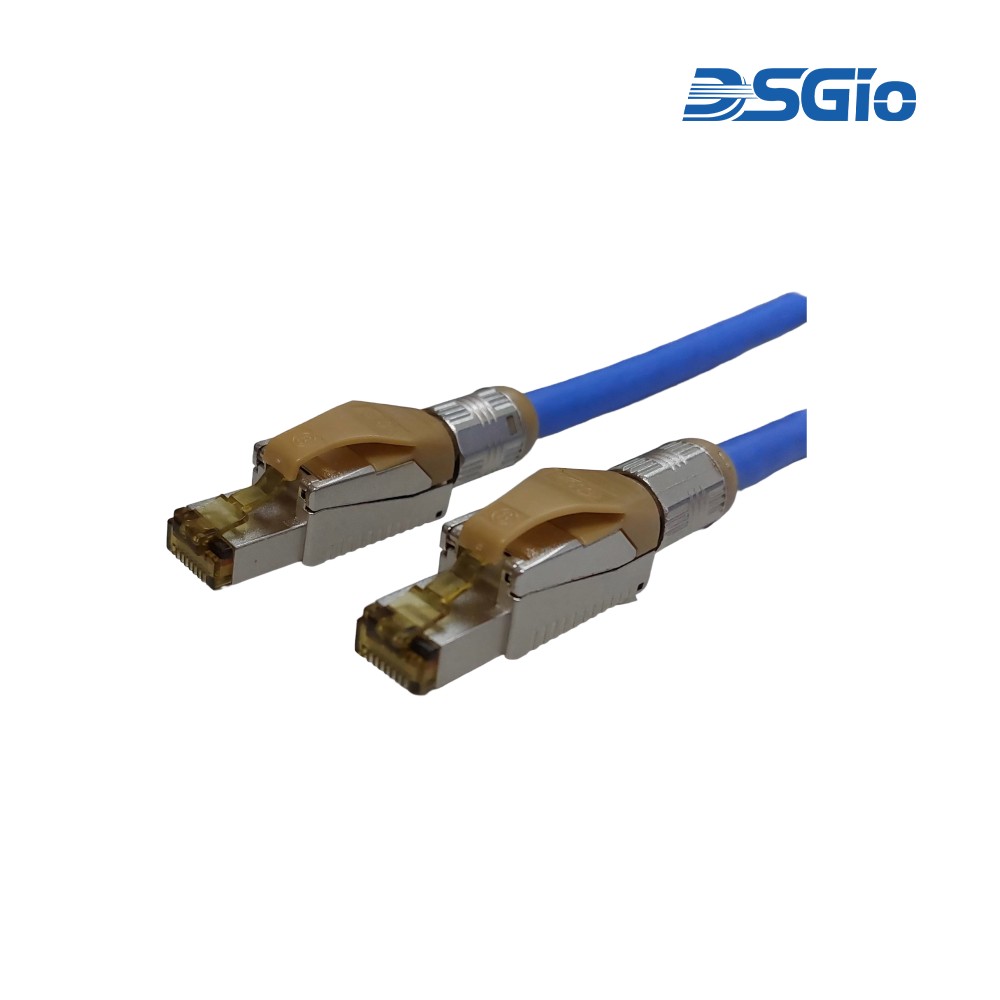

This assembled CAT.7A Ethernet cable integrates a high-performance S/FTP 23AWG solid bare copper CAT.7A CMR cable with a fully shielded zinc die-cast RJ45 termination plug, delivering reliable, low-noise transmission for high-bandwidth and mission-critical network applications.
Each twisted pair is individually foil-shielded and enclosed by an overall braided shield, while the metal RJ45 plug provides 360-degree grounding continuity to effectively suppress EMI and crosstalk.
Designed to meet ISO/IEC 11801 Class FA, IEC 61156-5, and HDBaseT 3.0 requirements, this pre-terminated cable supports frequencies up to 1000 MHz and is suitable for 10GBASE-T and beyond, including PoE/PoE+ powered devices. The robust mechanical construction ensures stable electrical performance, long mating life, and dependable operation in structured cabling, AV, and building backbone environments.

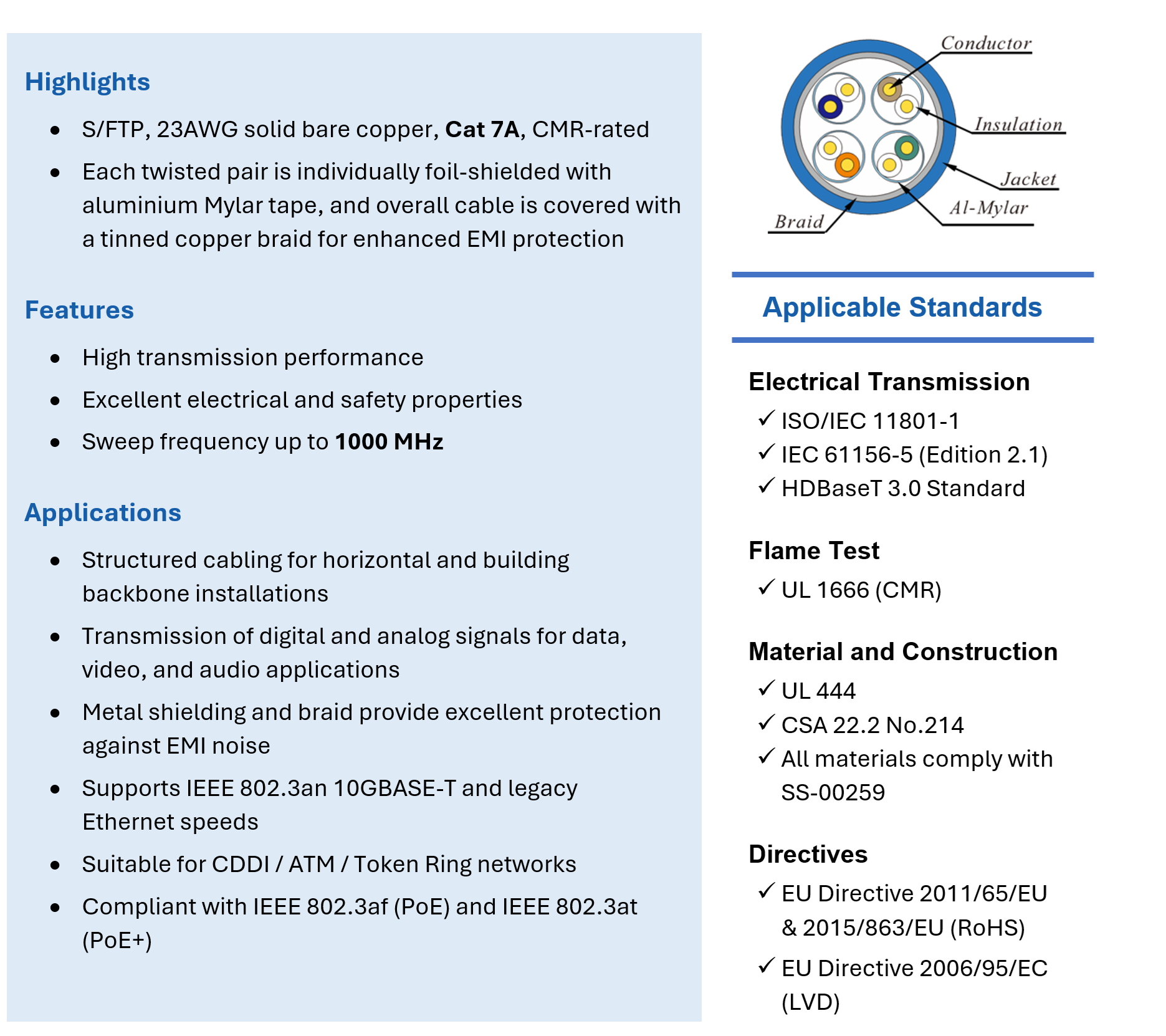

Key Feature Highlights
· CAT.7A / Class FA performance
Supports sweep frequencies up to 1000 MHz, exceeding IEEE 802.3an 10GBASE-T requirements
· Superior shielding design (S/FTP)
Individually foil-shielded pairs with overall tinned-copper braid (>40% coverage) for excellent EMI and noise immunity

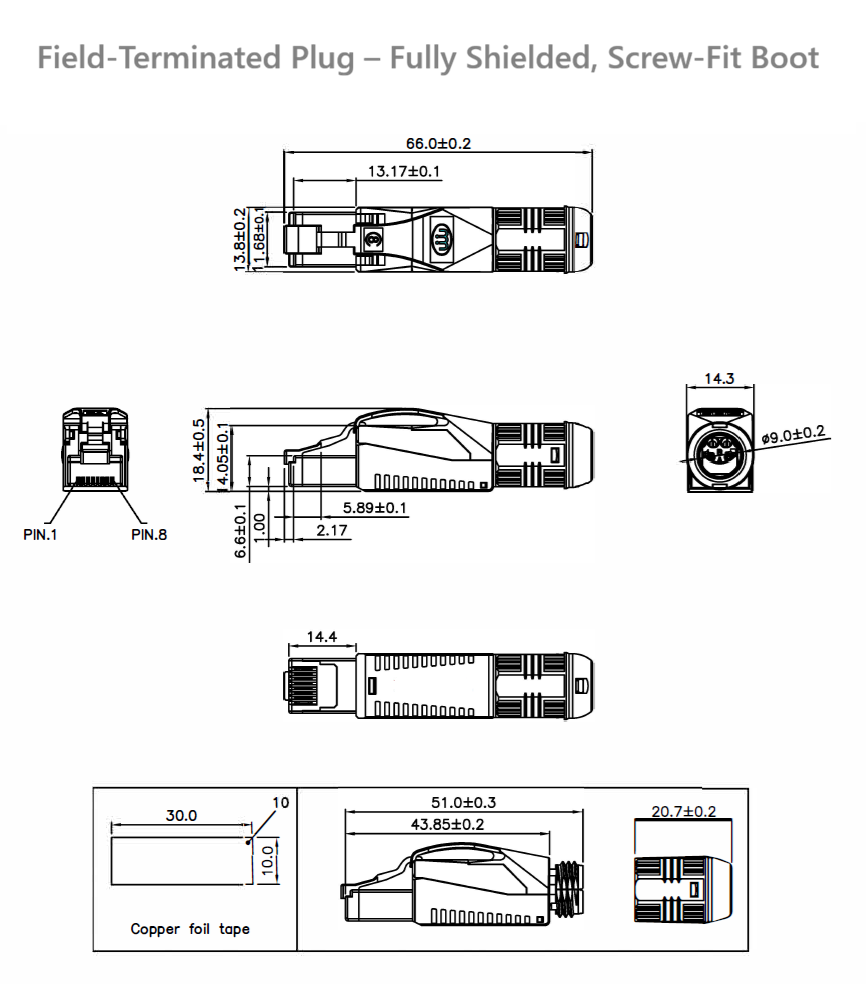

· Fully shielded metal RJ45 plug
Zinc die-cast housing, cover, grounding contact, and boot provide 360-degree shielding and secure grounding continuity
· High-quality contact system
Phosphor bronze contacts with nickel under-plating and minimum 50 µin gold plating on contact area for stable, low-resistance connections
· 23AWG solid bare copper conductors
Low DC resistance and stable transmission characteristics for high-speed and long-term installations
· PoE and PoE+ ready
Compatible with IEEE 802.3af and IEEE 802.3at powered devices
· HDBaseT™ 3.0 compliant
Suitable for high-resolution AV, control, and data transmission over twisted-pair cabling
· Robust mechanical reliability
≥750 RJ45 mating cycles, strong plug retention, and screw-fit boot design for secure termination
· CMR flame-rated jacket
FR-PVC jacket compliant with UL 1666 (CMR) for vertical and building backbone installations
· Wide operating temperature range
Designed for reliable operation in typical commercial and structured cabling environments
