Fiber Optic Patch Cords

Fiber Optic Patch Cord Portfolio

The Fiber Optic Patch Cord series provides optical interconnection for telecommunications, data center, and enterprise network infrastructures. The cables are available in single-mode and multi-mode fiber types with a wide range of connector options including SC, FC, ST, LC, MU, E2000, LX.5, CS, and MTRJ, supporting different network interface requirements.

The patch cords support PC, UPC, and APC polishing types, providing low insertion loss and controlled return loss for stable optical signal transmission. Various cable jacket types such as PVC, LSZH, OFNR, and OFNP are available to meet different installation and fire-safety requirements.

The assemblies are designed for high mating durability and stable optical performance, and are compliant with Bellcore GR-326-CORE, with an operating temperature range of −40°C to 70°C.

Category: Fiber Optic Patch Cords

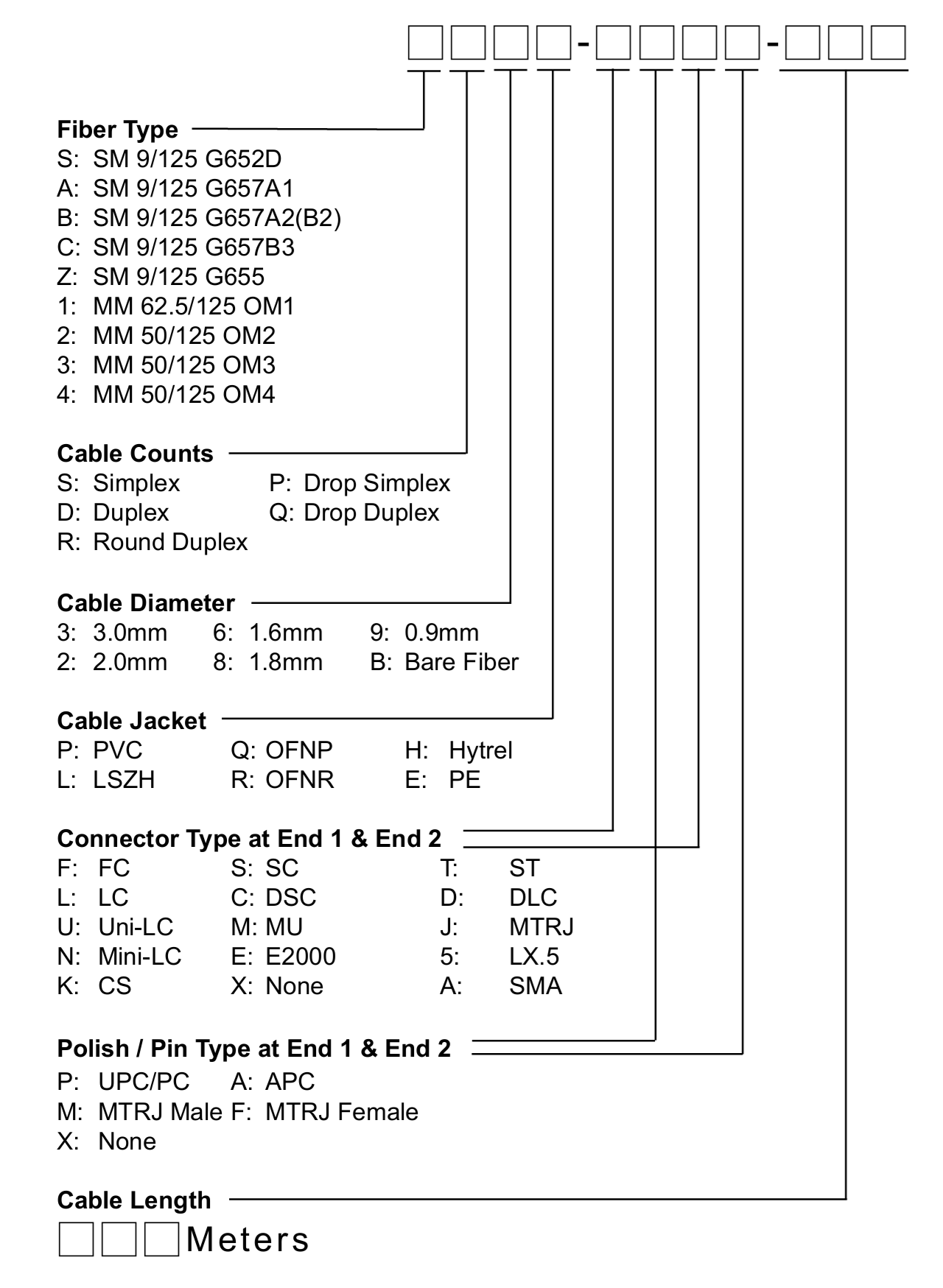

SKU: Refer to Product Ordering Code
Length: 2m, 3m, 5m, 10m

Contact Us Download to PDF

Overview

Product Features

Downloads

Indoor Fiber Patch Cords

DSGio’s patch cord provides a cost-effective and reliable solution for connections between fiber optic equipment and components. It offers easy installation, environmental stability, and excellent mechanical performance. DSGio’s patch cords are fully factory-terminated and tested to ensure compliance with GR-326-CORE standards.

General Patch Cord (Indoor)

o SC, FC, ST, LC, MU, E2000, MTRJ... Connectors

o SM / OM1 / OM2 / OM3 / OM4 fiber

o Cable Diameter: Bare Fiber / 0.9 / 1.6 / 1.8 / 2.0 / 3.0mm

o Simplex / Duplex / Round Duplex

o PVC / LSZH / OFNR / OFNP cable jacket

Applications

o FTTH / FTTB

o Telecommunications

o Test equipment

o LAN / WAN

o CATV
