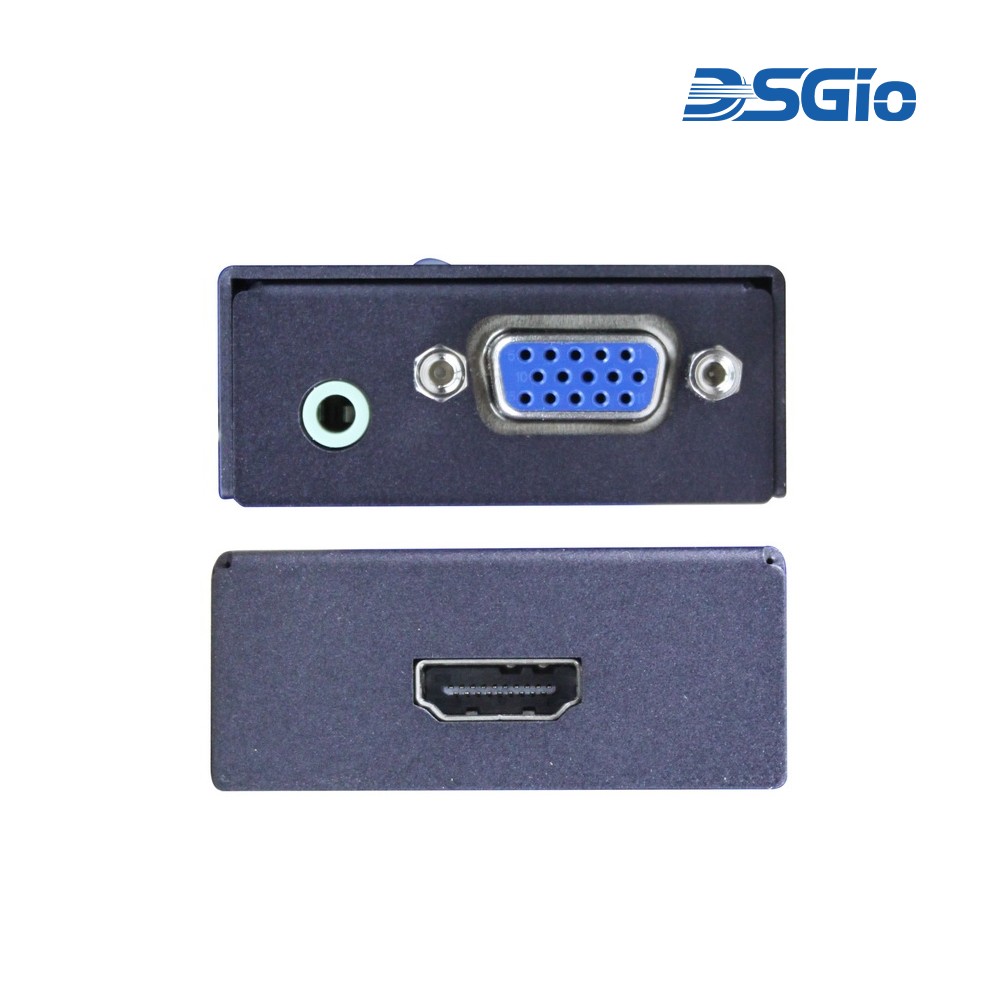

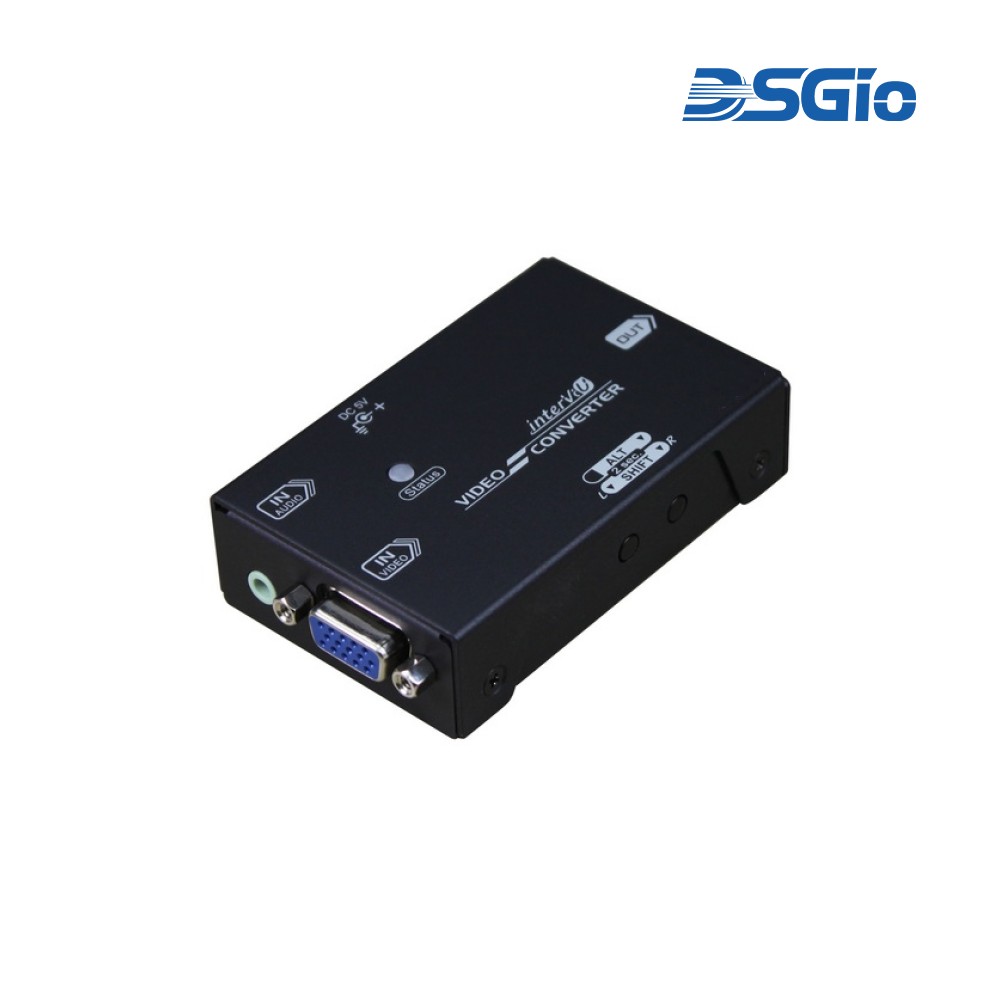

  • VC-AD-1V1H Front and Rear View

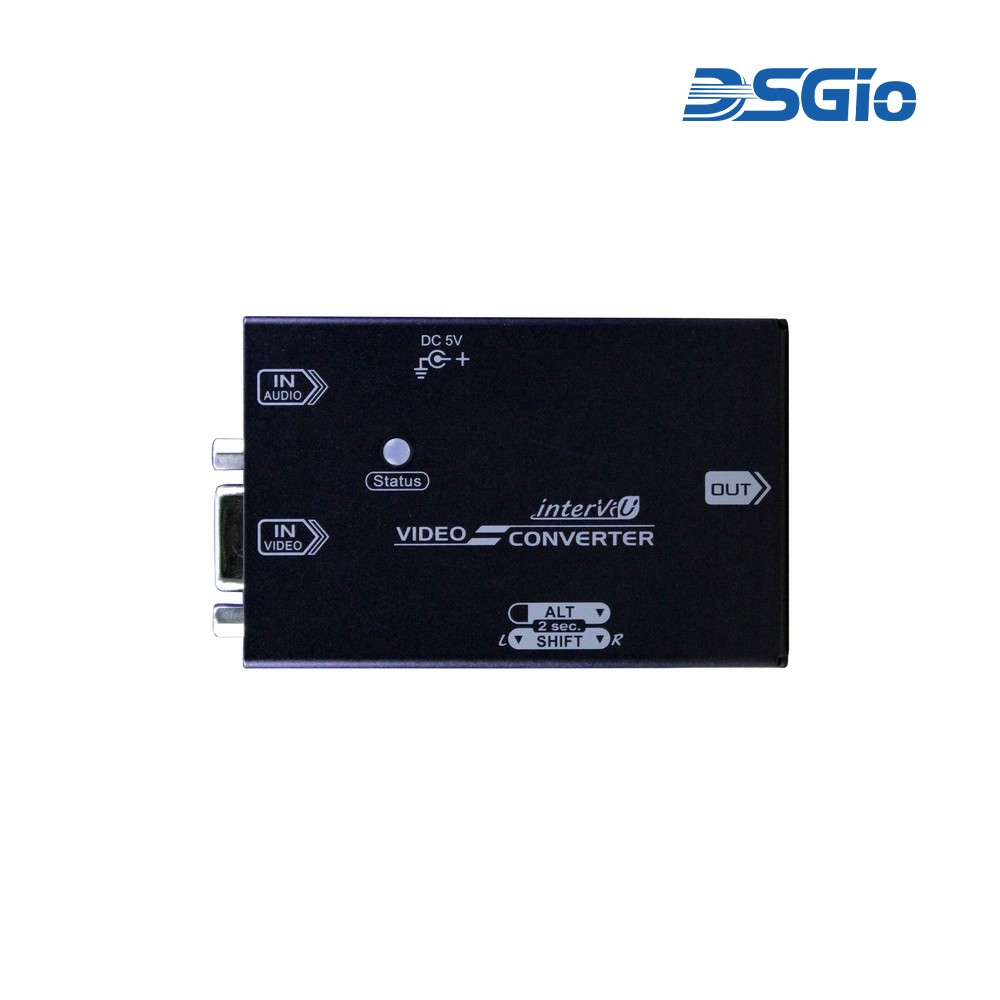

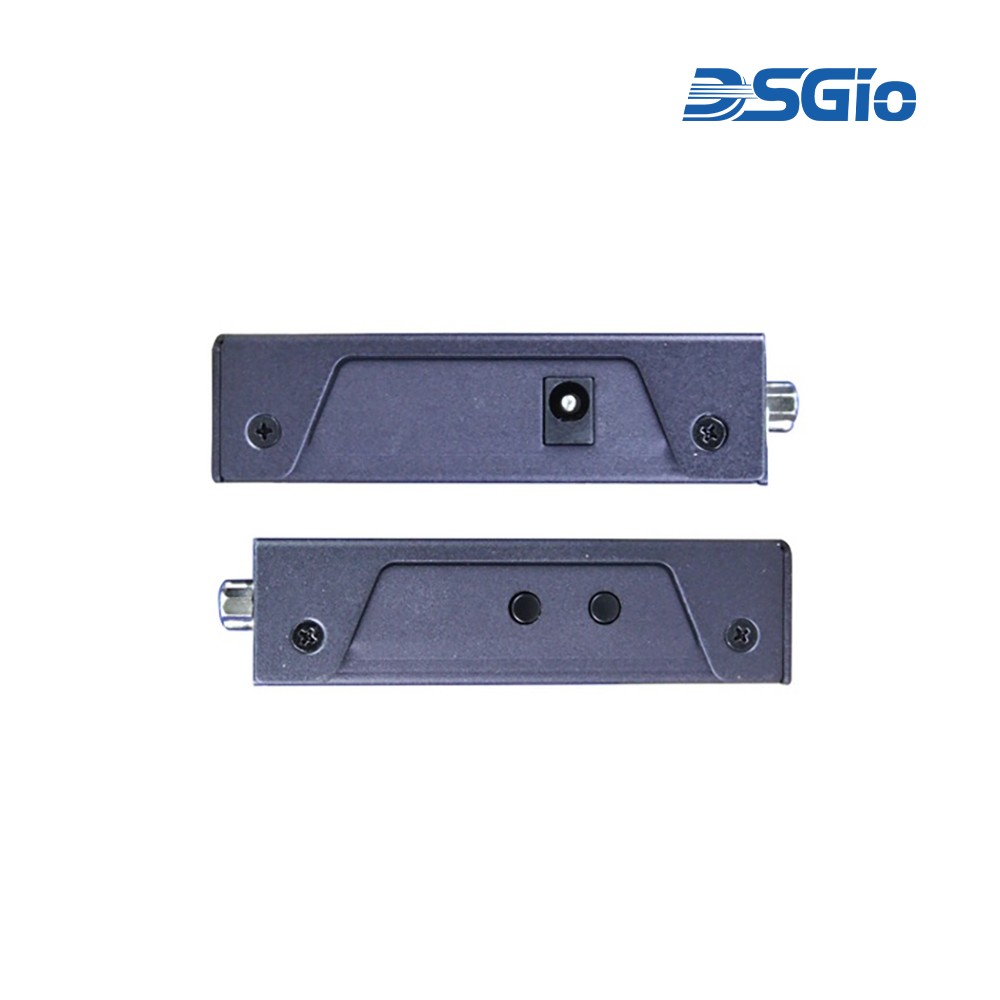

  • VC-AD-1V1H Side Views

VC-AD-1V1H

VGA to HDMI Converter, ADC Converter, Audio Embedding



This VGA to HDMI Converter converts VGA video and analog audio signals into a high-quality digital HDMI output, supporting resolutions up to Full HD (1920x1080) and QWXGA (2048x1152). Equipped with intelligent EDID processing for seamless Plug and Play operation, it ensures broad HDTV compatibility and stable performance across a wide range of popular video resolutions. The unit features LED status indicators for easy monitoring and troubleshooting, along with Screen Shift and Resolution Alteration modes to fine-tune image alignment and manage similar video timings. Fully compliant with HDMI v1.3 and supporting deep colour up to 12-bit, this device delivers smooth and vivid digital video output.





  • Category: Video Converters
  • SKU: VC-AD-1V1H
Download to PDF

Overview

Product Features

Connection Diagram

Downloads

VGA to HDMI Converter, ADC Converter, Audio Embedding

The VGA to HDMI Converter, VC-AD-1V1H, converts the analogue VGA and 3.5mm stereo audio signals to a digital HDMI signal.

The, VC-AD-1V1H, VGA to HDMI Converter's video adjustment function allows for horizontal image shift on the screen to synchronise frequency. The audio embedding function combines audio from a 3.5mm source with the HDMI signal, enabling users to incorporate the audio signal for more informative content in video postproduction, which is beneficial for conference calls, meeting rooms, or showroom applications.

With a compact design, Plug-n-Play functionality (no software or driver installation required), and HDMI 1.3 compliance, the VGA to HDMI Converter is compatible with most popular screen resolutions.

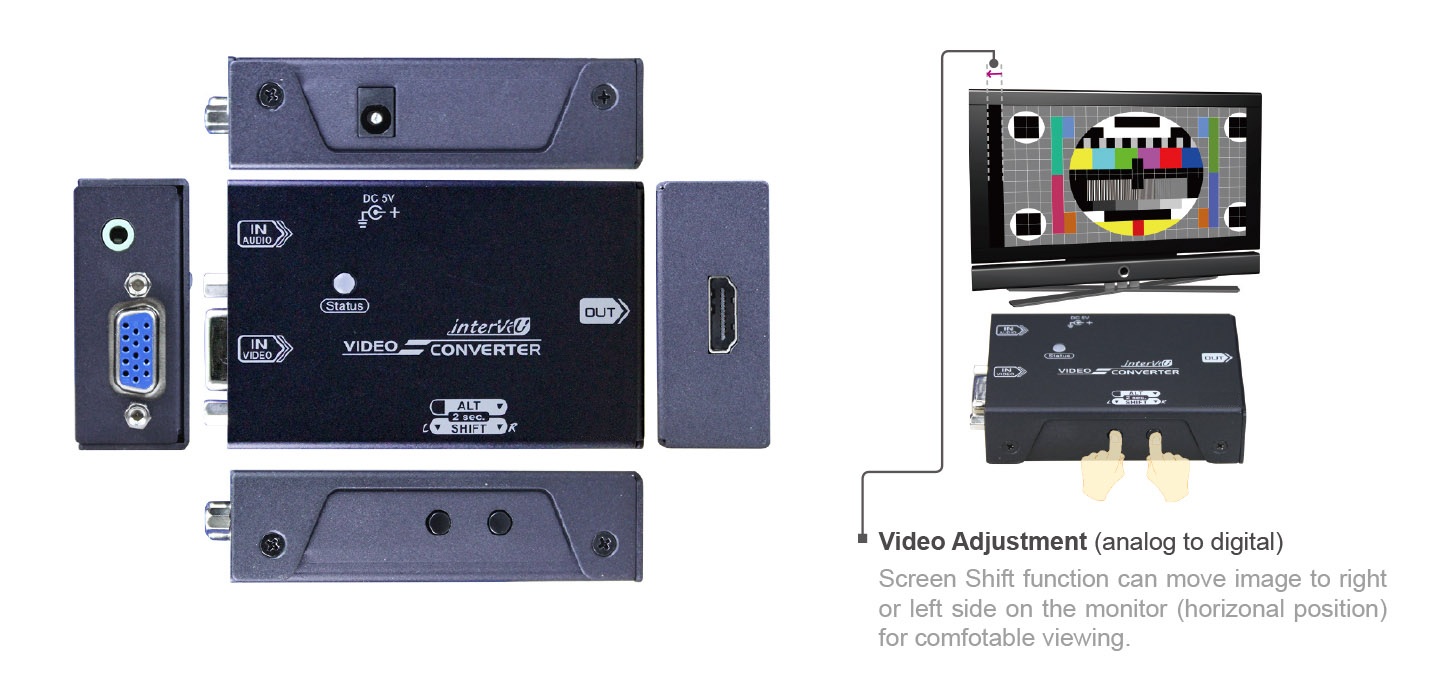

VC-AD-1V1H IO & Video Adjustment


·       Converts VGA and analog audio signals to a digital HDMI signal

·       Compliant with HDMI v1.3

·       Supports 8/10/12-bit deep color

·       Supports resolutions up to Full HD (1920 x 1080) and QWXGA (2048 x 1152)

·       Compatible with most popular video resolutions

·       Screen Shift Mode allows users to adjust image positioning

·       Resolution Alteration Mode supports capturing multiple similar video timings

·       LED status indicator for instant troubleshooting and monitoring

·       HDTV compatibility

·       Intelligent EDID handling and processing algorithm ensures Plug and Play operation for HDMI systems




Connection Diagram

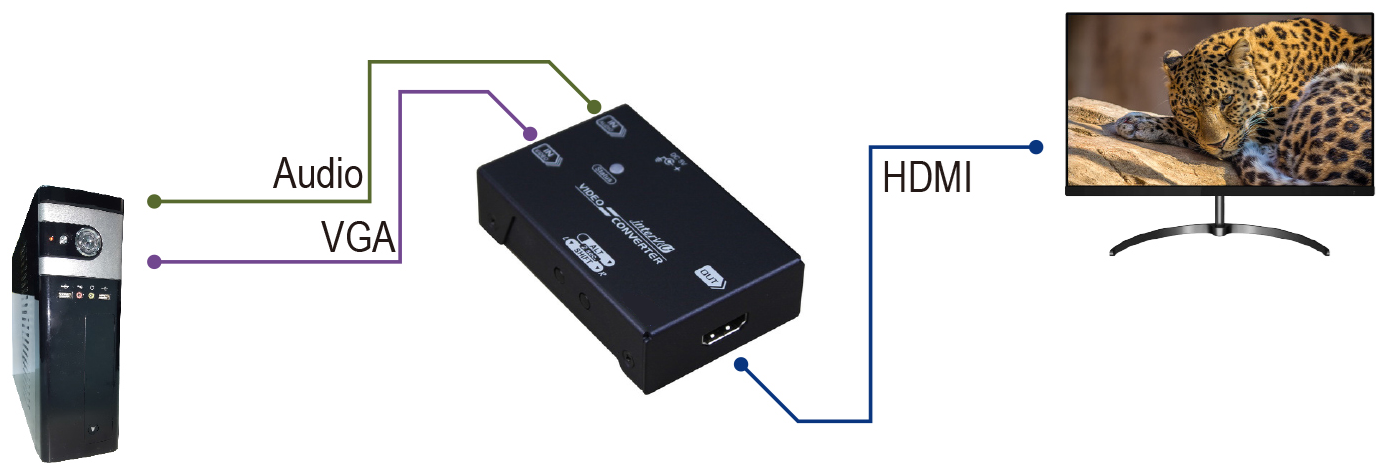

VC-AD-1V1H Connection Diagram


Datasheet

VC-AD-1V1H(图1)VC-AD-1V1H, VGA to HDMI Converter Datasheet Rev1.0 PDF


Manual

VC-AD-1V1H(图2)VC-AD-1V1H Manual RXN-VC-R02.1 PDF
