VC-4KD-HDMI

DP to HDMI Converter, 4K@60Hz, HDCP

The VC-4KD-HDMI is a DisplayPort to HDMI 2.0 active converter that supports resolutions up to 3840 x 2160 @60Hz (4:4:4). It features automatic EDID configuration, HDCP compliance, and supports deep color, 3D video, and a wide range of display resolutions. The device is plug-and-play with no driver required, includes a status LED, and enters power-saving mode when input is lost. TMDS clock support up to 600 MHz ensures full HDMI 2.0 compatibility.

Category: Video Converters
SKU: VC-4KD-HDMI

Contact Us Download to PDF

Overview

Product Features

Connection Diagram

Downloads

DP to HDMI Converter, 4K@60Hz, HDCP

The DP to HDMI Converter (model VC-4KD-HDMI) transforms 4K DisplayPort video into an HDMI 2.0 signal, supporting resolutions up to UHD 3840 × 2160 @ 60Hz. Its Auto EDID Configuration function ensures accurate video output.

With a compact design and plug-and-play functionality — no software or driver installation required — the VC-4KD-HDMI is HDMI 2.0 and HDCP compliant, and compatible with most popular screen resolutions.

· Active converter for transforming DisplayPort video signals to HDMI

· Simple LED indicator for user-friendly operation

· HDMI 2.0 output supports 4K@60Hz (4:4:4), Full HD 1080p with 12-bit Deep Colour, and 3D

· Supports HDCP content protection

· Automatically enters power-saving mode when input signal is lost

· Plug-and-play system configuration; no drivers required

· Compatible with most screen resolutions including XGA, SXGA, UXGA, WSXGA, Full HD, WUXGA, and UHD

· Fully compliant HDMI output, supporting up to 600 MHz TMDS clock

Connection Diagram

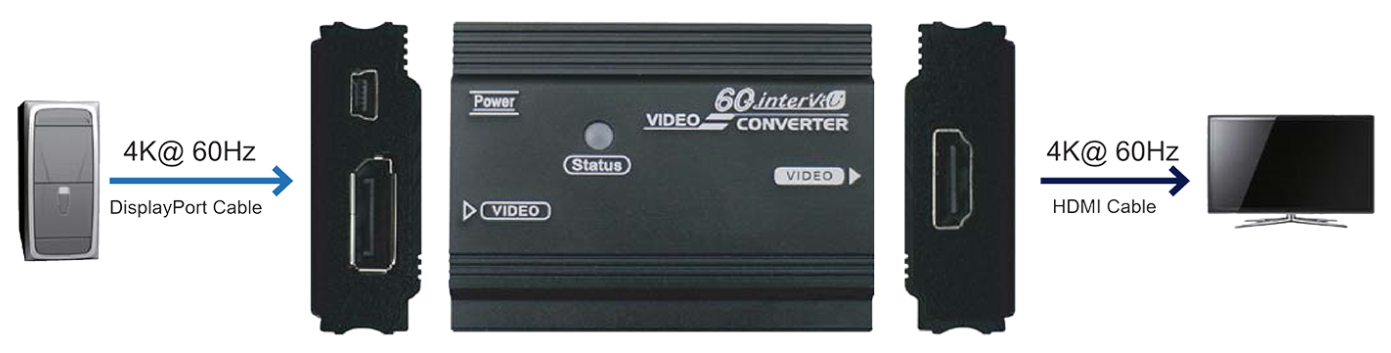

VC-4KD-HDMI Connection Diagram
