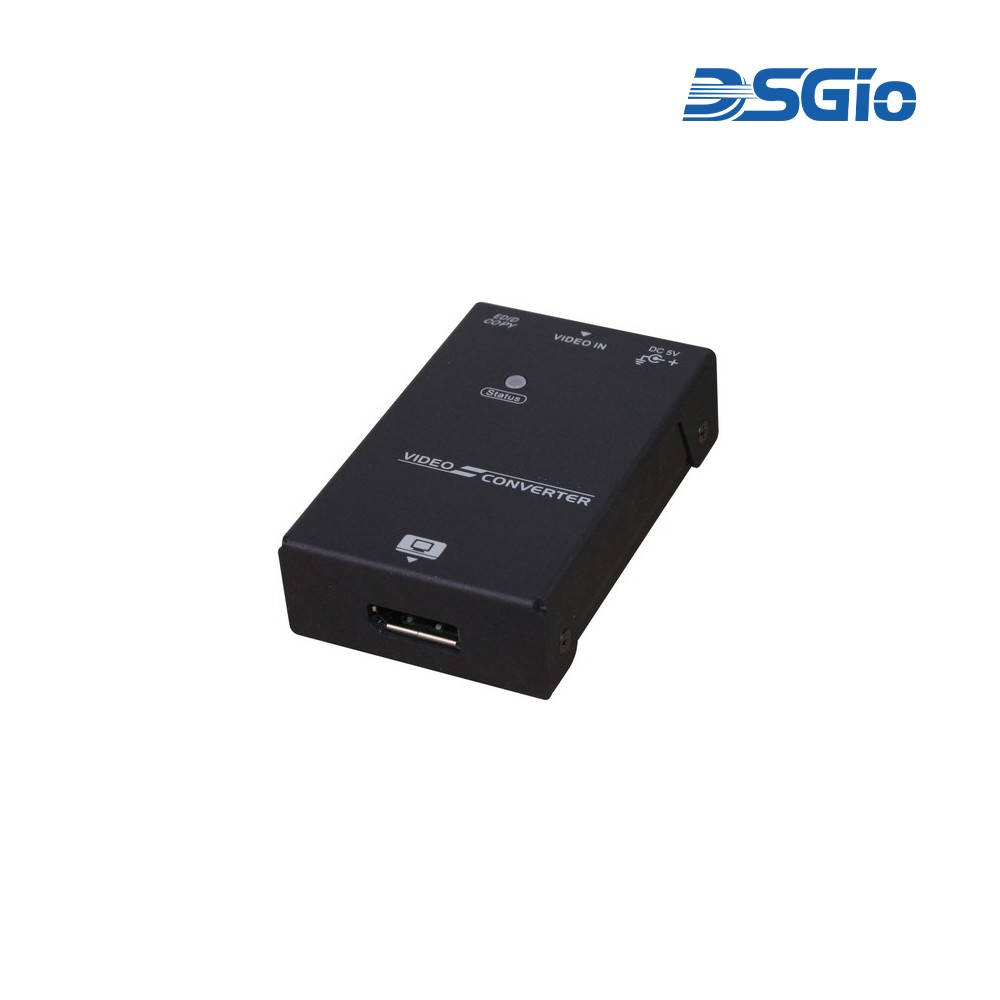

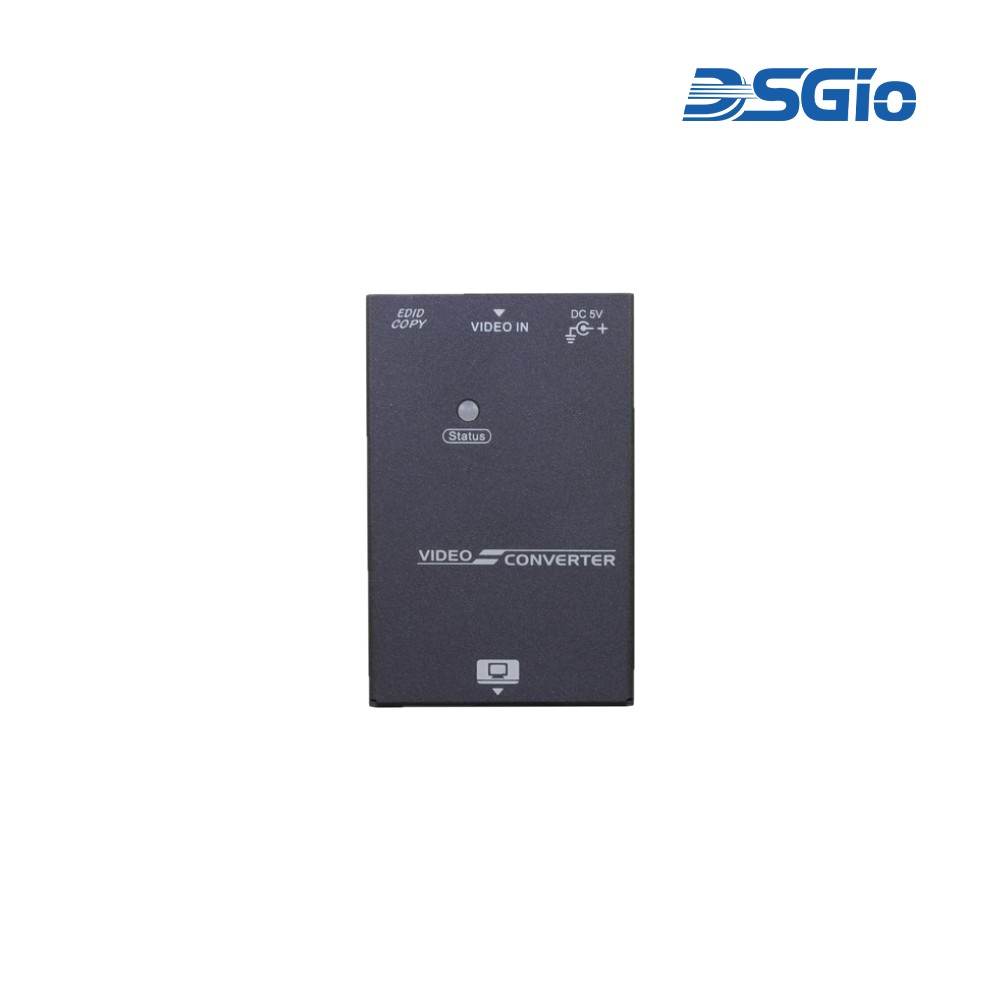

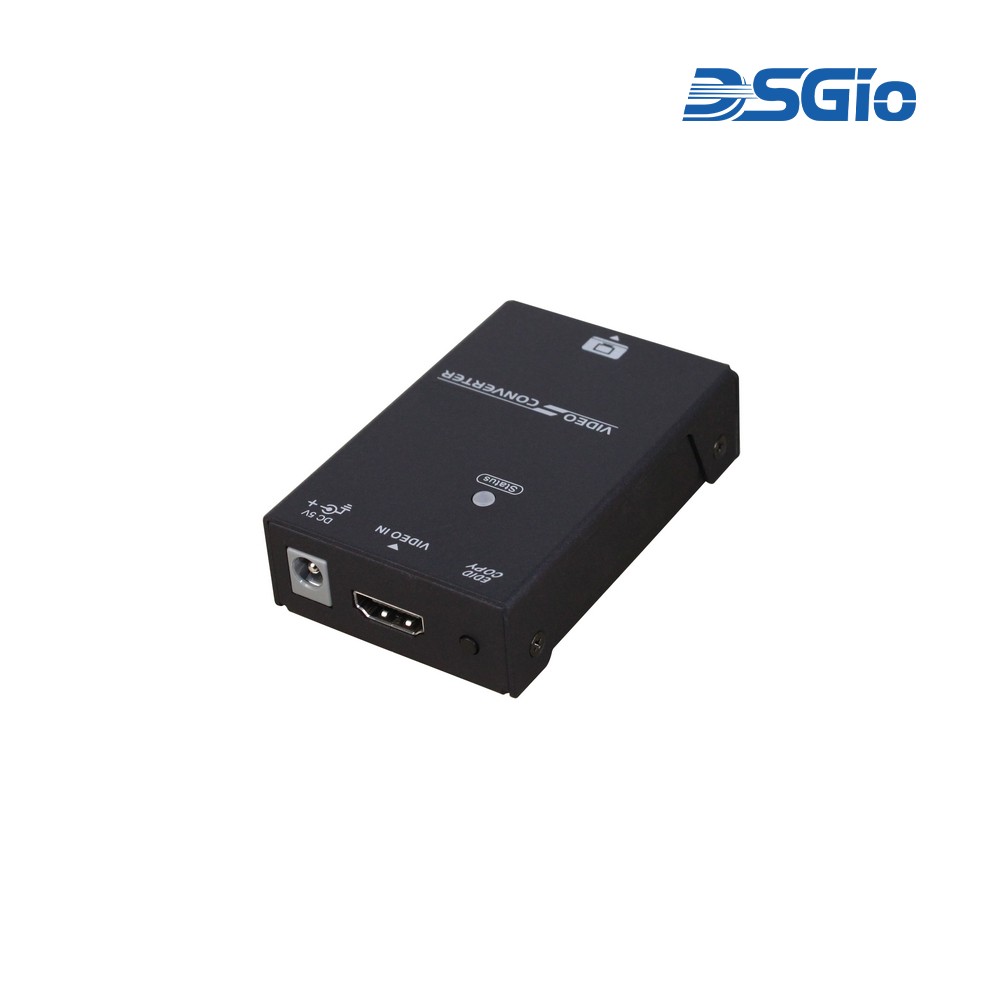

VC-FHH-DP
HDMI to DP Converter, 4K@30Hz, EDID Copy, HDCP
The HDMI to DP Converter VC-FHH-DP converts an HDMI video signal to DisplayPort output, supporting resolutions up to 4K@30Hz. The EDID Copy function allows the converter to either read the required EDID information from its internal settings or copy EDID data from an EDID-compliant display. This ensures that the video source is displayed at the optimal resolution and format without compatibility issues.
With a compact design and true plug-and-play operation, no software or driver installation is required. Compliant with HDMI 1.4 and HDCP standards, the VC-FHH-DP is compatible with most popular screen resolutions.
· Converts an HDMI source to DisplayPort
· Supports resolutions up to 4K@30Hz (4:4:4)
· HDMI 1.3b, up to 2.5 Gbps
o Supports 1080p with 12-bit Deep Color
o Up to 3.0 Gbps (300 MHz TMDS clock)
· HDCP support
· Compatible with popular screen resolutions up to 4K UHD
· Reads and stores (records) EDID from the connected display for video extension systems
· Supports DisplayPort audio
· True pixel-to-pixel signal transmission
· Hardware-based video converter; no driver or software required
· Compact size; economical, durable, and dependable

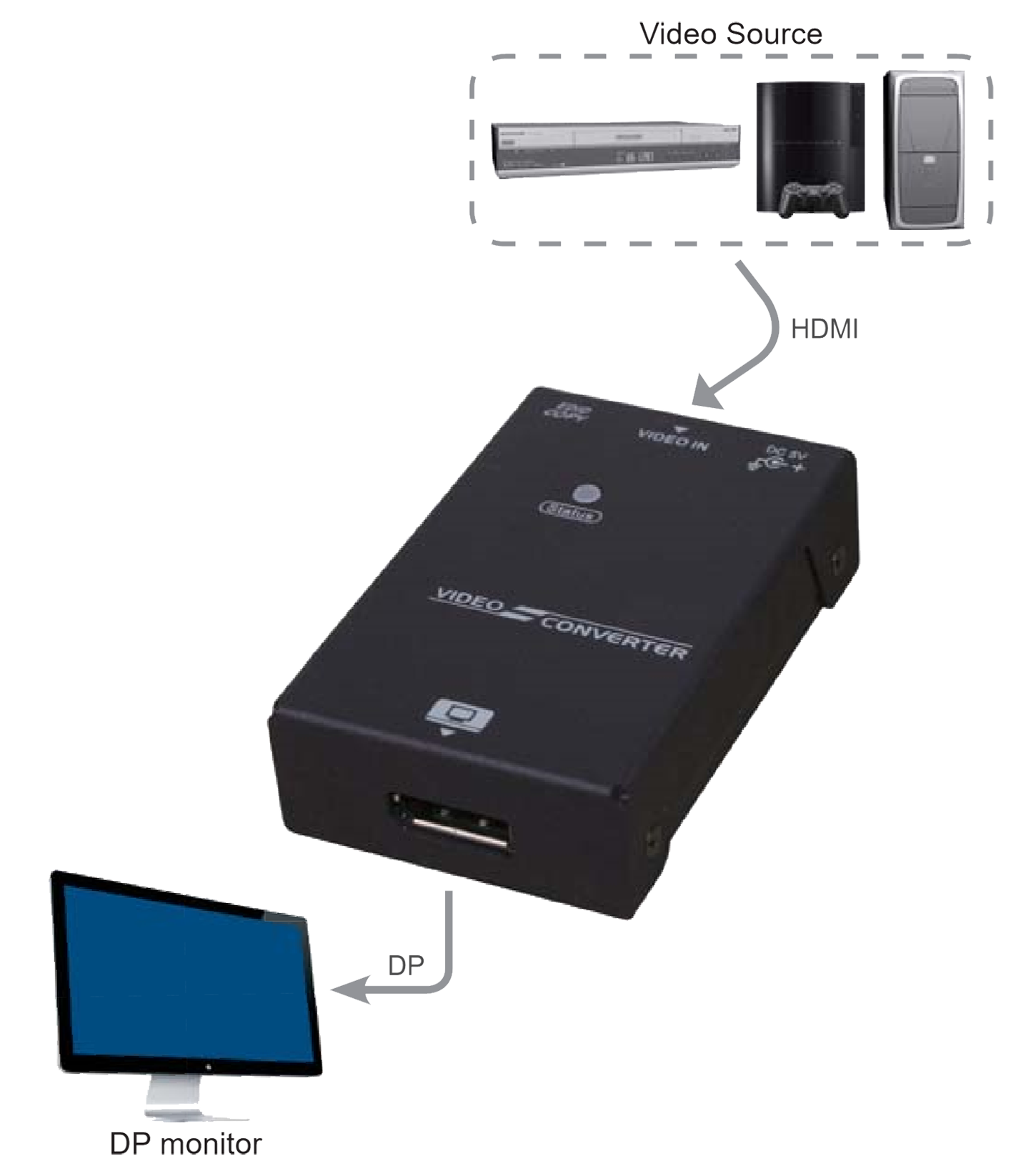

Connection Diagram
