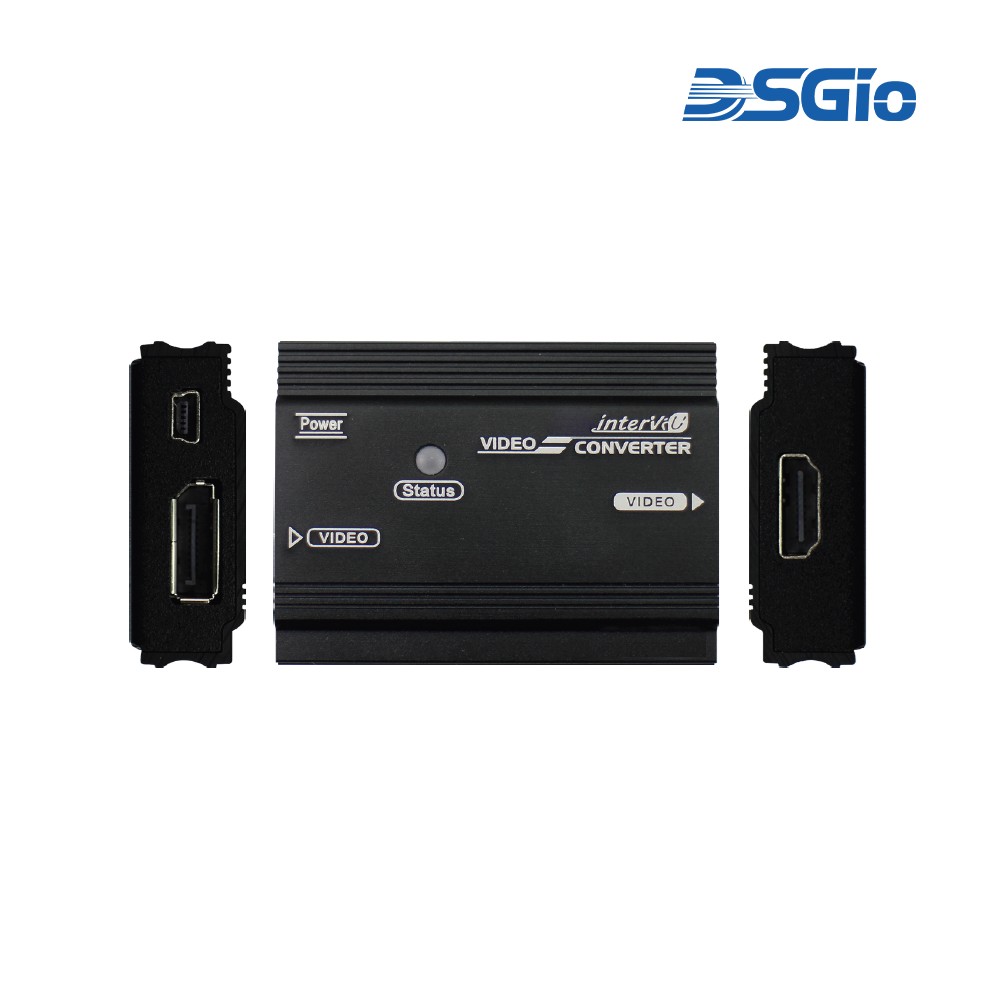

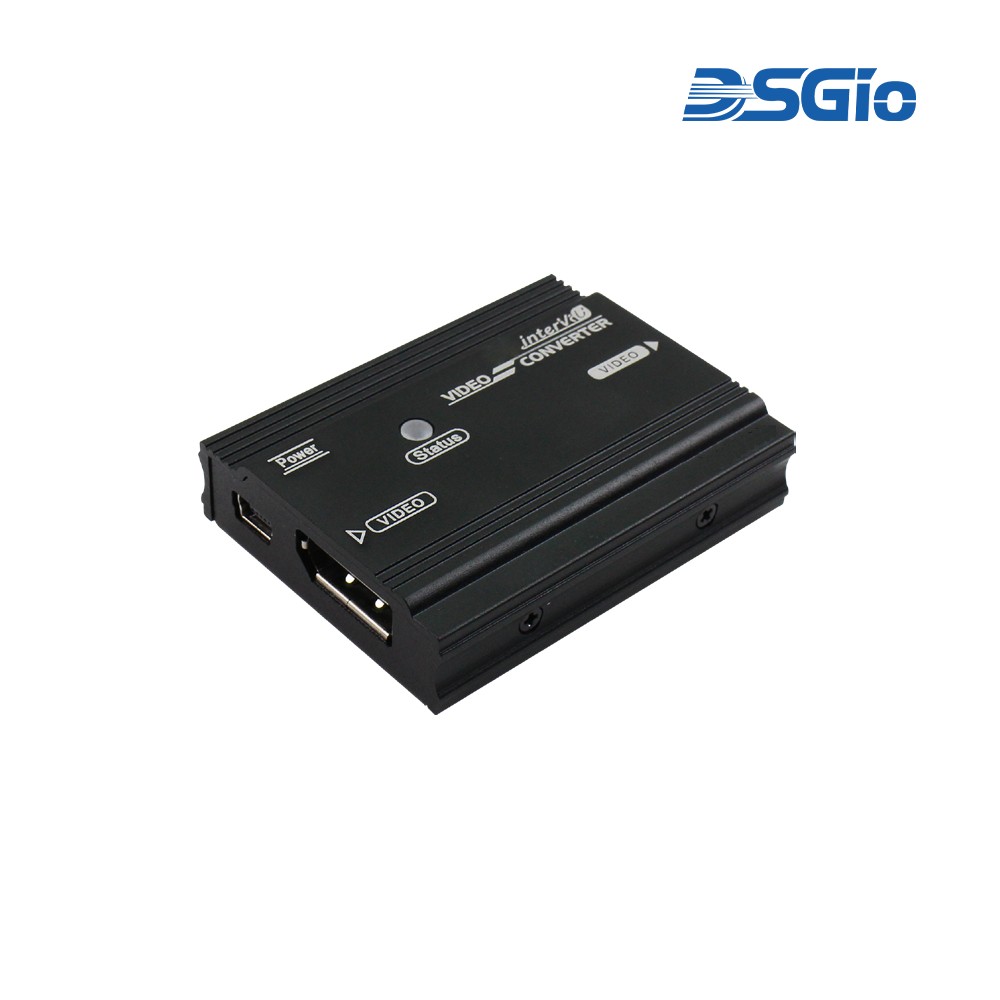

VC-FHD-HDMI
4K@30Hz DisplayPort to HDMI Converter with EDID Copy, HDCP Function and supports DP++ Mode
The VC-FHD-HDMI, DisplayPort to HDMI Converter, transforms 4K DP++ Dual-Mode video signals into HDMI, supporting resolutions up to 4K@30Hz. Its EDID Copy function allows the converter either to use stored EDID information from the unit itself or to copy EDID from an EDID-compliant display, ensuring every video source is displayed at the optimal resolution and format without compatibility issues.
With a compact design and true plug-and-play operation requiring no software or driver installation, the VC-FHD-HDMI is HDMI 1.4 and HDCP compliant, and is compatible with most popular screen resolutions.
· Converts DisplayPort Video Signals to HDMI
· Works with Video Cards Capable of Outputting DP++ (DisplayPort Dual-Mode) Signals
· Simple LED Indicator Makes Operation User-Friendly
· EDID Copy Function Ensures Optimal Video Presentation
· Supports HDCP Content Protection
· Automatically Enters Power-Saving Mode When Input is Lost
· Plug-and-Play System Configuration
· HDMI 1.4b Output Supports up to 3 Gbps, Including 4K x 2K, Full HD 1080p with 12-Bit Deep Colour, and 3D
· Fully Compliant HDMI Output with up to 300 MHz TMDS Clock
· Compatible with Most Popular Screen Resolutions, Including XGA, SXGA, UXGA, WSXGA, Full HD, WUXGA, and UHD Systems

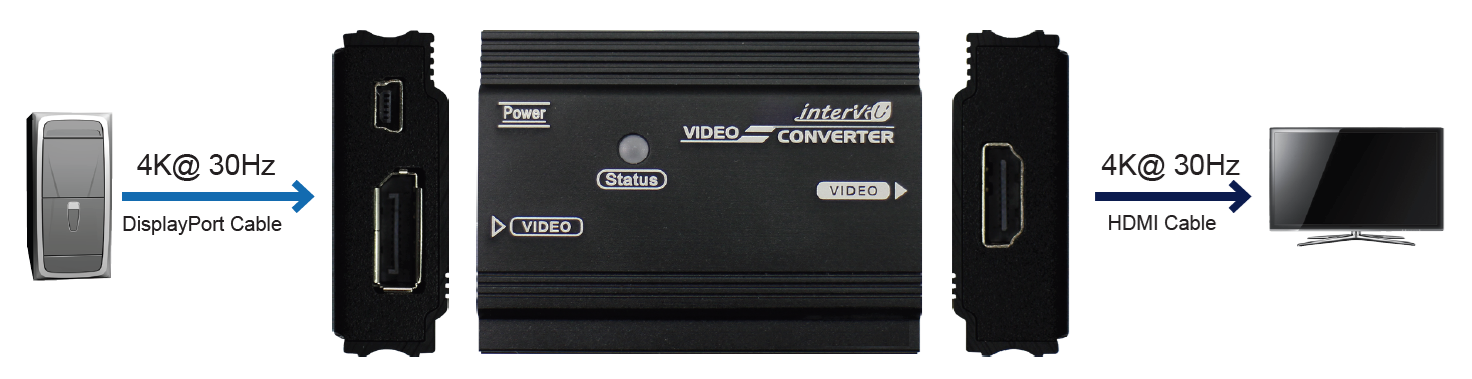

Connection Diagram
