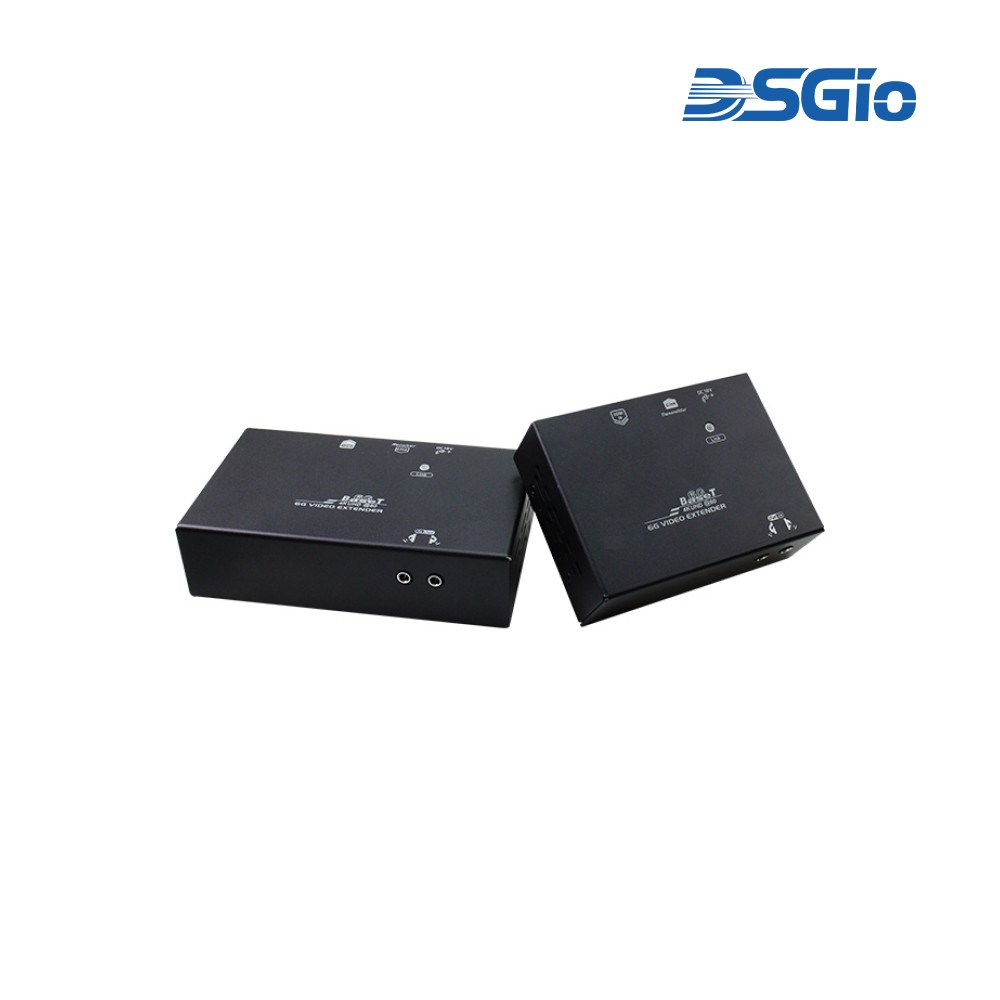

VEX-460C-70
The VEX-460C-70 transmits HDMI 2.0 video at 4K@60Hz (4:4:4) up to 70 meters, and 1080p up to 100 meters, through a single CAT5e/6/6a cable. This video extender supports Auto EDID functionality and complies with HDR and HDCP 2.2 requirements.
The bi-directional IR extension feature supports full-frequency IR signals from 38 kHz to 56 kHz, providing users with a more flexible and convenient way to install IR control systems.
Power over Cable (PoC) enables DC power transmission over a single Ethernet cable for distances up to 100 meters. With a single power supply required at either end of the extender units, the PoC function is especially useful in situations where no power socket is available on one side.
· Supports HDMI extension up to 70m (230ft) at 4K60, and up to 100m (328ft) at 1080P over CATx cable
· Supports HDMI 2.0 video resolutions up to 4K@60Hz (4:4:4)
· Complies with HDCP 2.2 and HDCP 1.4 standards for uninterrupted UHD video playback
· Delivers uncompressed HDBaseT video extension for crystal-clear image quality and low latency
· Supports bidirectional IR (38-56 KHz) extension for remote control of source device or display
· Supports PoC (Power over Cable), enabling power transmission from either Tx to Rx or Rx to Tx
· Ideal for hospitality (hotels, conference rooms), digital signage (airports, shopping malls), surveillance systems, whole-home networking, and point-to-point applications

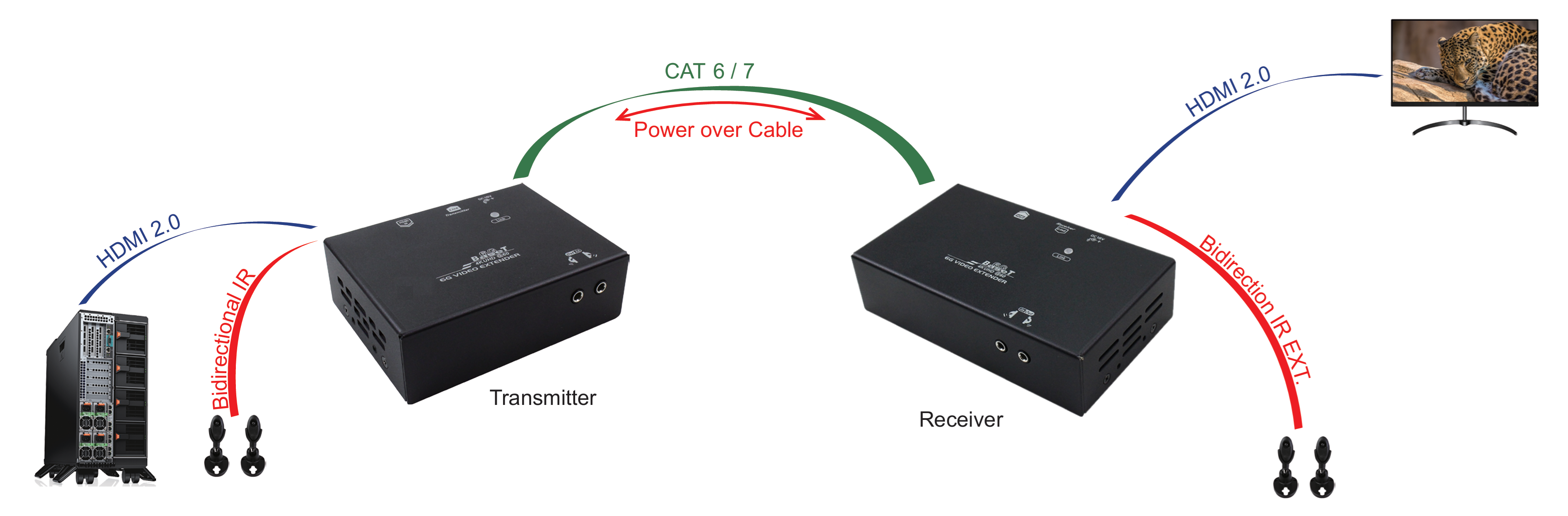

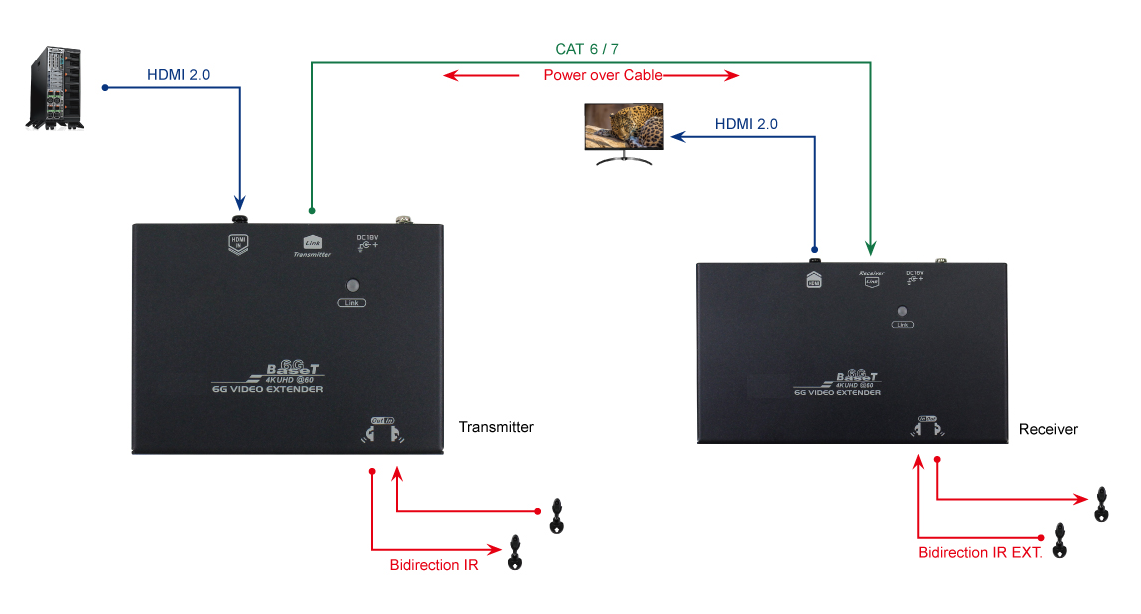

Connection Diagram
