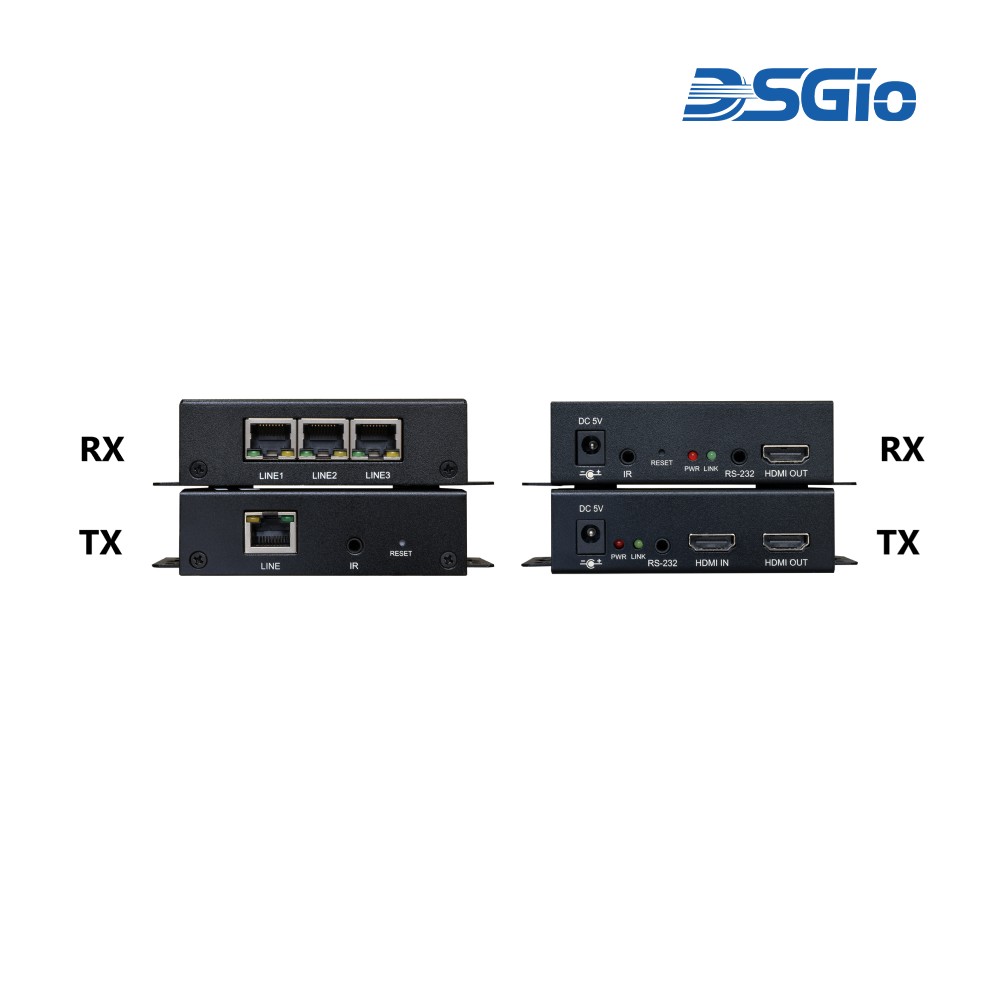

  • VEX-HDIP-H100, Panel Views

VEX-HDIP-H100

1080P HDMI IP Video Extender over CATx with Local Out, 1-Way IR, RS-232, Chainable, 100m



The HDMI Chainable Extender over CAT.5e/6 transmits uncompressed HDMI video and Stereo 2.0 audio over a single CAT.5e or CAT.6 cable up to 100 meters (330 ft) between a source and remote display. Each TX and RX pair supports resolutions up to 1920 × 1080 @60Hz (Full HD 1080p) and is compatible with 720p and 1080i HDTV formats. The receiver units are cascade-chainable up to 10 layers, with each receiver capable of linking two additional receivers to extend distribution in daisy-chain or tree topology, adding up to 100 meters per layer. The system supports DDC/DDC2/DDC2B for EDID communication, RS-232 serial pass-through, and unidirectional IR control (receiver to transmitter) for remote device management. A local HDMI loop output on the transmitter enables simultaneous local monitoring while extending the signal, with RJ-45 ports used for long-distance transmission and cascading. LED indicators provide power and link status during operation.





  • Category: Video Extenders
  • SKU: VEX-HDIP-H100
Download to PDF

Overview

Product Features

Connection Diagram

Downloads

1080P HDMI IP Video Extender over CATx with Local Out, 1-Way IR, RS-232, Chainable, 100m

The HDMI Chainable Extender over CAT5e/6 extends HDMI video and audio signals up to 100 meters between a source device (computer or media player) and a display (monitor or projector). With built-in signal enhancement for both video and audio, it maintains stable transmission with high-quality video and stereo audio performance. No additional software is required. The system is easy to install and operate, making it suitable for scalable video and audio extension applications.

1-to-1 Connection

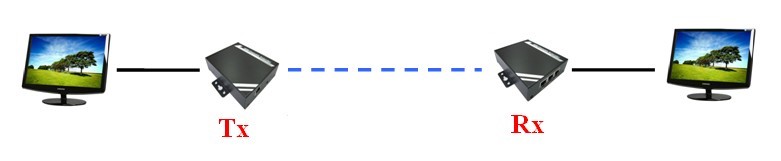

VEX-HDIP-H100 1-to-1 Connection

Cascadable

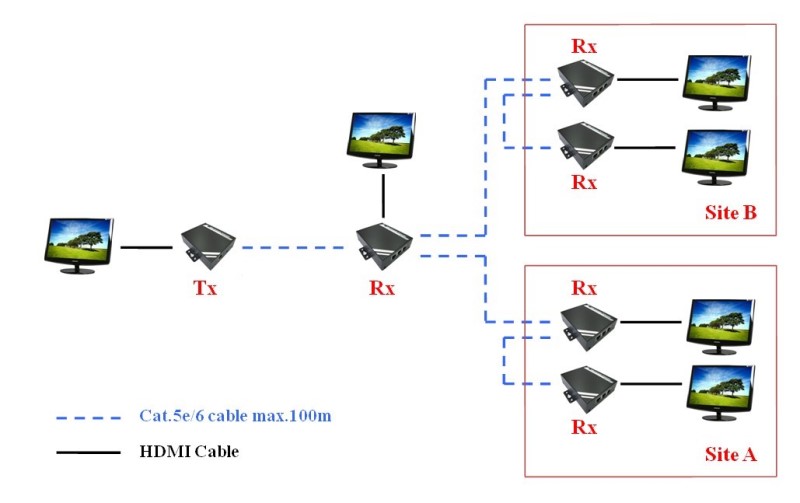

VEX-HDIP-H100 Cascadable


·       Cascade-able Receiver design; each receiver unit can be linked to two additional receivers to extend the signal by another 100 m per stage

·       Supports tree or daisy-chain cascade architecture for flexible expansion

·       Easy installation using cost-effective CAT5e/6 cables

·       Each TX/RX pair extends signals up to 100 m (330 ft)

·       Supports video resolutions up to 1920 × 1080 @ 60 Hz (Full HD 1080p)

·       HDTV compatible (720p / 1080i / 1080p)

·       Supports stereo audio (2.0)

·       Supports up to 10 cascade layers

·       Supports RS-232 (serial control)

·       IR (infrared remote control) pass-through (Rx-to-Tx)

·       Includes local HDMI monitoring port

·       Wall-mountable design



Connection Diagram

Connection 1-to-1

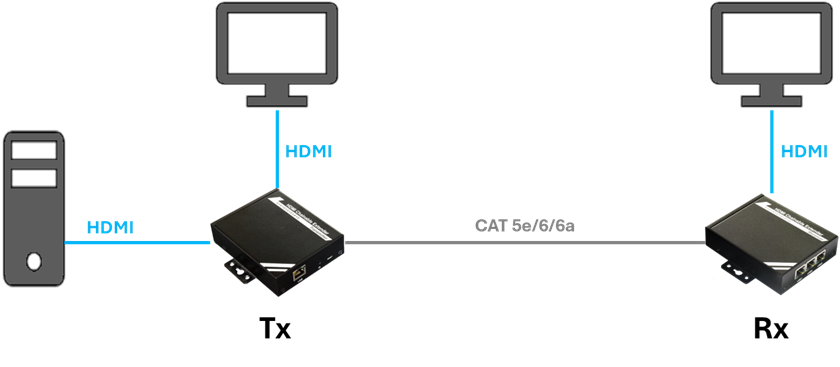

VEX-HDIP-H100 1-to-1 Connection


Connection 1-to-Many

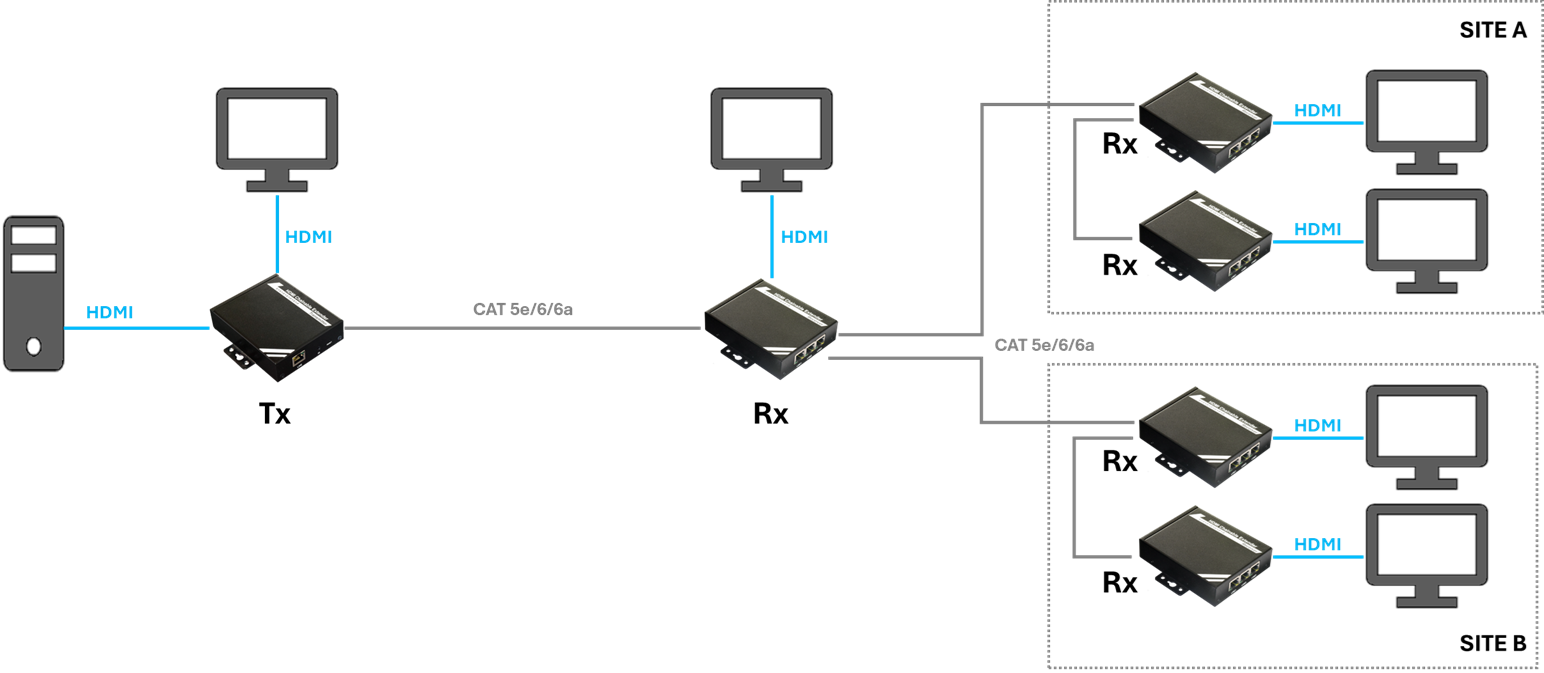

VEX-HDIP-H100 1-to-Many Connections



Datasheet

VEX-HDIP-H100(图1)VEX-HDIP-H100, IP Video Extender Datasheet Rev1.0 PDF
