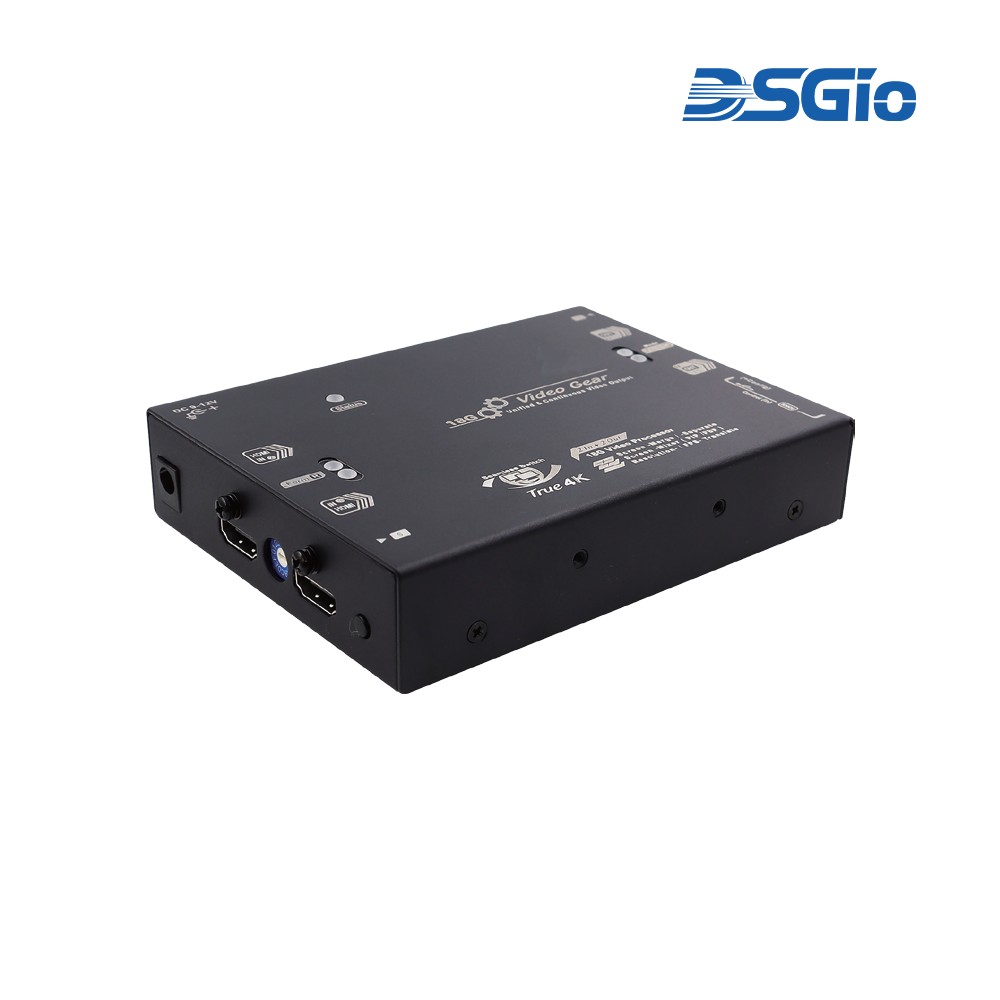

VP-4KH-0202
Video Processor – 4K60 2x2 HDMI Video Processor and Scaler with PiP, PbP, Switch-Splitter, Multiplex, Split Functions, EDID Management, and Serial Control

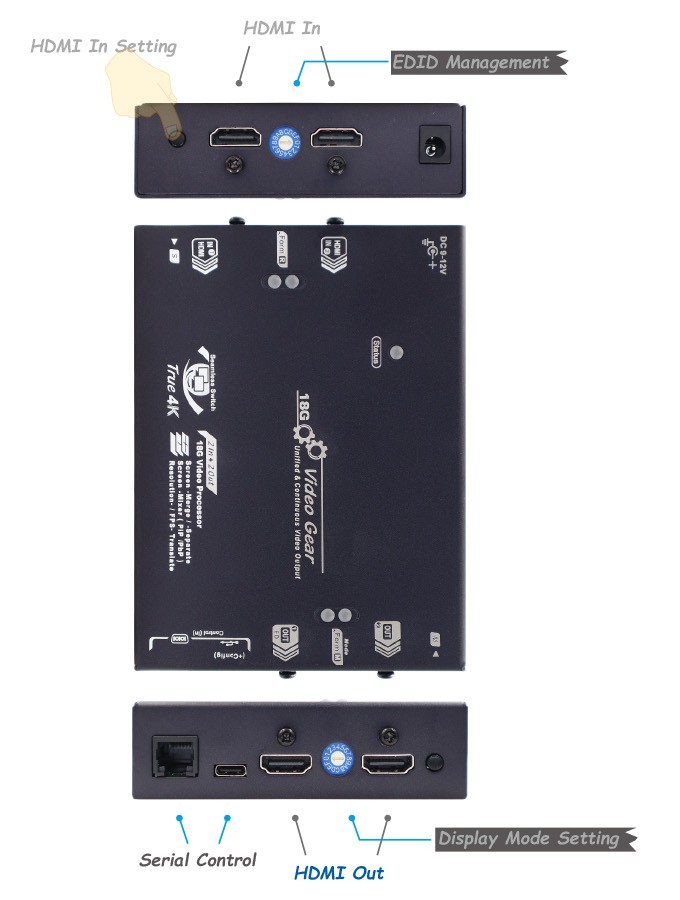

The VP-4KH-0202 is a 4K60 2×2 HDMI video processor with two HDMI inputs and two HDMI outputs, supporting multiple display modes including PiP, PbP, multiplex, split, and switch-splitter modes. Incoming HDMI signals are processed and displayed on TVs or projectors with resolutions up to 4096x2160 at 60 Hz (4:4:4). Two rotary switches on the side of the unit provide full EDID management and flexible display layout configuration.
HDMI Video Processor: 16x16 Preset EDIDs for Resolution and Display Mode Configuration

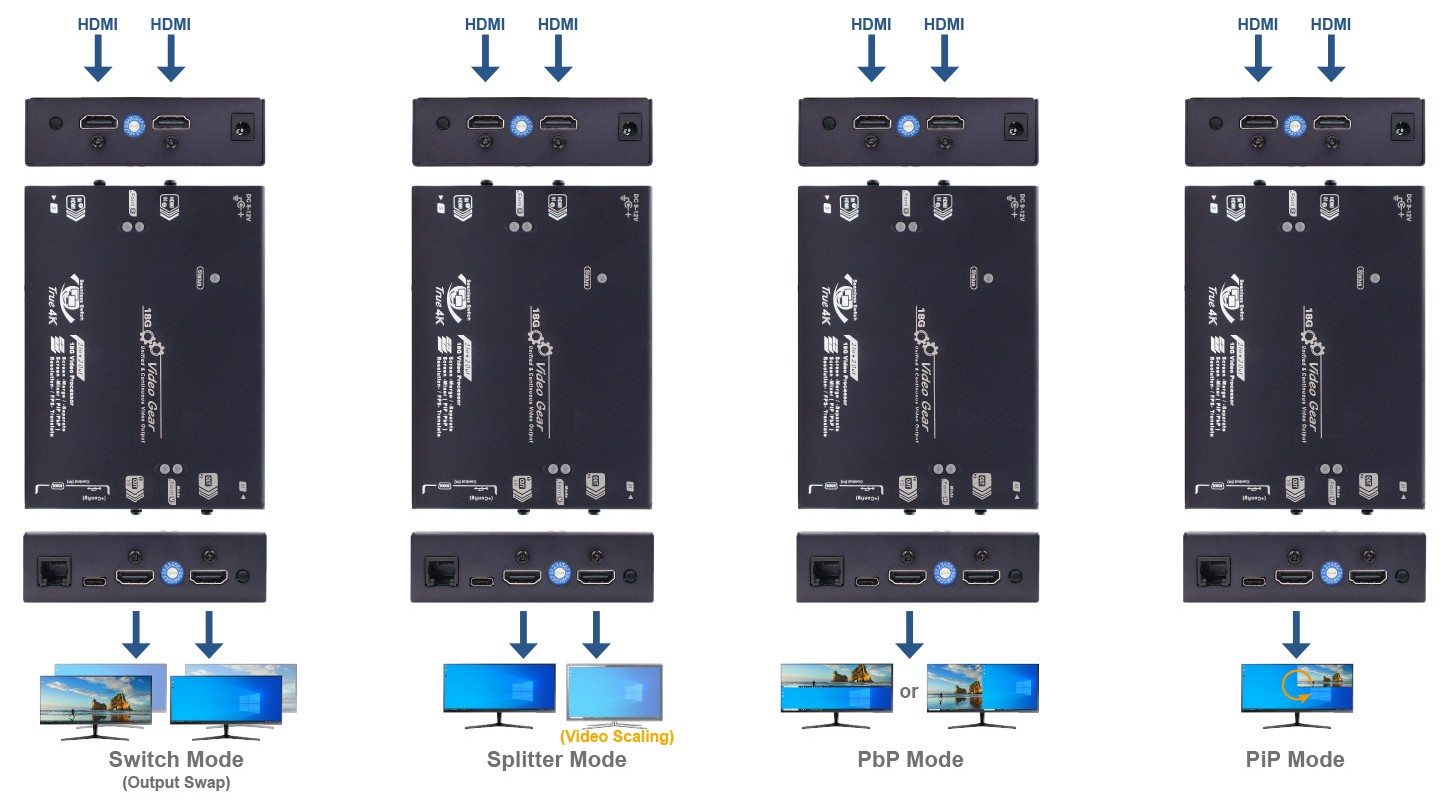

The VP-4KH-0202 integrates the functions of an HDMI switcher, splitter, multiplexer, video wall controller, and video scaler into a single video processing system. It supports six display modes: switch mode, splitter mode, picture-by-picture (PbP), picture-in-picture (PiP), multiplex mode, and split mode.

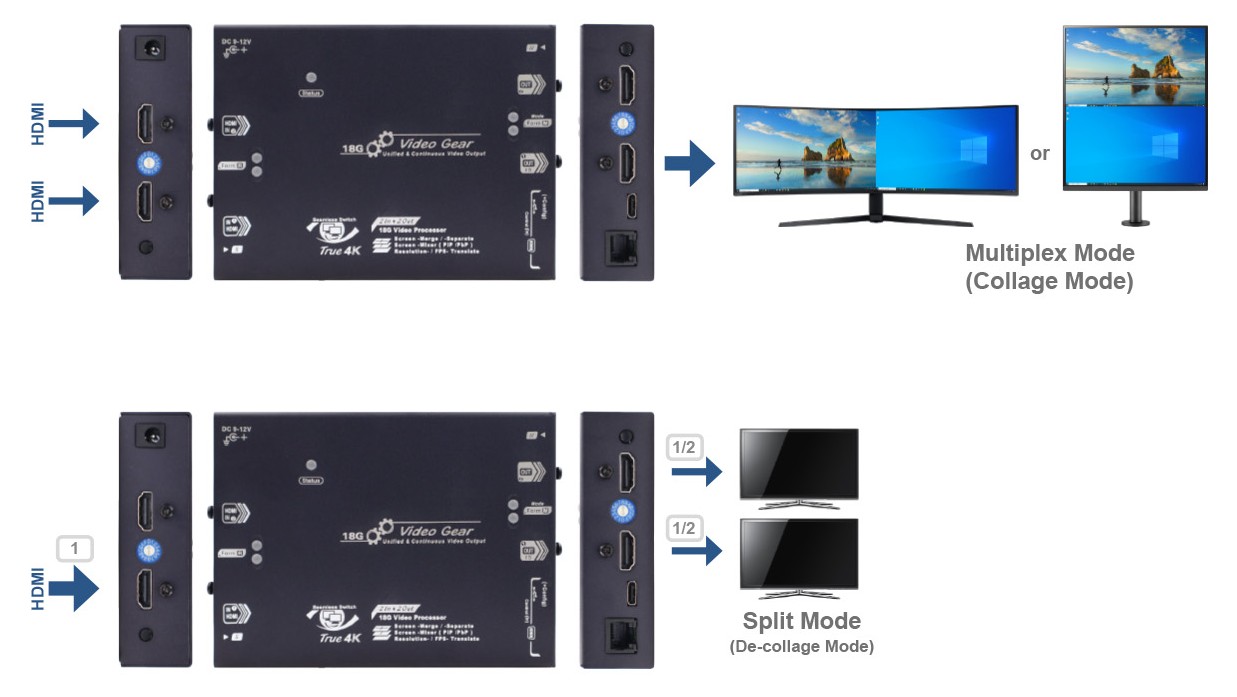

In multiplex mode (collage mode), two video sources are combined into a single image and displayed side-by-side, either horizontally on a 32:9 aspect ratio monitor or vertically on a 16:18 aspect ratio monitor, producing an uncut and undistorted image.

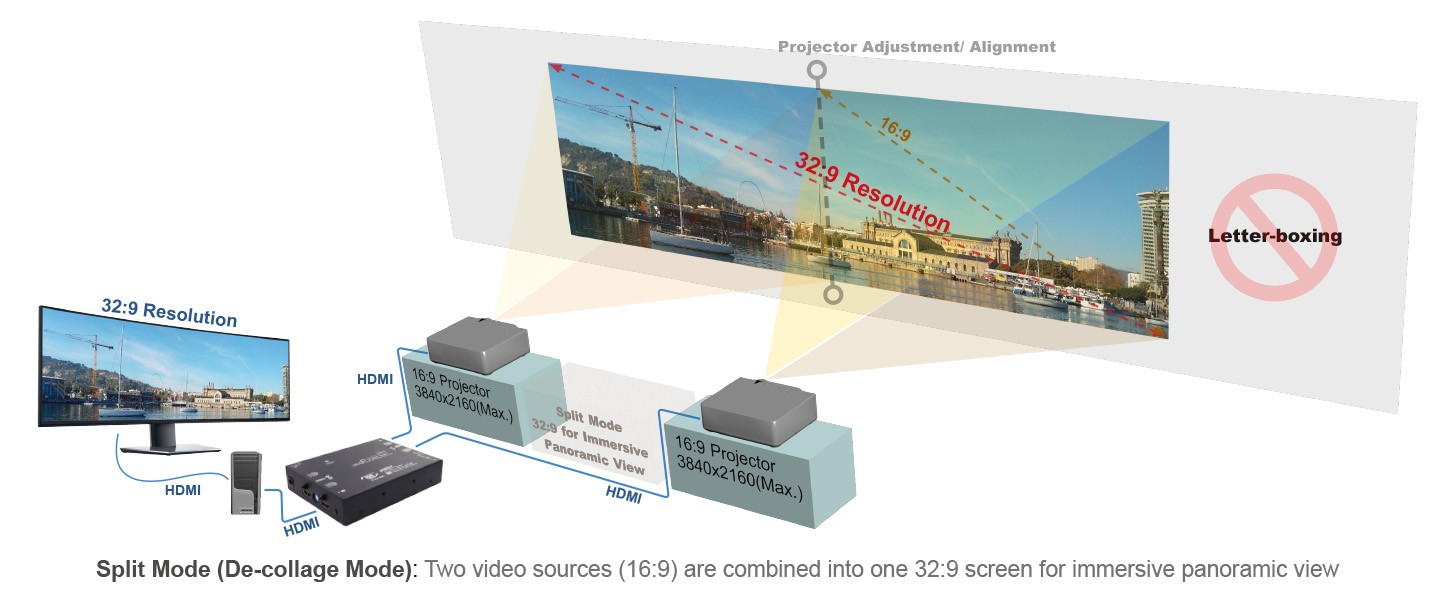

In split mode (de-collage mode), the HDMI source recognizes the EDID configuration of the output devices, and the full HDMI signal is evenly divided into two sections for simultaneous output to two displays.
E.g., Converts a 32:9 monitor into two independent 16:9 displays.
Serial Control
The 4K60 HDMI video processor features a built-in RJ-11 serial interface (for use with a DB9-to-RJ-11 cable) and a USB-C virtual COM port for flexible control. The video processor can be operated from a PC, serial controller, or home theatre control system. Its serial command control functionality is designed for industrial control and communication applications, enabling efficient device management and system integration.
· Mix and process dual 4K@60Hz (4:4:4) video sources via HDMI 2.0 at a cost-effective solution
· Supports popular, ATC, and medical resolutions, including up to 2048×2048 and 1536×2048
· Seamless switching with zero-black and near-instant transition between video sources
· Flexible video processing modes:
o Switch / Splitter Mode with 4K scaling (up/down) for pixel-to-pixel matching and optimized clarity
o Cross-Switch Mode displaying two sources independently on two monitors with video swap support
o Picture-by-Picture (PbP) modes: top–bottom or left–right layouts
o Picture-in-Picture (PiP) mode with adjustable size, position (four corners), and transparency
· Resolution and frame-rate translation, enabling compatibility between higher- and lower-resolution/FPS sources and displays
· Screen merge and separation for dual-video-over-single-link or 4K@60Hz video extension applications
· Integrated HDCP engine emulates display presence to maintain uninterrupted video and enable fast switching
· HDCP management supporting HDCP 2.2, HDCP 1.4, or non-HDCP operation
· EDID management for selecting appropriate display resolutions
· Multiple control methods:
o Front-panel push buttons
o User-defined rotary switch
o Full-function serial control for advanced integration
· Plug-and-Play operation, no driver or software installation required

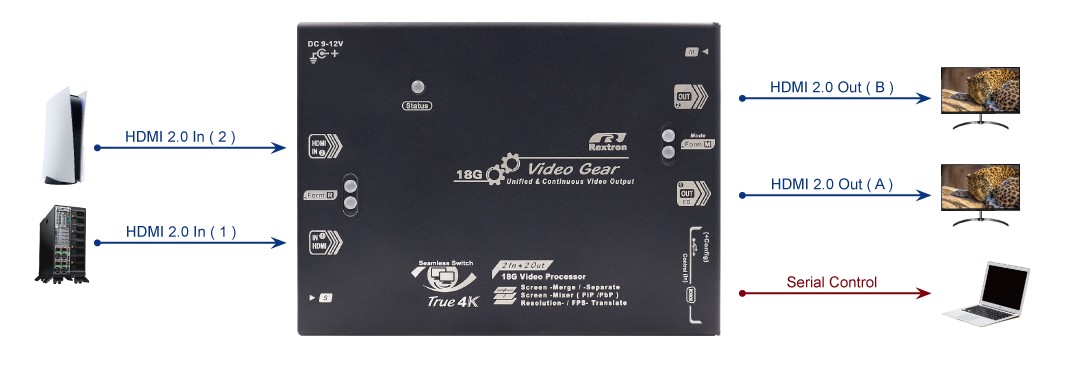

Connection Diagram

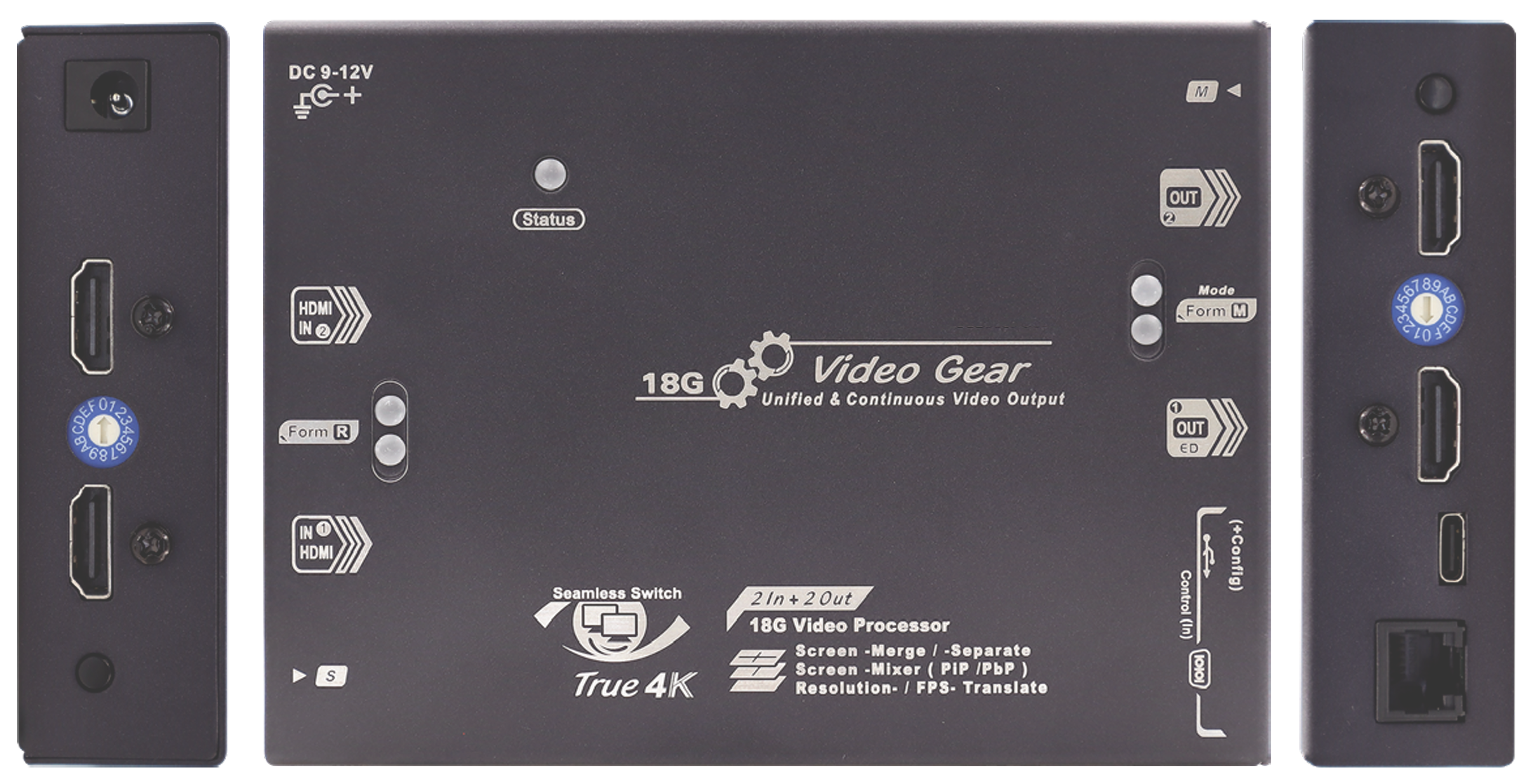

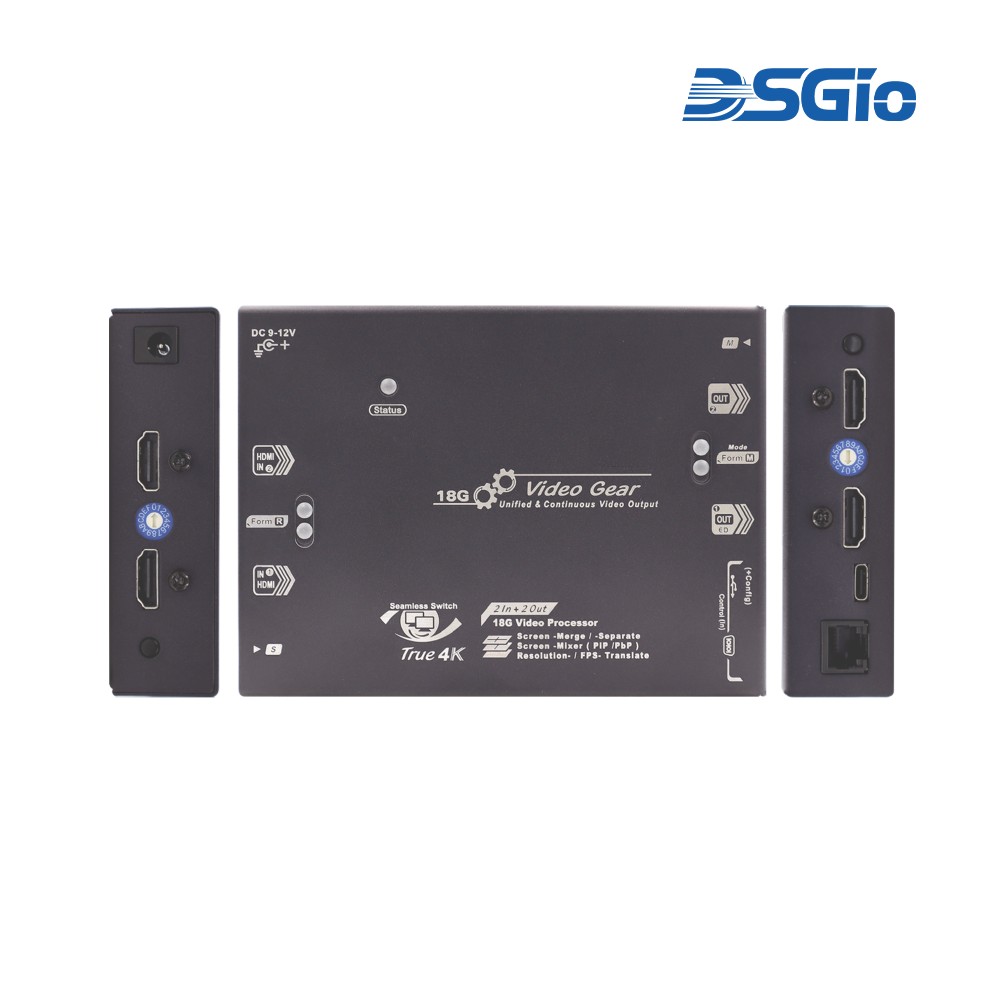

Panel Views:
