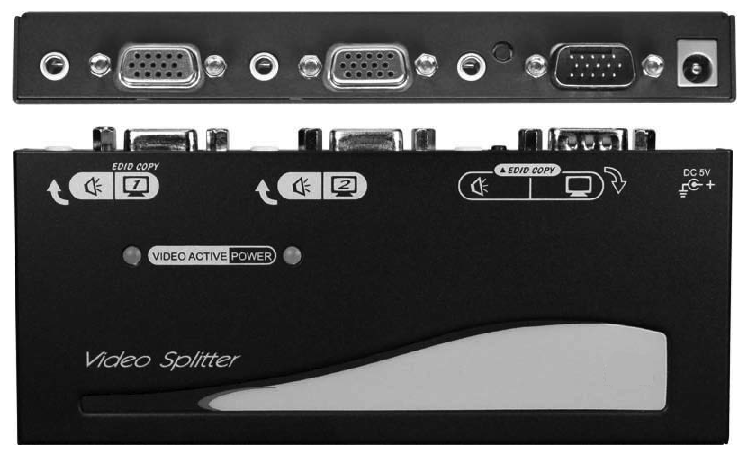

VSP-VA-102
The VSP-VA-102 broadcasts the same video and audio signals from one VGA + Audio source to two VGA + Audio outputs. The broadcast can be expanded significantly by cascading multiple splitters together. No software or interface card installation is required - just connect the cables, power up the system, and you’re ready to display duplicated video on multiple monitors with excellent clarity. Depending on the cable length and quality, the high-bandwidth circuit enables high-resolution VGA signals up to 400 MHz to be displayed on multiple monitors. The EDID Copy function allows the 2-Port VGA Splitter with Audio to either use the EDID information stored in the splitter itself or copy the EDID from a compliant monitor, ensuring accurate output display. This 1-in-2-out VGA video splitter is perfect for scenarios where a single VGA source needs to be distributed to two displays, such as offices, classrooms, or data centers. |
|
· Duplicates one VGA + Audio input to multiple VGA + Audio outputs
· Supports resolutions up to 2048 x 1536
· Effective transmission distance: up to 65 meters (210 ft) using UL-2919 rated VGA cables
· Automatic power-saving mode activates when VGA input is lost
· Compatible with popular screen resolutions including XGA, SXGA, UXGA, WSXGA, Full HD, and WUXGA
· VGA output can be cascaded with additional splitters for expanded display management
· Delivers crisp, clear VGA images
· Allows selection between the default EDID or copied EDID for the connected display device
· EDID Copy function reads and stores EDID information from the connected display to ensure optimal video output
· EDID settings can always be applied to the video source, with a default EDID provided if no display EDID is available

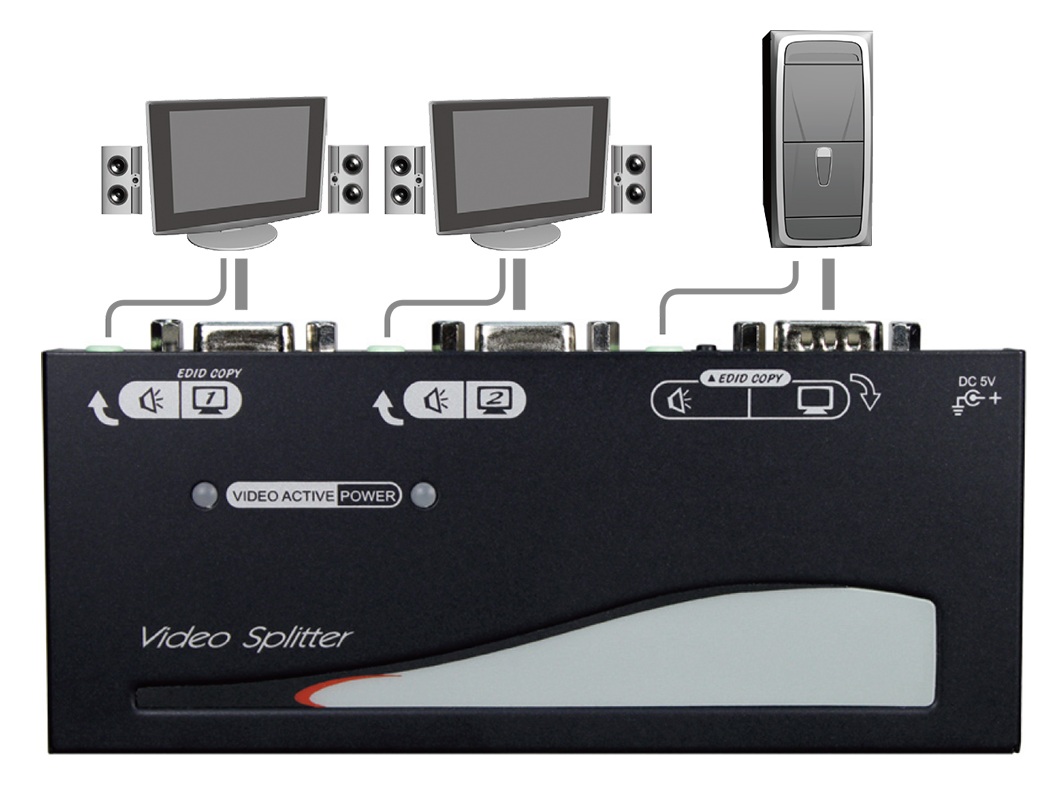

Connection Diagram
