VSP-4KH-1H8H
The VSP-4KH-1H8H distributes HDMI video to 8 TVs or projectors. The output ports support automatic video scaling, ensuring reliable 1080p or 4K output regardless of the video input. This makes it ideal for conference calls, meeting rooms, or showroom applications.

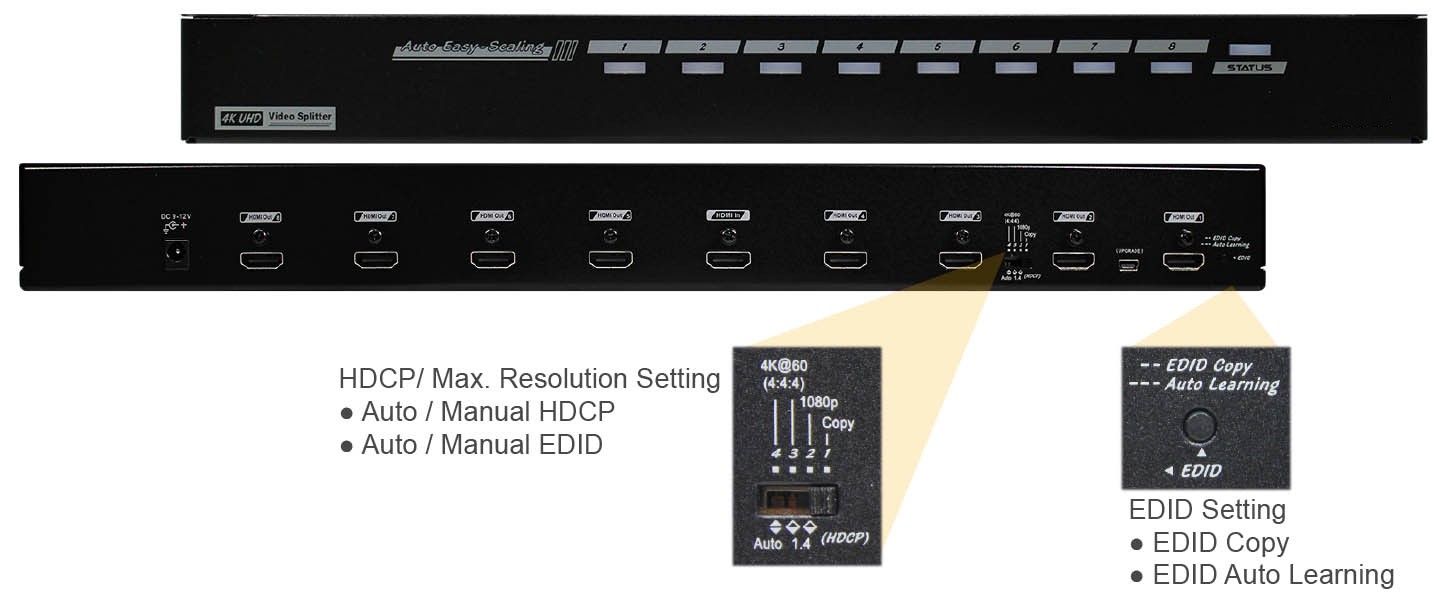

The EDID Auto Learning and EDID Copy functions allow the splitter to either read the necessary EDID information from the unit itself or copy EDID from the EDID-compliant monitor. This ensures accurate output display.
The VSP-4KH-1HxH series of 4K HDMI Splitters broadcast the same HDMI signal from a single HDMI source to 2, 4, 8, or 16 HDMI outputs, depending on the model. The distribution can be expanded significantly when multiple splitters are cascaded. Depending on cable length and quality, this fully HDCP-compliant splitter supports display resolutions up to 4K (3840 × 2160 @ 60Hz, 4:4:4). No software or interface card installation is required—simply connect the cables, power up the system, and enjoy duplicated video across multiple monitors with excellent clarity.
This splitter comes in a rack-mountable form factor, allowing for easy installation and space savings. This flexible solution for accommodating multiple digital video displays is especially suitable for public broadcasting applications.

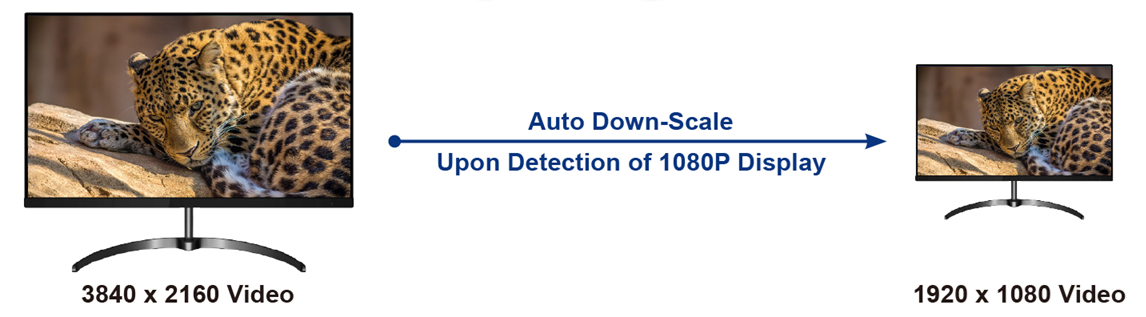

Auto Scaling from 4K60 to 1080P if a 1080P display is detected
· Distributes one HDMI 2.0 video source up to 8 displays
· Supports popular HDMI resolutions up to 4K@60Hz (4:4:4), 18Gbps bandwidth, and HDR10 for vivid, high-dynamic visuals
· Easy-Scaling function automatically scales 4K@60Hz video down to 1080p per connected 1080P display, ensuring pixel-to-pixel matching
· HDMI 2.0, HDCP 2.2 / 1.4 compliant and Blu-ray ready, with HDCP version management for compatibility
· EDID management with Auto EDID and EDID Copy ensures accurate display output
· 8/10/12-bit Deep Colour support for smooth image reproduction
· Cascade operation allows expansion to additional displays while maintaining signal integrity without attenuation or distortion
· Automatic power-save mode when no input signal is detected
· LED indicators for quick signal activity monitoring
· Easy installation with a compact, rack-mountable design, ideal for conference rooms, education, digital signage, gaming, airports, and public broadcasting

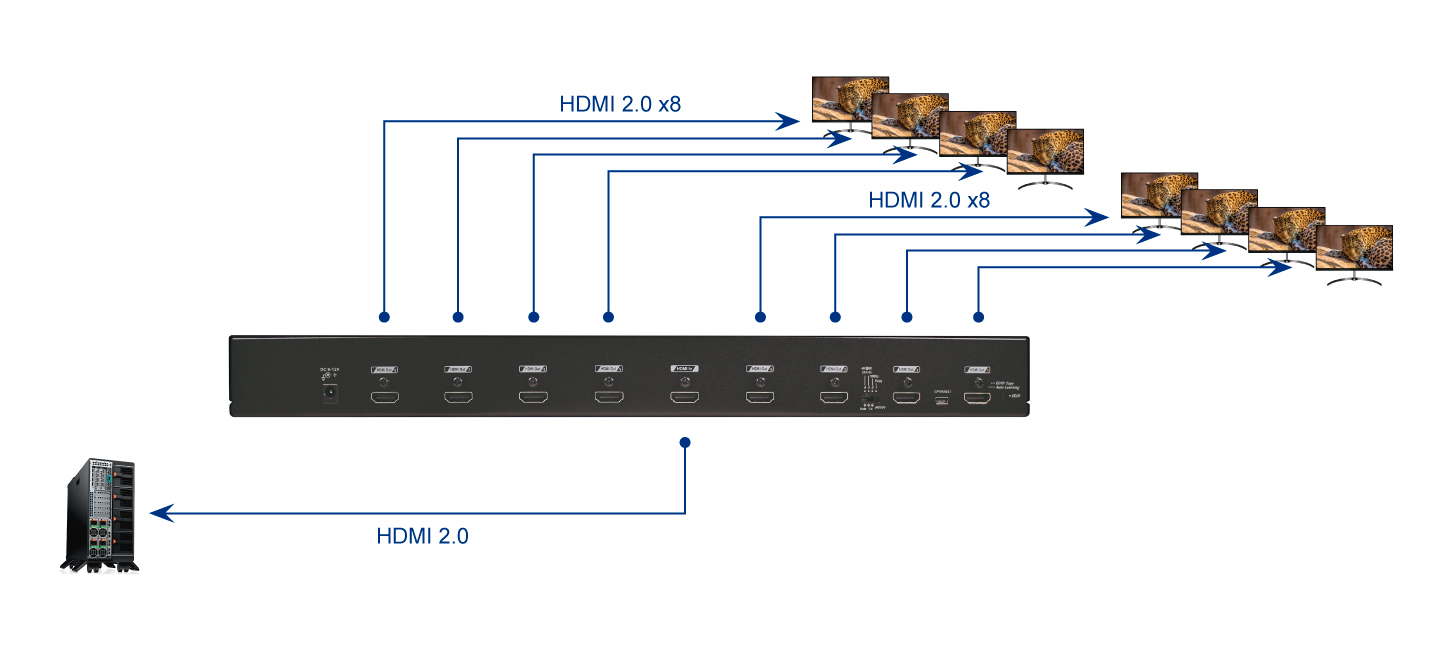

Connection Diagram
