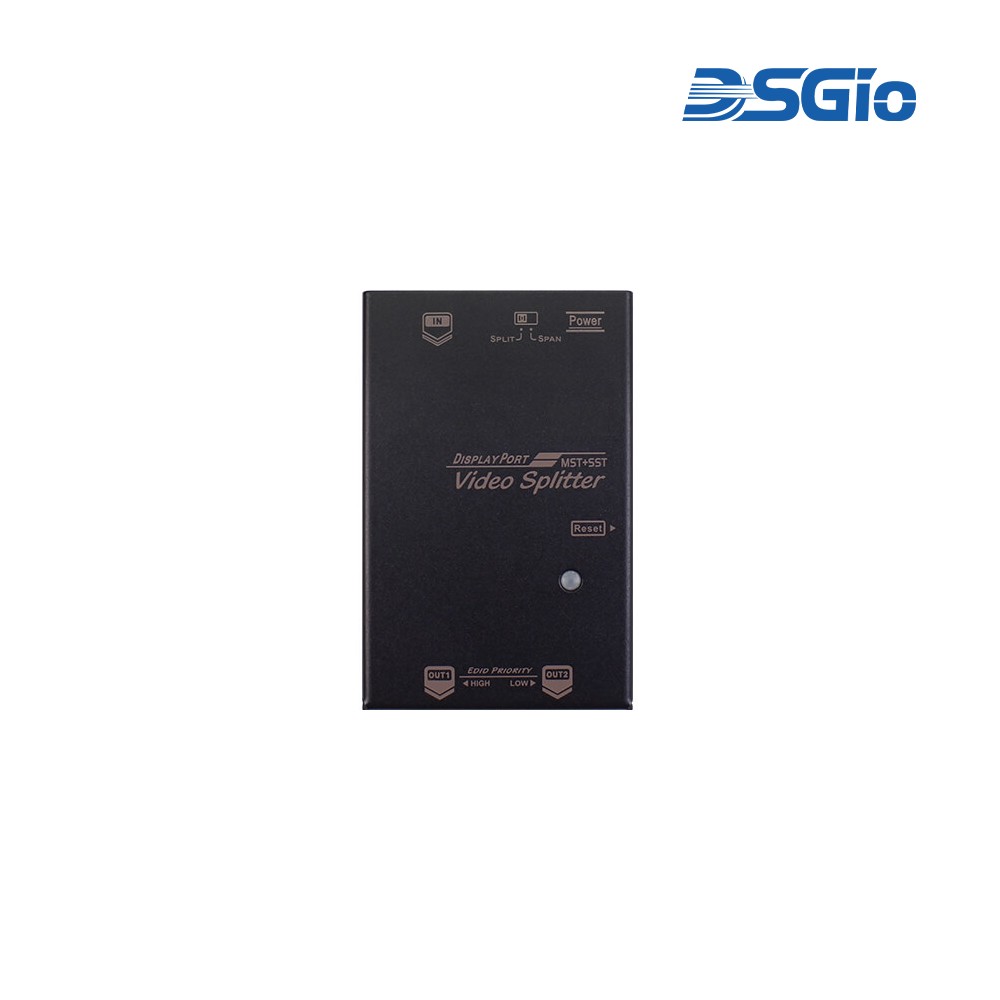

  • VSP-4KD-1D2D Top View

VSP-4KD-1D2D

2-Port True 4K DisplayPort Video Splitter with MST Function, EDID and HDCP



The VSP-4KD-1D2D is a 2-port DisplayPort splitter featuring one DisplayPort input and two DisplayPort outputs, supporting both video split mode and DisplayPort MST Span mode. It supports resolutions up to 4K UHD @ 60Hz (3840 × 2160), including WUXGA, QHD, and Full HD, and is DisplayPort 1.3 and HDCP 1.4 compliant. The DP++ (Dual-Mode DisplayPort) outputs enable direct connection to DisplayPort displays or conversion to HDMI or DVI using passive adapters. Integrated automatic EDID learning ensures correct resolution negotiation and stable, continuous video output, while a metal enclosure and DC 5V (mini-USB) power input support reliable operation in professional AV environments.





  • Category: Video Splitters
  • SKU: VSP-4KD-1D2D
Download to PDF

Overview

Product Features

Connection Diagram

Downloads

2-Port True 4K DisplayPort Video Splitter with MST Function, EDID and HDCP

The VSP-4KD-1D2D, 2-Port True 4K DisplayPort Video Splitter, distributes a DisplayPort video signal to two monitors. Its EDID Learning and Auto EDID Copy functions allow the splitter to either read the required EDID information from the unit itself or copy the EDID from an EDID-compliant monitor, ensuring accurate and stable display output.

The VSP-4KD-1D2D Dual-mode DisplayPort (DP++) supports DisplayPort, DVI, and HDMI monitors, allowing the DisplayPort signal to be converted to DVI or HDMI using a simple cable adapter.

Note: A compatible Dual-Mode DisplayPort (DP++) cable adapter is required for signal conversion.



4K DisplayPort Splitter with DP 1.2 Multi-Stream Transport (MST)

The VSP-4KD-1D2D, 2-Port 4K DisplayPort Splitter, supports DisplayPort MST (Multi-Stream Transport) function, which allows a single DisplayPort source to transmit multiple video streams over one DisplayPort link. The available DisplayPort bandwidth is shared between the connected monitors, which may limit the maximum resolution and refresh rate per display depending on the source and display configuration.

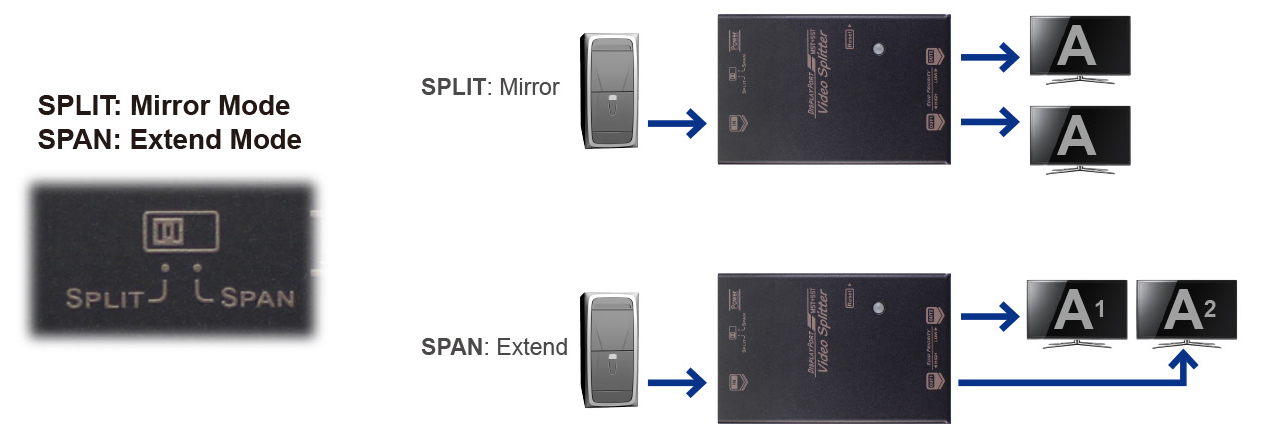

VSP-4KD-1D2D MST Function

Note: Please verify that the graphics card (GPU) in your PC or laptop supports DisplayPort 1.2 MST.




·       Easy and cost-effective solution to duplicate one DisplayPort input to two DisplayPort outputs

·       DisplayPort 1.3 compliant

·       HDCP 1.4 compliant

·       Supports DisplayPort resolutions up to 4K UHD @ 60Hz (3840×2160), QHD (2560×1440), and FHD (1920×1080)

·       Supports over 100 popular display resolutions

·       Accurate and reliable reproduction of digital video signals without attenuation or distortion

·       Output ports support DP++ (Dual-Mode DisplayPort), allowing direct HDMI output via a passive adapter

·       Supports automatic EDID configuration

·       Integrated EDID and HDCP handling for continuous and stable video output

·       Supports DisplayPort MST (Span function) to extend desktop or video content across multiple displays (Span function available on VSP-4KD-1D2D only)



Connection Diagram

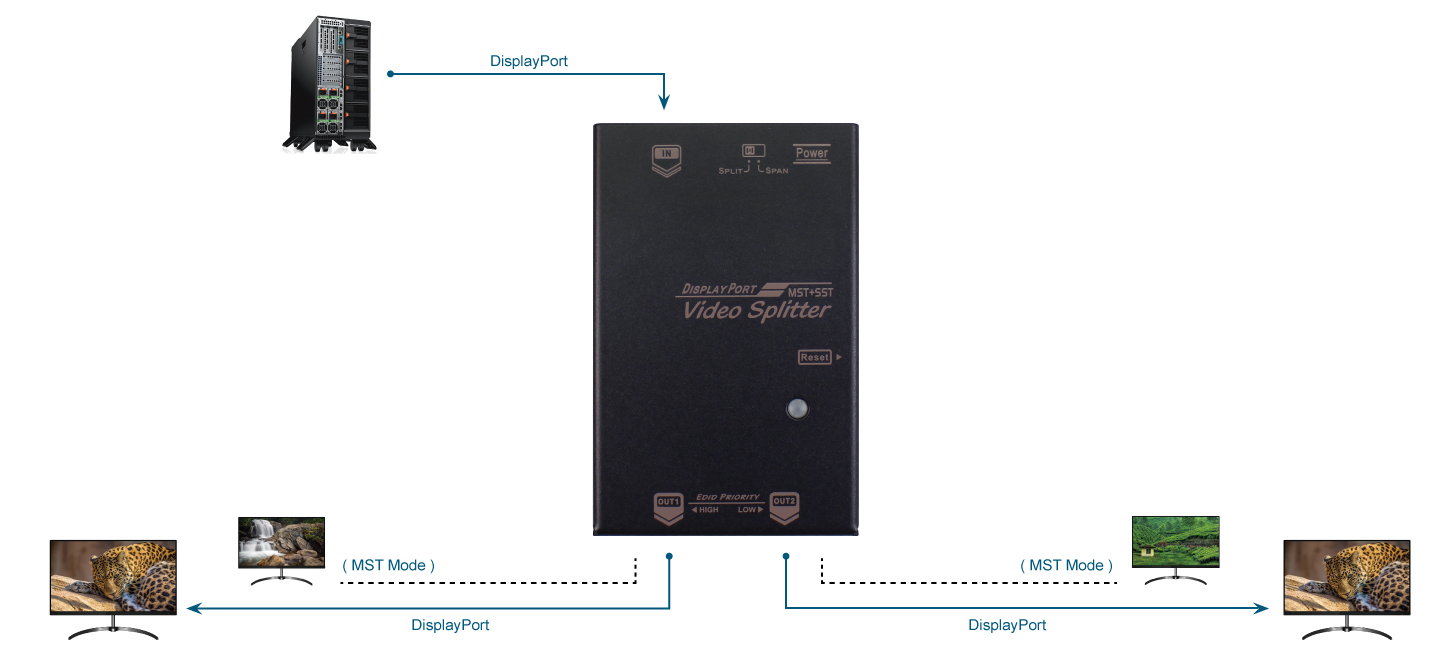

VSP-4KD-1D2D Connection Diagram



Datasheet

VSP-4KD-1D2D(图1)VSP-4KD-1D2D, DP Video Splitter 1 IN 2 OUT Datasheet Rev1.0 PDF
