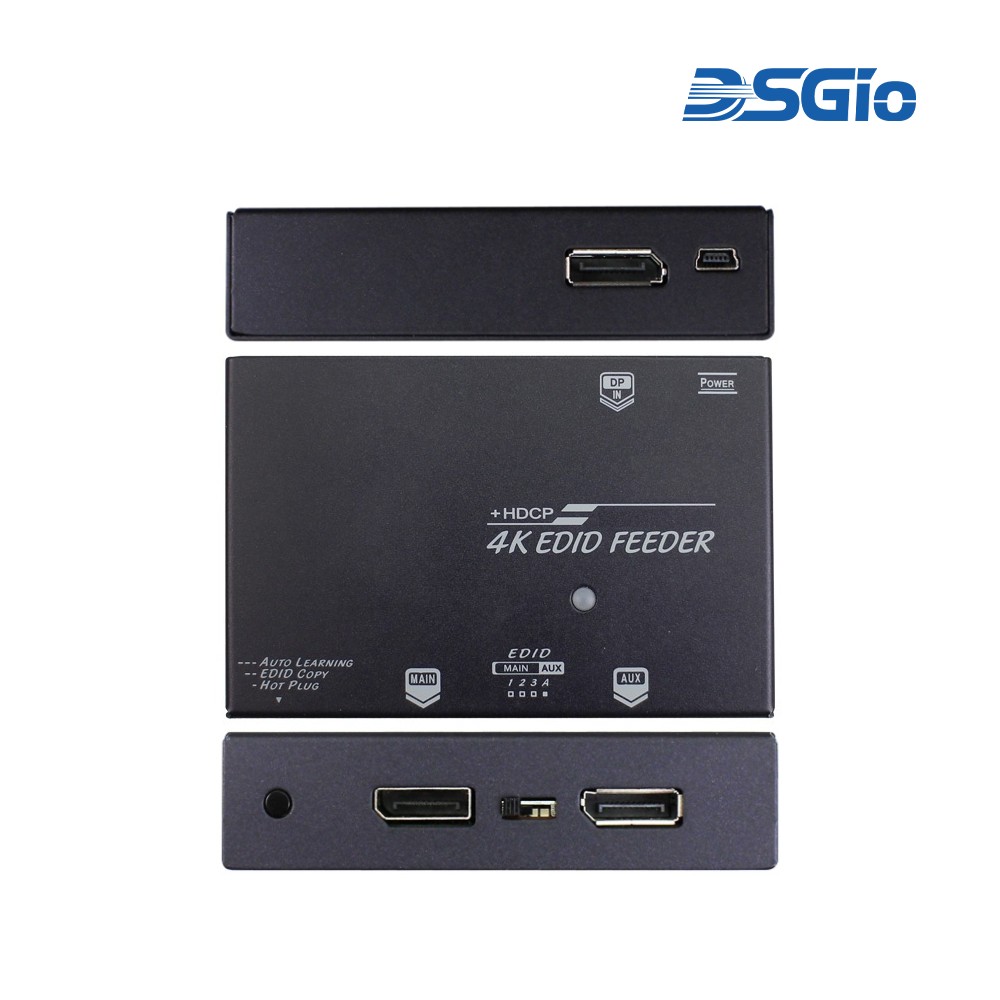

  • VSP-FHD-2DP, Top and Side Views

VSP-FHD-2DP

4K30 DisplayPort EDID/HDCP Feeder with 2 Ports Splitter Function, 1 IN 2 OUT



The VSP-FHD-2DP is a 1x2 DisplayPort splitter and display emulator that distributes a single DisplayPort source to two DisplayPort outputs and supports resolutions up to 4K @ 30Hz. It is HDCP compliant and incorporates a built-in HDCP key to maintain continuous digital video output. With DDC Ghost (EDID Feeder) functionality, the unit can emulate a connected display and supports EDID auto learning and EDID copy from either output, including temporary and permanent EDID configurations with support for restoring multiple EDID profiles. The splitter supports DP++ (Dual-Mode DisplayPort) for compatibility with HDMI or DVI displays via passive adapters and operates without software installation.




  • Category: Video Splitters
  • SKU: VSP-FHD-2DP
Download to PDF

Overview

Product Features

Connection Diagram

Downloads

DisplayPort EDID Feeder with 1x2 DP Splitter Function, 4K@30(4:4:4), HDCP

The VSP-FHD-2DP, DP EDID Feeder, distributes DisplayPort video output to two DP monitors. Its built-in HDCP key acts as a coordinator between the source and display device to ensure uninterrupted digital video streaming.



EDID Feeder: DDC Ghost

The EDID Auto Learning and EDID Copy functions allow the DP Ghost to either read the necessary EDID information from the splitter unit itself or copy EDID from EDID-compliant monitors (DP1 or DP2), ensuring accurate display output. The DP Ghost aggregates EDID feeds from either DisplayPort 1 or DisplayPort 2 compliant monitor and supports both Permanent (EDID Copy) and Temporary (EDID Auto Learning) EDID configurations.

Note: EDID Auto Learning records EDID information but data will be erased after hot-plugging or power-off.

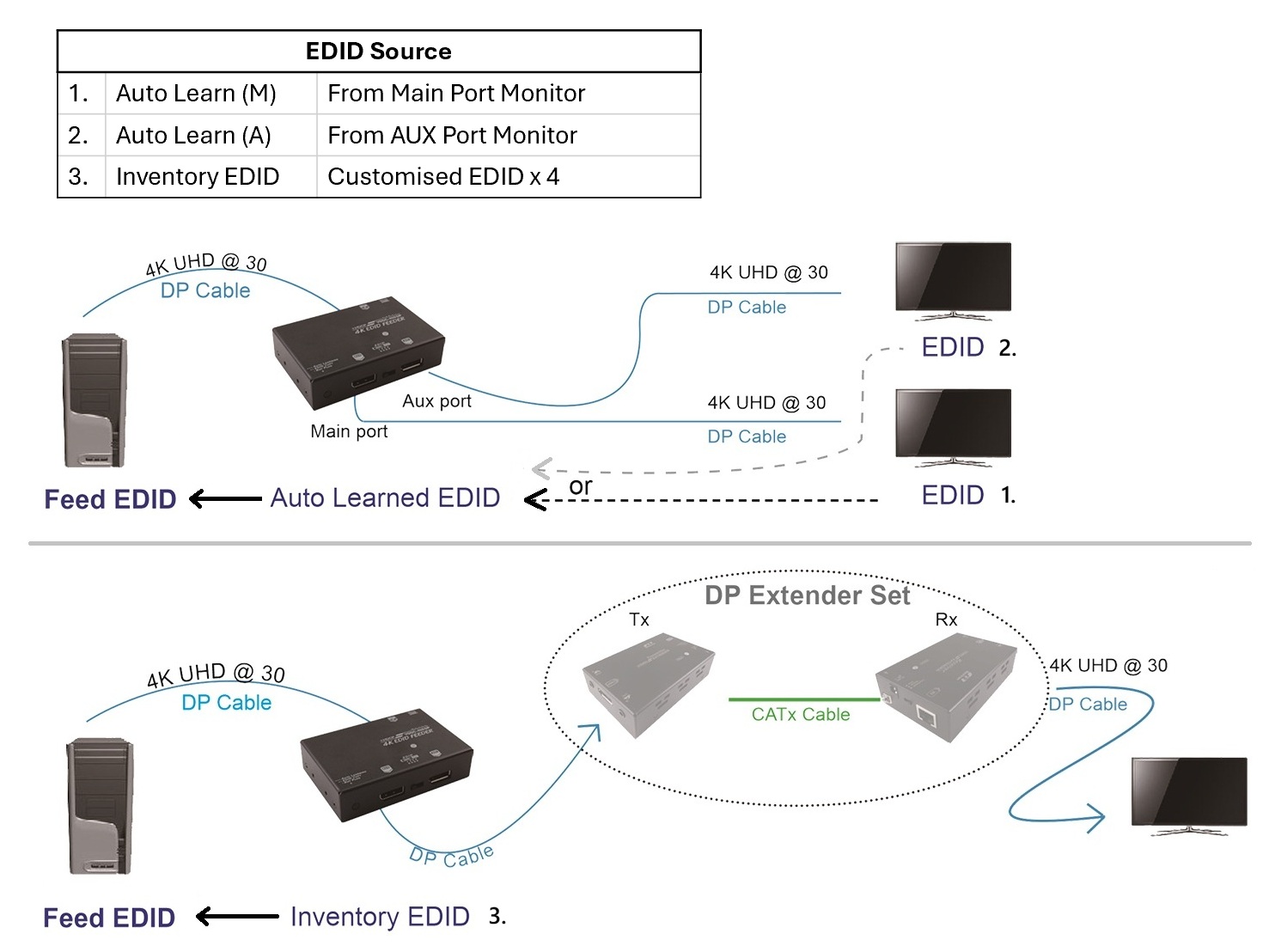

 VSP-FHD-2DP EDID Management


·       2-Port 4K30Hz DisplayPort Splitter with built-in EDID/HDCP engine

·       EDID Emulator (DDC Ghost) prevents computers from disabling inactive DisplayPort ports

·       EDID Copy/Auto Learn: copy EDID from connected displays or auto-configure for continuous video output

·       Restore up to 4 sets of customised EDID information

·       HDCP key/engine ensures smooth and optimum video display

·       Supports DP++ for broader compatibility and applicability

·       Supports resolutions up to 4K UHD @30Hz (3840 × 2160) and over 100 popular resolutions

·       Plug-and-play design, works with any operating system, no software installation required

·       Durable, economical, and dependable design



Connection Diagram

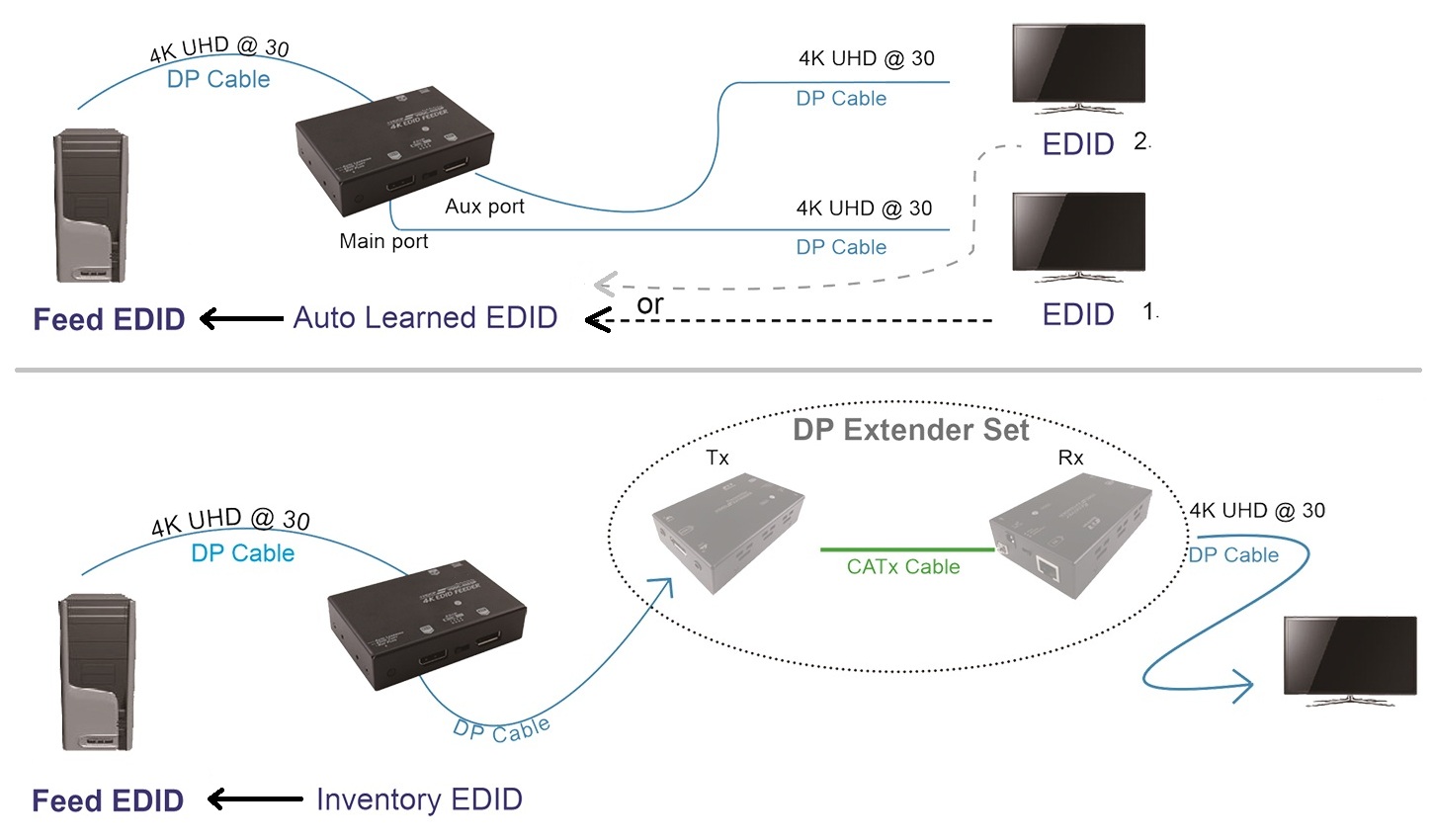

VSP-FHD-2DP Connection Diagram


Datasheet

VSP-FHD-2DP(图1)VSP-FHD-2DP, Video Splitter Datasheet Rev1.0 PDF



Manual

VSP-FHD-2DP(图1)VSP-FHD-2DP, Manual VSP-FHD-2DP-UM01.1 PDF
