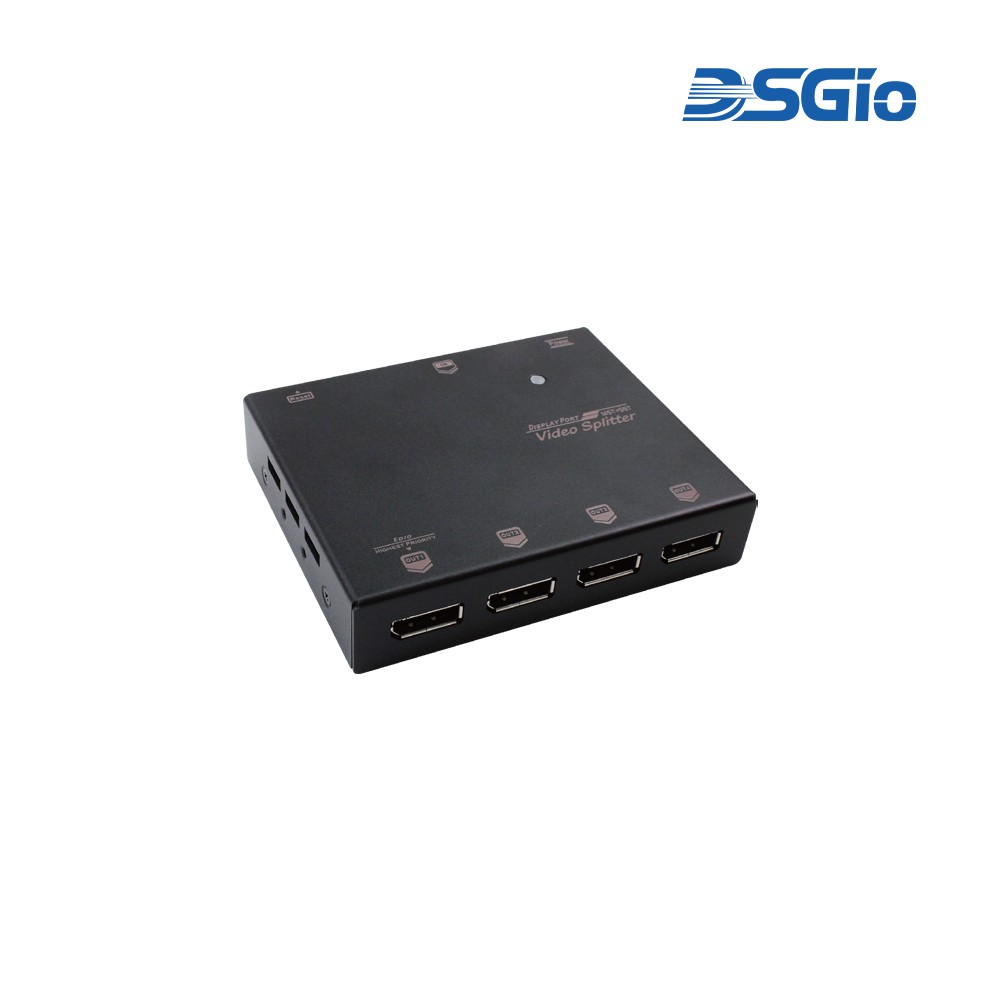

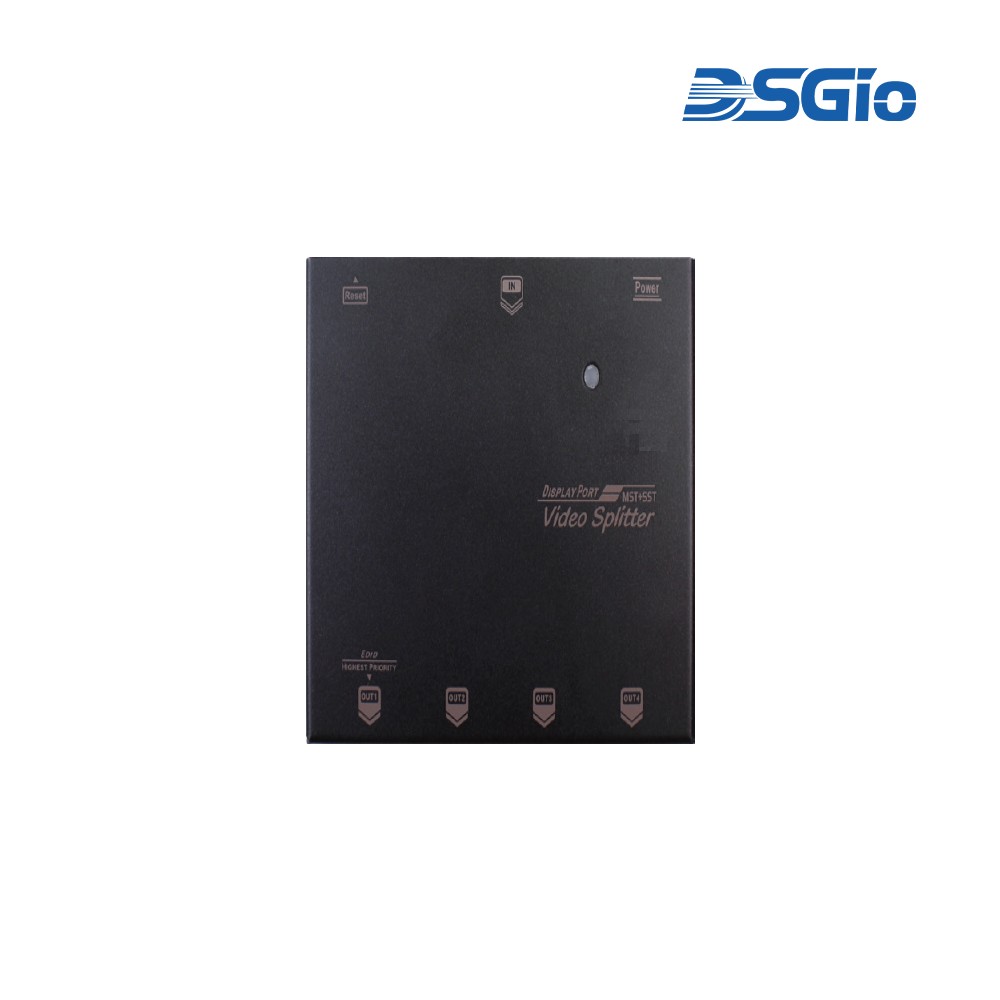

VSP-4KD-1D4D
4 Ports True 4K DisplayPort Video Splitter with EDID and HDCP

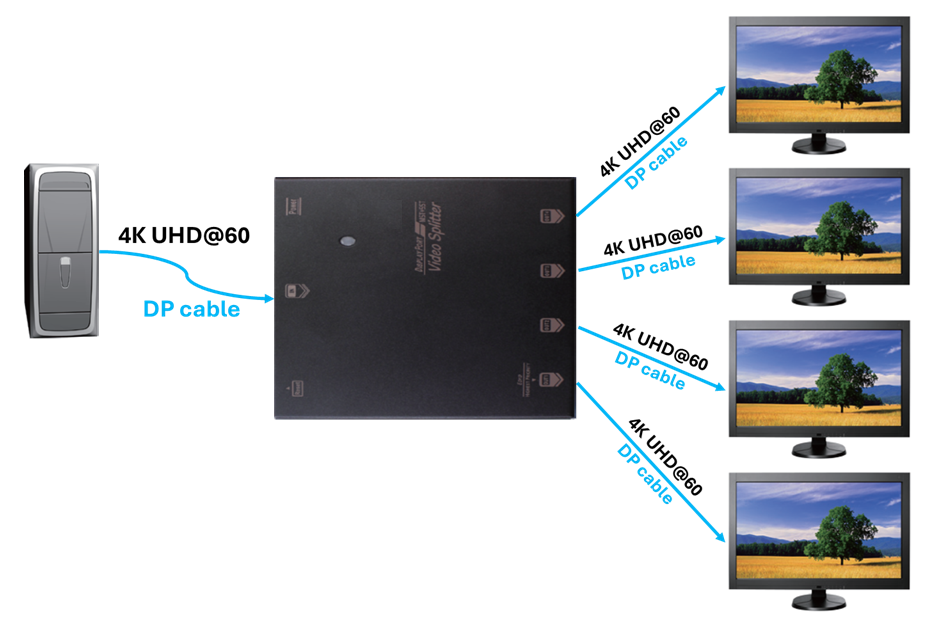

The VSP-4KD-1D4D is a 4-port True 4K DisplayPort video splitter that distributes one DisplayPort input to four monitors. EDID Auto Learning and EDID Copy functions allow the splitter to either read the required EDID information from the unit itself or copy the EDID from an EDID-compliant monitor, ensuring accurate display output.
The splitter Dual-Mode DisplayPort (DP++), enabling compatibility with DisplayPort, DVI, and HDMI monitors. The DP signal can be converted to DVI or HDMI through a simple cable adapter.
Note: A compatible Dual-Mode DisplayPort (DP++) cable adapter is required for signal conversion.
· Easy and cost-effective solution to duplicate one DisplayPort input to four DisplayPort outputs
· DisplayPort 1.3 compliant
· HDCP 1.4 compliant
· Supports DisplayPort resolutions up to 4K UHD @ 60Hz (3840×2160), QHD (2560×1440), and FHD (1920×1080)
· Supports over 100 popular display resolutions
· Accurate and reliable reproduction of digital video signals without attenuation or distortion
· Output ports support DP++ (Dual-Mode DisplayPort), allowing direct HDMI output via a passive adapter
· Supports automatic EDID configuration
· Integrated EDID and HDCP handling for continuous and stable video output

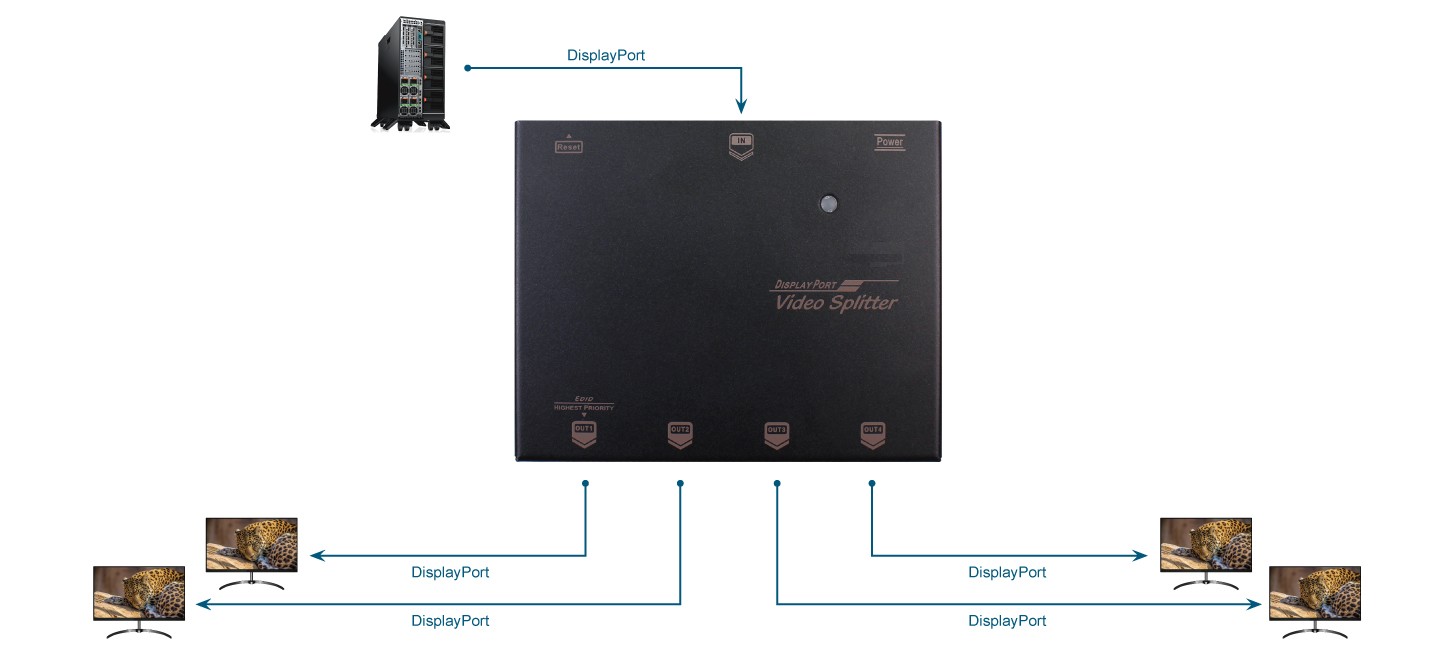

Connection Diagram
