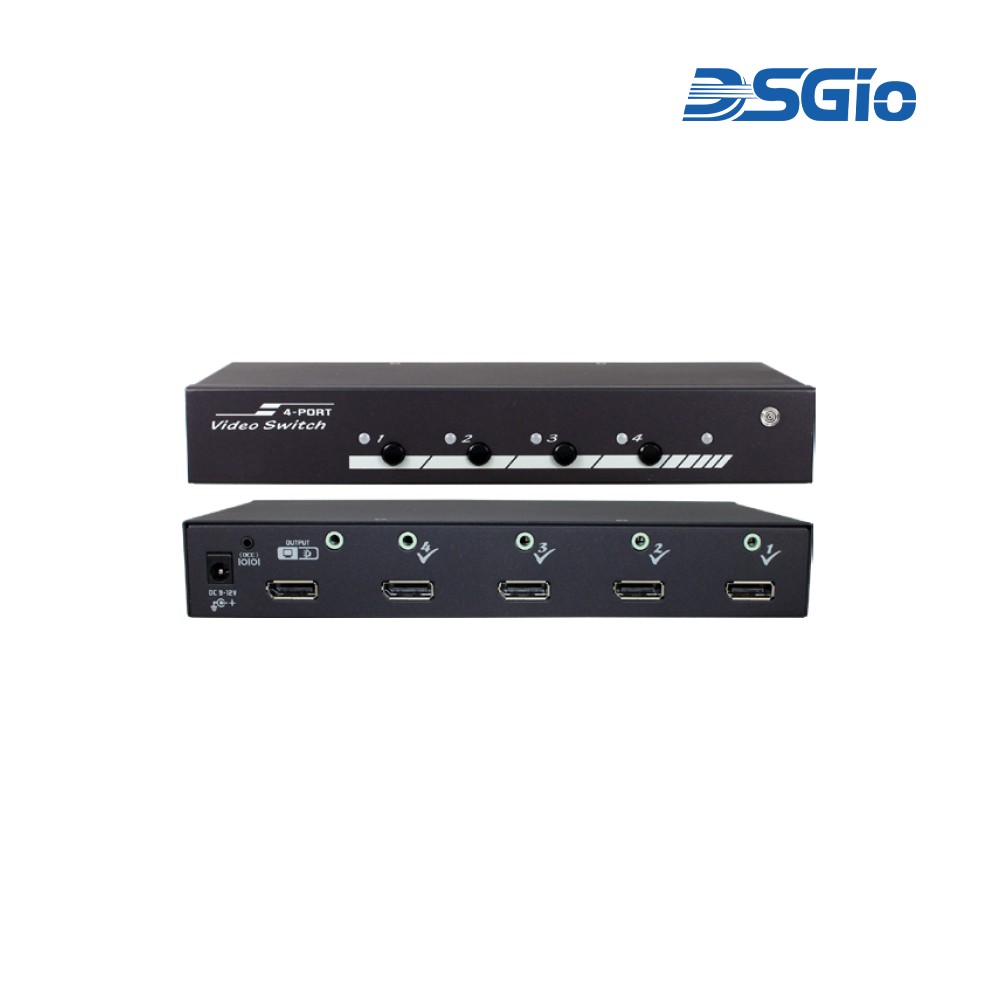

VSW-DP14-8K41
4-Port 8K DisplayPort 1.4 Video Switch with IR & Serial Control
VSW-DP14-8K41 8K DisplayPort 1.4 Video Switch is a 4-port DisplayPort 1.4 switch with IR and RS-232 serial control, allowing users to select one of four DisplayPort sources and route it to a single display device (monitor or projector). Input selection can be performed via the front panel push buttons, IR remote control (up to 5 meters), or serial commands.
The unit supports DisplayPort 1.4 (HBR3) with a maximum bandwidth of 32.4 Gbps and complies with HDR10, HDCP 2.2 / 1.4, and DisplayPort Multi-Stream Transport (MST) pass-through. No software or driver installation is required; operation is plug-and-play after power connection.
The switch supports video resolutions up to 7680 × 4320 @ 60Hz (4:4:4) with DSC, 5120 × 1440 @ 120Hz (4:4:4), 3840 × 2160 @ 144Hz (4:4:4), and 3840 × 2160 @ 120Hz (4:4:4). EDID pass-through ensures compatibility with 16:9, 21:9, and 32:9 aspect ratio displays.
The VSW-DP14-8K41 is suitable for high-resolution AV systems, gaming setups, professional content creation, and CAD/CAM workstation environments.
· Allows users to select 1 DisplayPort video input from 4 DisplayPort sources
· Supports DisplayPort 1.4 with resolutions up to:
o 7680 × 4320 @ 60Hz (4:4:4)
o 5120 × 1440 @ 120Hz (4:4:4)
o 3840 × 2160 @ 144Hz (4:4:4)
· Supports variable refresh rate (VRR) technologies and high refresh rates
· Supports HDR10 for enhanced dynamic range and improved lighting and shadow detail
· Provides 3 control methods:
o Front panel push button
o IR remote control
o Serial control
· LED indicators show the status of video inputs
· HDCP 2.2 / 1.4 compliant
· DisplayPort Multi-Stream Transport (MST) compliant (pass-through)
· Suitable for gaming, media, medical, education, control center, and military applications

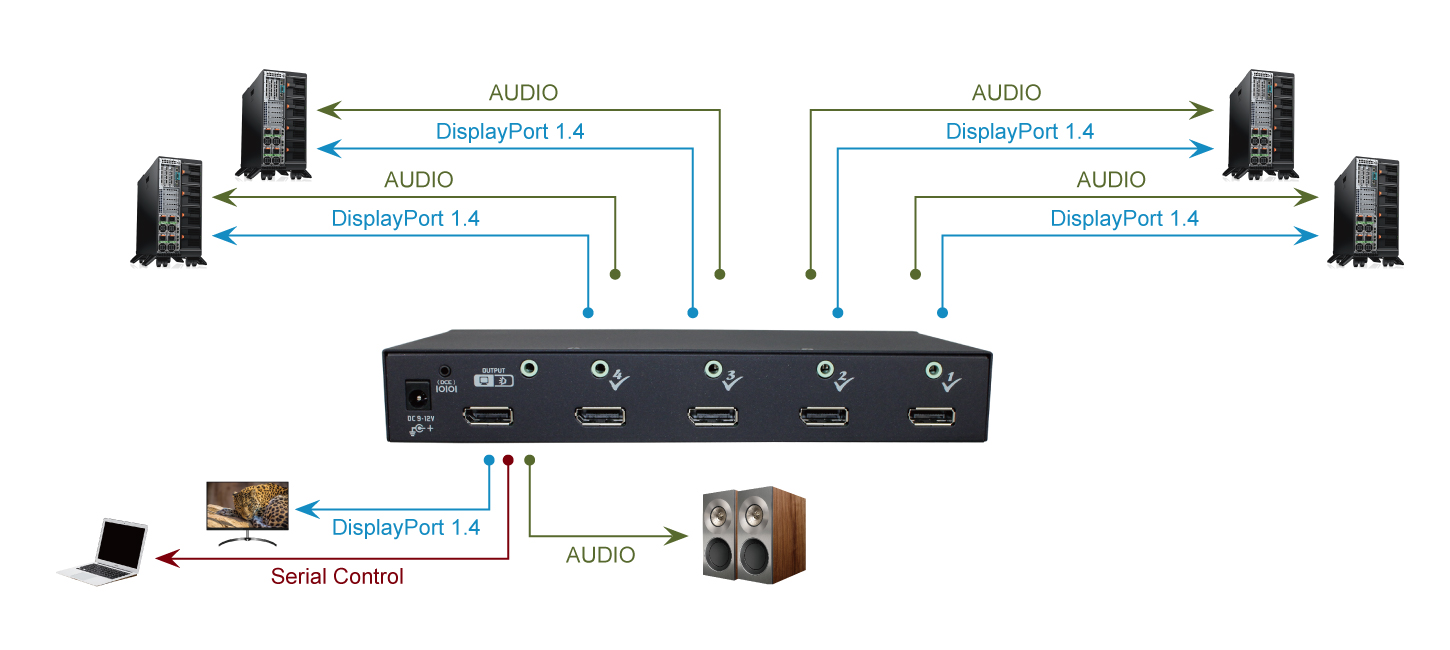

Connection Diagram
