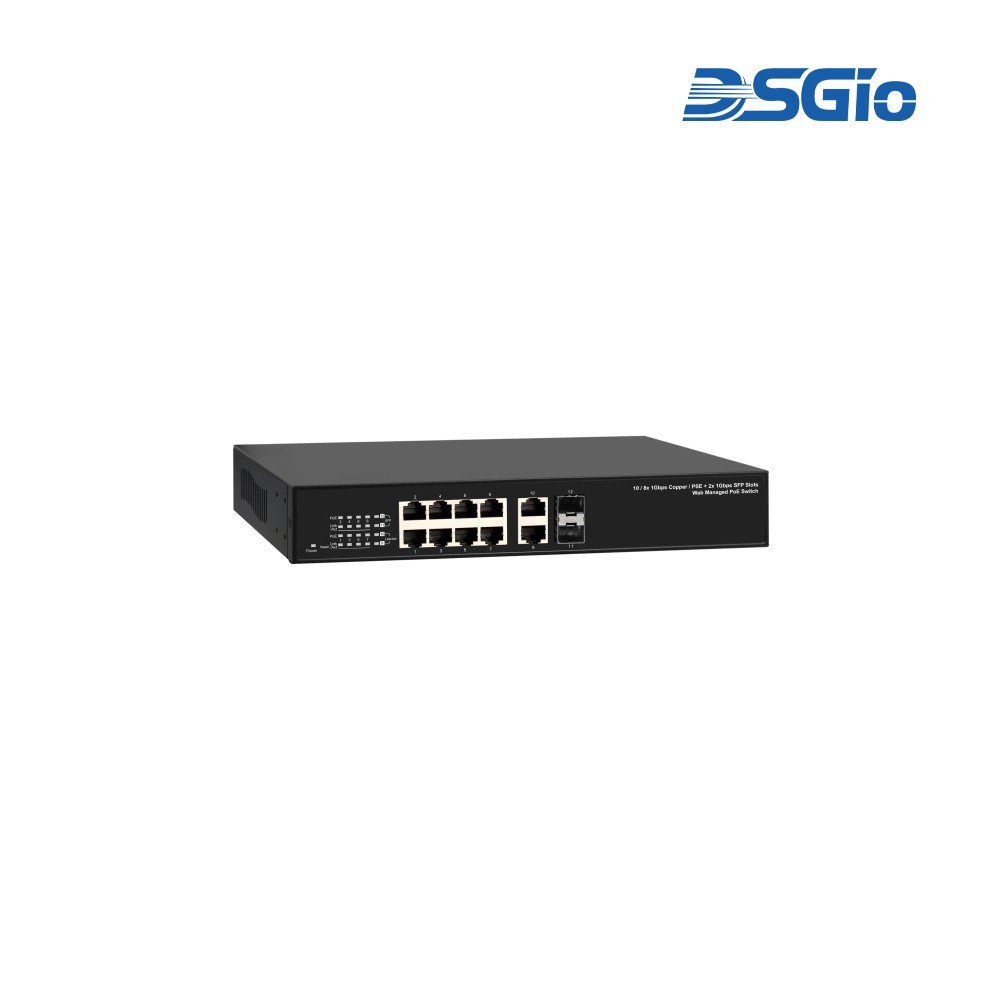

WMPS-8P41GM, Web Smart PoE Switch
Web Smart PoE Switch – 10 x 10/100/1000Mbps RJ45 (8AT), and 2 x 1Gbps SFP Ports
( Model Options: PoE Budget 180W or 240W )
The WMPS-8P41GM is a Web Smart Managed Gigabit PoE Switch equipped with eight 10/100/1000BASE-T IEEE 802.3af/at PoE+ PSE ports, two 10/100/1000BASE-T Ethernet ports, and two 1000BASE-X SFP ports for copper and fiber network connectivity. The switch provides a 24Gbps switching capacity with a forwarding rate of 17.856Mpps, an 8K MAC address table, and a 4Mbit packet buffer to support wire-speed Layer 2 packet forwarding. It supports IEEE 802.1Q VLAN, static link aggregation, IGMP Snooping v1/v2 with IGMP Querying, IEEE 802.1p and DSCP QoS, LLDP, and port mirroring for traffic management and network monitoring. Each PoE port capable of delivering up to 30W in accordance with IEEE 802.3at, with configurable per-port PoE enable/disable, PD detection, and power classification. Additional features include 9KB jumbo frame support, IEEE 802.3x flow control, IEEE 802.3az Energy-Efficient Ethernet, firmware upgrade via HTTP, and configuration backup and restore through the web management interface. The switch is designed for integrated Layer 2 Ethernet networks requiring essential management, Power over Ethernet, and Gigabit copper and fiber connectivity.
Application Examples:
Web Smart and L2 PoE Switch Applications v1.0 PDF
- Category: Web Smart Switches
- SKU: WMPS-8P41GM-250W or WMPS-8P41GM-310W
INTRODUCTION

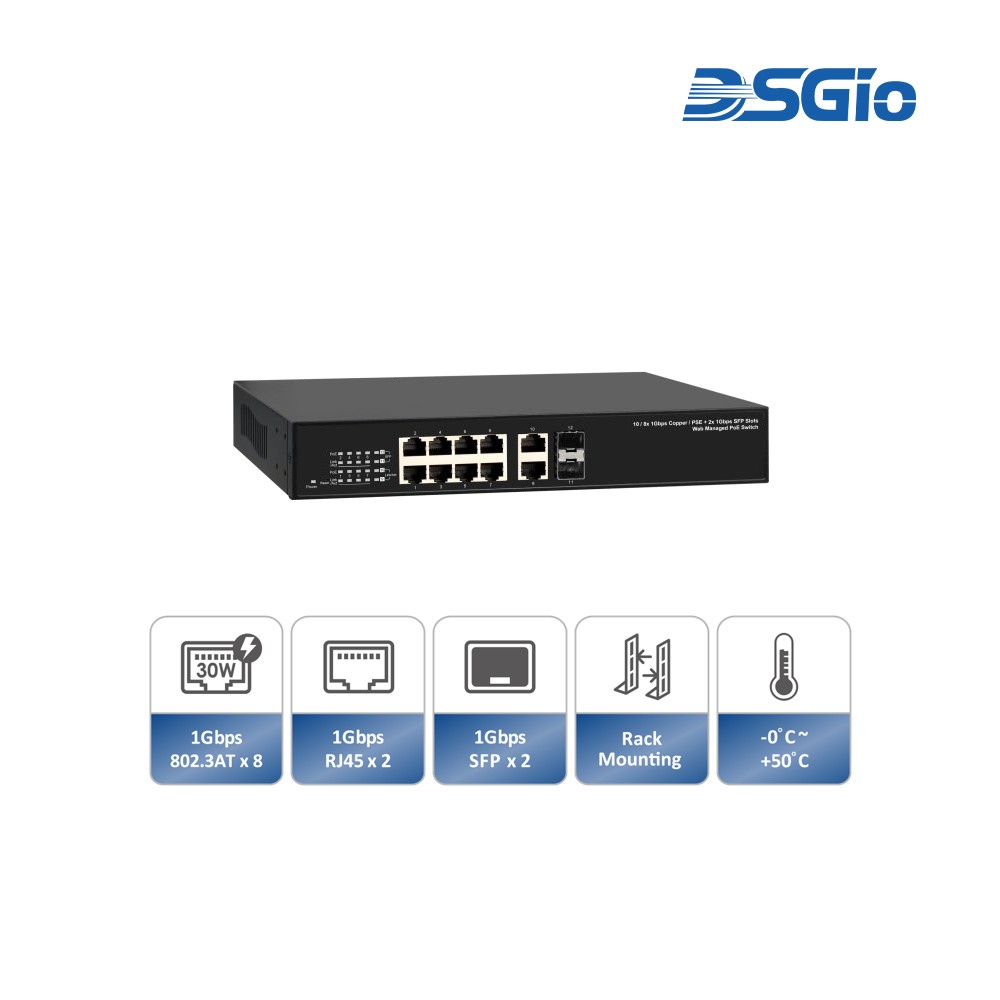

The DSGio WMPS-8P41GM Web Smart PoE Switch is a rack-mountable web-managed switch featuring 8 × 10/100/1000Mbps PoE+ PSE ports, 2 × 10/100/1000Mbps Ethernet ports, and 2 × 1GbE SFP slots. It supports the IEEE 802.3at PoE standard, providing up to 30W per port while delivering both power and data over standard Ethernet cables to powered devices such as IP cameras, wireless access points, and VoIP phones.
Designed for small- to medium-sized networks, the switch offers essential L2 management features including VLAN, QoS, LLDP, and web based management functions. Housed in a compact 11-inch metal chassis, it can be installed in a standard 19-inch equipment rack using the included rack-mount brackets or mounted underneath a desk for flexible deployment.
The switch automatically detects connected devices operating at 10/100/1000Mbps and supports both full- and half-duplex operation. Its intuitive web-based management interface enables administrators to configure VLANs, prioritize network traffic, aggregate links, manage bandwidth usage, and secure the network with password-protected access.
By utilizing Power over Ethernet (PoE), the switch simplifies installation and reduces deployment costs by eliminating the need for separate power outlets or AC adapters for connected devices. It is an efficient and cost-effective solution for powering and connecting network devices in a wide range of applications.
SPECIFICATIONS
Interface | ||
10M/100M/1000Mbps RJ45 Port | 10 | |
1000BASE-SX/LX SFP Port | 2 | |
System Performance | ||
Packet Buffer | 4Mb | |
MAC Address Table Size | 8K | |
Jumbo Frame | 9KB | |
Switching Capacity | 24Gbps | |
Forwarding Rate (64-byte) | 17.856Mpps | |
PoE Features | ||
PoE Power Output | Per Port: IEEE 802.3af/at | |
Number of PSE Port | 8 | |
PoE Mode | Port 1-4: End-Span, Mode A MDIX: 1/2(-), 3/6(+) Port 5-8: End-Span, Mode A: 1/2(+), 3/6(-) | |
Max. Power Consumption | 250W / 310W | |
Max. PoE Budget | 180W / 240W | |
External/Internal Power | Internal Power | |
Power Feeding Detecting Capability on PD | ● | |
PD Classification | ● | |
PoE Scheduling | ● | |
Power Management (Per Port) | Enable/Disable PoE Per Port | ● |
Overloading Protection | ● | |
L2 Features | ||
Auto-Negotiation | ● | |
Auto MDI/MDIX | ● | |
Flow Control (Duplex) | 802.3X (Full) | ● |
Back-Pressure (Half) | ● | |
VLAN | VLAN Group | 16K |
Tagged Based | ● | |
Port-Based | ● | |
Link Aggregation | Static Trunk | ● |
IGMP Snooping | IGMP Snooping v1/v2 | ● |
IGMP Querying | ● | |
QoS Features | ||
Number of Priority Queue | Up to 8 queues/port | |
CoS | IEEE 802.1p | ● |
IP DSCP | ● | |
Management | ||
Web Based Management | ● | |
Firmware Upgrade via HTTP | ● | |
Configuration Download / Upload | ● | |
Ping | ● | |
LLDP | ● | |
Port Mirroring | ● | |
Physical Characteristics | ||
Dimension (W x D x H) | 266 x 160 x 44 mm | |
Reset Button | 1 Reset Button | |
LED | Power, PoE, Link/Act. | |
Cooling | Fan Cooling | |
Enclosure | Metal | |
Installation | Desktop / Rackmount | |
System Power Requirement | ||
System Power Input | 100-240V~, 50/60Hz, 5.0A Max. | |
Max. System Power Consumption | 12W | |
PoE Budget Information | ||
Power Supply (250W) | PoE Budget 180W | |
Power Supply (310W) | PoE Budget 240W | |
Environment Limits | ||
Operating Temperature | 0 ~ 50°C | |
Storage Temperature | -20 ~ 80°C | |
Operating Humidity | 10 ~ 90% (non-condensing) | |
Storage Humidity | 10 ~ 90% (non-condensing) | |
Protection | ||
ESD | DC Contact 4KV, Air 8KV | |
Surge | AC Line to Line 1KV, Line to Ground 2KV | |
Standard | ||
IEEE 802.3 – 10Base-T | ● | |
IEEE 802.3u – 100Base-TX | ● | |
IEEE 802.3ab – 1000Base-T | ● | |
IEEE 802.3z – 1000Base-SX/LX | ● | |
IEEE 802.3af Power over Ethernet (PoE) | ● | |
IEEE 802.3at Power over Ethernet (PoE+) | ● | |
IEEE 802.3az – Energy Efficient Ethernet (EEE) | ● | |
IEEE 802.3x – Flow Control | ● | |
IEEE 802.1Q – VLAN | ● | |
IEEE 802.1p – Class of Service | ● | |
IEEE 802.1ab – LLDP (Link Layer Discovery Protocol) | ● | |
· 8 × 10/100/1000Base-T PoE+ ports, 2 × Gigabit Ethernet ports, and 2 × 1GbE SFP slots
· IEEE 802.3at PoE+ compliant, delivering up to 30W per port
· Compact 11-inch rack-mount metal enclosure
· Web-based configuration and management interface
· Integrated Layer 2 switching features
· Supports up to 9KB jumbo frames
· IEEE 802.3az Energy-Efficient Ethernet (EEE) support
